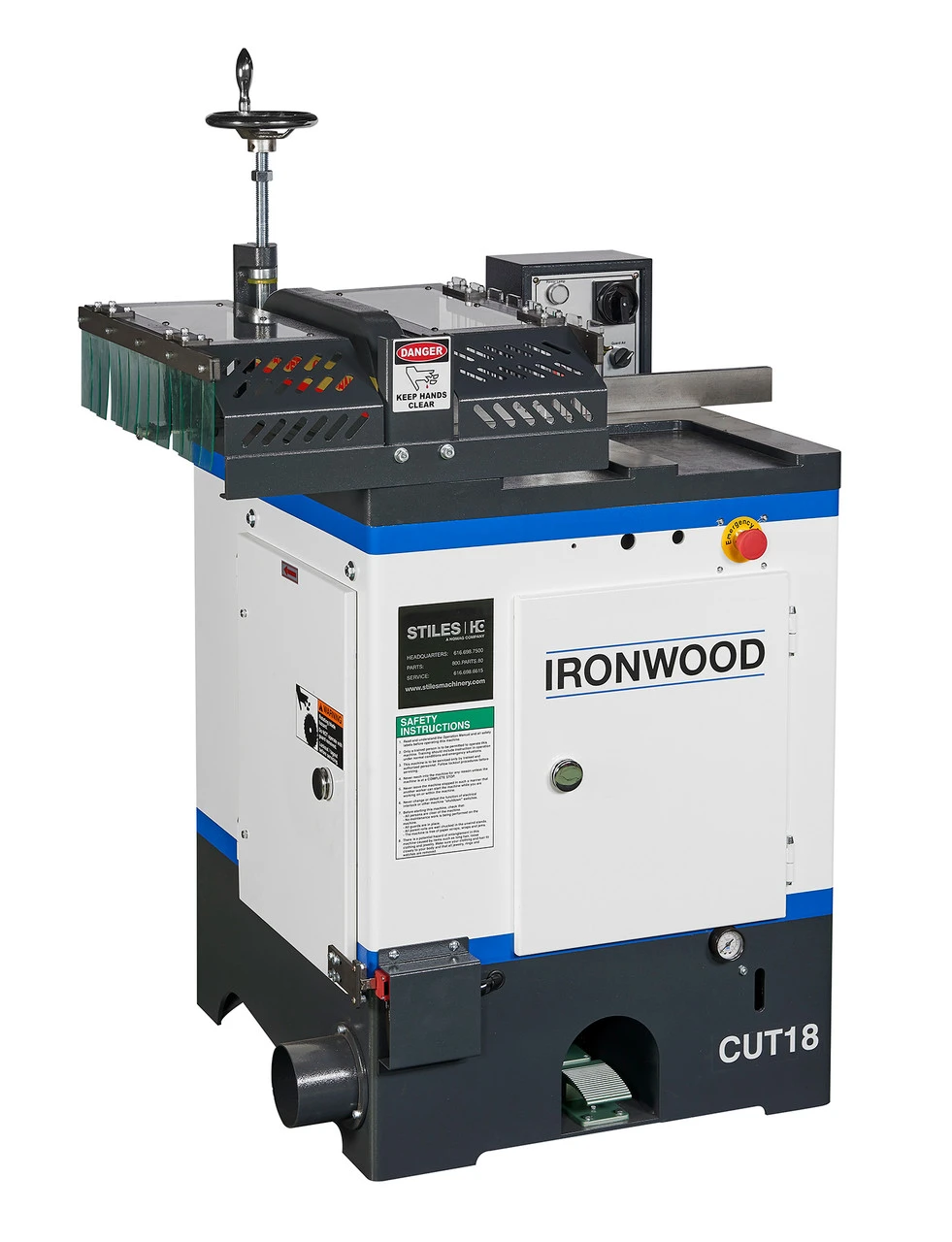

Stiles Machinery Ironwood 230V 18” Cut Off Saw CUT18L/R

The Ironwood CUT18 Cut-off Saw offers operators a safe, reliable compact crosscutting solution. The table surface of the CUT18 Saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.

Technical Advantages

Cutting capacities offer maximum thickness up to 4” and up to 12” width

Table surface is precision ground to assure cutting accuracy

Adjustable cycle speeds offer cutting rates up to (45) strokes per minute

Powerful, high torque 10 HP IE3 motor ensures high stability at fast cutting speeds

Belt-tension adjustments and replacements are performed quick and easy

Ironwood’s optional out-feed tables can be equipped with scales and flip stops to ensure consistent cutting lengths

Efficiency Features

Pneumatic operation of the cutting cycle is conveniently controlled via foot pedal

Pressure clamp is easily adjusted to provide versatility when working with varying thicknesses of material

Proper dust ports ensure positive air flow to prevent dust build-up within the machine cabinet

Cycle speeds can be conveniently adjusted inside machine cabinet

Machines are offered in right-handed feed and left-handed feed directions

Safety

Safety guarding minimizes risk of operator’s hands accessing the cutting area

Enhanced safety elements ensure saw blade is totally enclosed within the cabinet and covered by the pressure clamp when raised to perform cutting operation

Limit switches ensure safe tool changes, allowing access doors to open only when blade has stopped rotating

(Optional) Dual-Hand Controls replaces foot pedal activation with dual-push button activation, requiring both buttons to be simultaneously pressed in order for the saw to cycle, and thereby reducing the potential for injury by removing operator's hands from the cutting area

Emergency Stop

Conforms to UL/CSA electric standards

Six month electrical warranty

One year mechanical warranty
