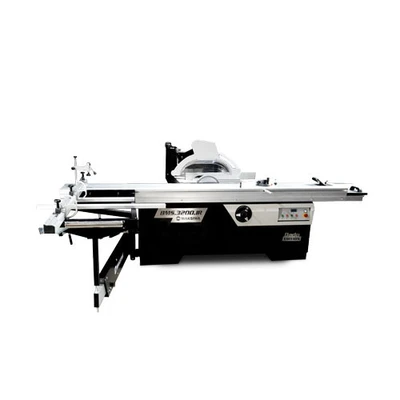

Maksiwa BMS.3200.IR Dado Edition - Sliding Panel Saw 126"

Maksiwa BMS.3200.IR Dado Edition - Sliding Panel Saw 126"

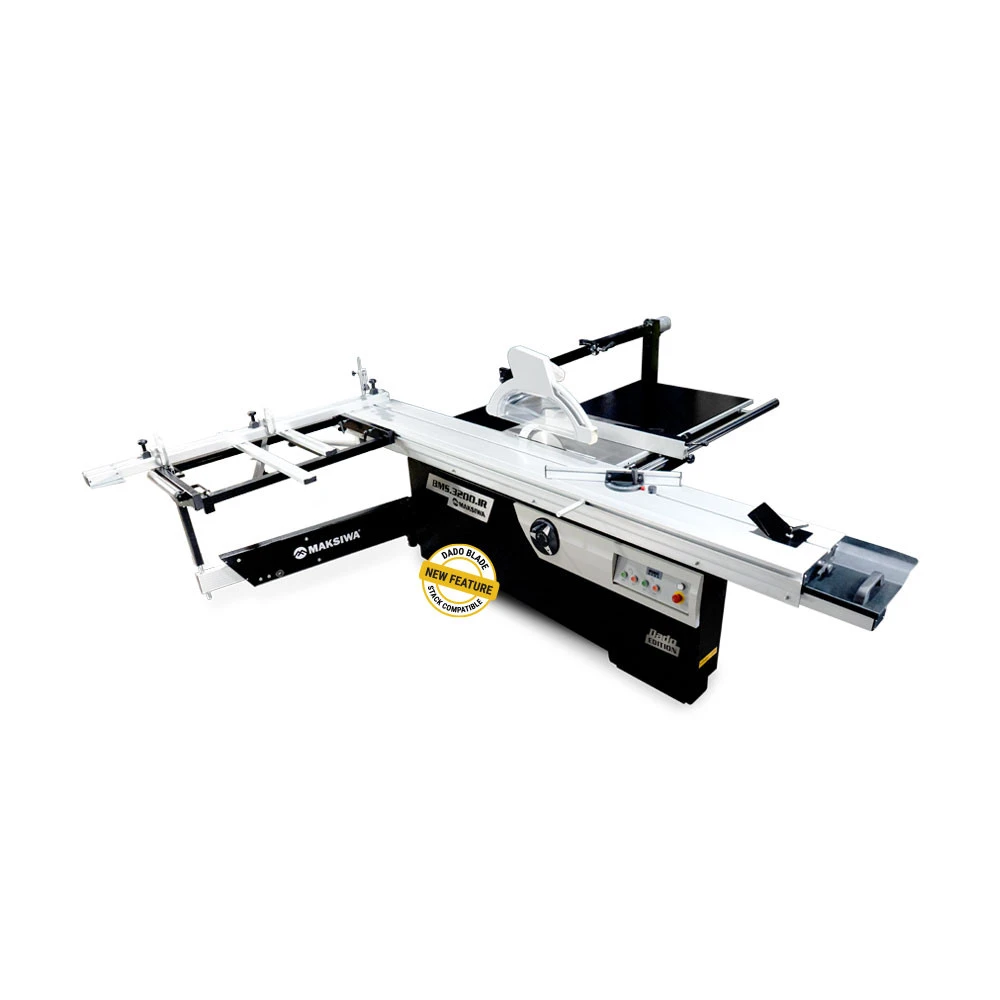

Introducing the new BMS.3200.IR Dado Edition, a reflection of our commitment to bringing you the best. This latest model in our best-selling series has been redesigned to offer superior performance and affordability. With dado blade capabilities, the BMS.3200.IR is a versatile addition to your workshop. Available in both 1 Phase and 3 Phase 220V options, it seamlessly fits your needs, whatever they may be. The powerful 5HP main motor and 1HP scoring motor ensure strength and reliability for any task. Dado stacks are an essential tool for creating seamless and clean joinery. The BMS.3200.IR is compatible with an 8″ blade and has a max capacity of 1-1/4″, ensuring perfect straight chip-free parallel cuts to enhance the quality of your work. The easy blade access allows you to switch effortlessly between dado and regular blades.



Technical Information



Technical Information
BMS.3200.IR

Main Motor
5 HP/ 4000 RPM 3.7 Kw

Max Blade Diameter
12" | 305mm

Main Blade Arbor
1 3/16" | 30mm

Main Blade Max cutting Height at 90°
3 1/2 " | 90mm

Main Blade Cutting Height at 45°
2 1/8" | 53mm

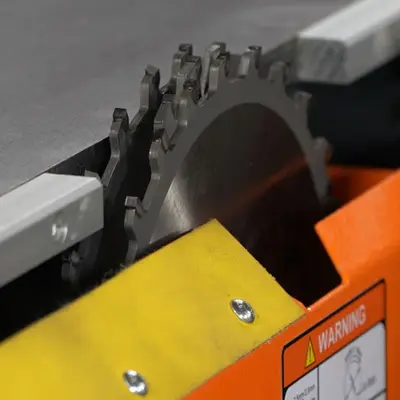

Dado Width Capacity
3/4”

Max Dado Blade Diameter
8"

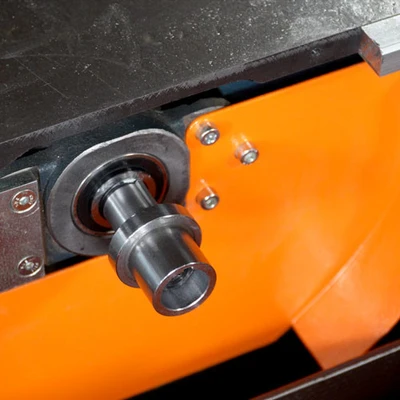

Dado Blade Arbor
1 3/16" | 30mm

Scoring Motor
1 HP / 8000 RPM .74Kw

Scoring Motor Blade
4 3/4" | 12mm

Scoring Blade Arbor
25/32" | 20mm

Scoring Blade Type
Conical

Max Ripping Capacity
51" | 1295mm

Crosscut Capacity
126" | 3200 mm

Crosscut Fence Capacity Closed/Open
74 3/4" / 108" | 1899 MM / 2743 mm

Machine Working Dimensions (LxWxH)
126" x 137" x 52" | 3200 x 3480 x 1321mm

Cast Iron Table Dimension (LxWxH)
31 1/2" x 21" x 34 3/4" | 800 X 553 X 883 mm

Sliding Table Dimension (LxW)
126" x 14 3/4" | 3200 x 375 mm

Dust Collection Port (2)
4"

Minimum Dust Collection Requirements
1000 CFM | 28m/min

Electrical Specs
1 Phase 220V 22 Amps 60 Hz
3 Phase 220V 11 Amps 60 Hz

Main Body Crate Dimensions (LxWxH)
88" x 48" x 43" | 2245 x 1130 x 1090 mm

Main Body Crate Weight Net/Gross
1102/1257 LBS | 500/ 570 KGS

Sliding Table Crate Dimensions (LxWxH)
140" x 19" x 8 1/2" | 3556 x 483 x 216 mm

Sliding Table Crate Weight Net/Gross
227/282 LBS | 103/128 KGS
