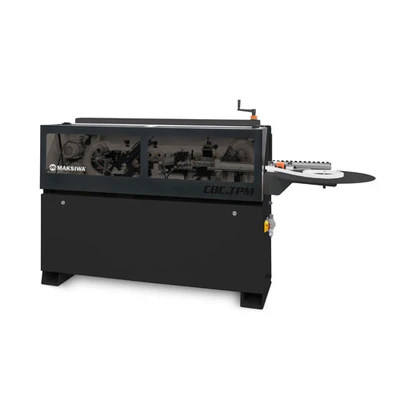

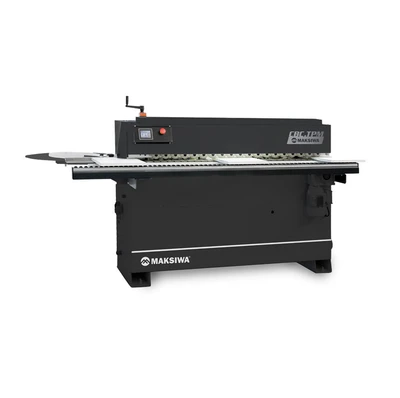

Maksiwa Edgebander CBC.TPM - Pre-Milling

Description

The NEW Maksiwa Compact Automatic Edgebander CBC.TPM combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.

Pre-milling in a compact design

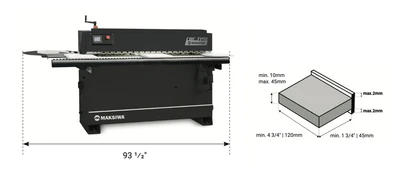

Edge Tape: 0.4-2 mm

Panel Thickness: 10-45mm

1 Phase 220V 60Hz

Glue Scraper Unit

Buffing Unit

End Trimming HF Motor

Pre-milling Unit 2 HF Motors

Glue Pot Capacity 0.5kg | 1lbs Teflon Coated

Automatic feeding Speed 21 ft/min

Net Weight 1911 Lbs | 540 kgs

Compact Design

Melamine/PVC/ABS/PP

Key Benefits

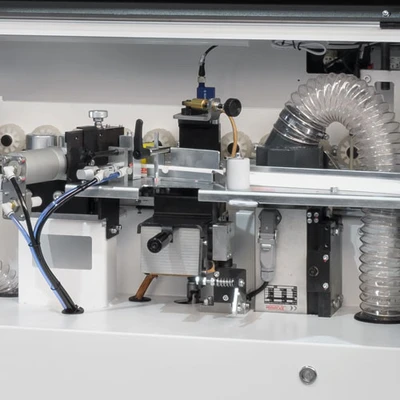

Pre-Milling Station: Removes surface imperfections and tool marks from panel edges using high-frequency diamond cutters before glue application, creating invisible joints.

Compact Footprint: Combines full-scale automatic functions (pre-milling, gluing, trimming, scraping, and buffing) into a size optimized for space-conscious shops.

Teflon-Coated Glue Pot: Resists glue buildup, promotes smooth hot-melt adhesive flow, and allows fast, easy cleaning or color changes.

Vertical Rounding & Straight Trimming: Smooths front and rear corners automatically while offering precise top, bottom, and end trimming.

Intuitive PLC Touchscreen: Provides a central digital interface to easily adjust operating speeds, temperatures, and diagnostic alerts.

High-Frequency Motors: Powered by independent electronic inverters to ensure smooth, precise, and consistent cutting speeds (operating at 21 feet per minute).

Scraping and Buffing Units: Cleans away leftover glue residue and polishes the final edge for an immediate factory-ready finish. [1, 2, 3]
