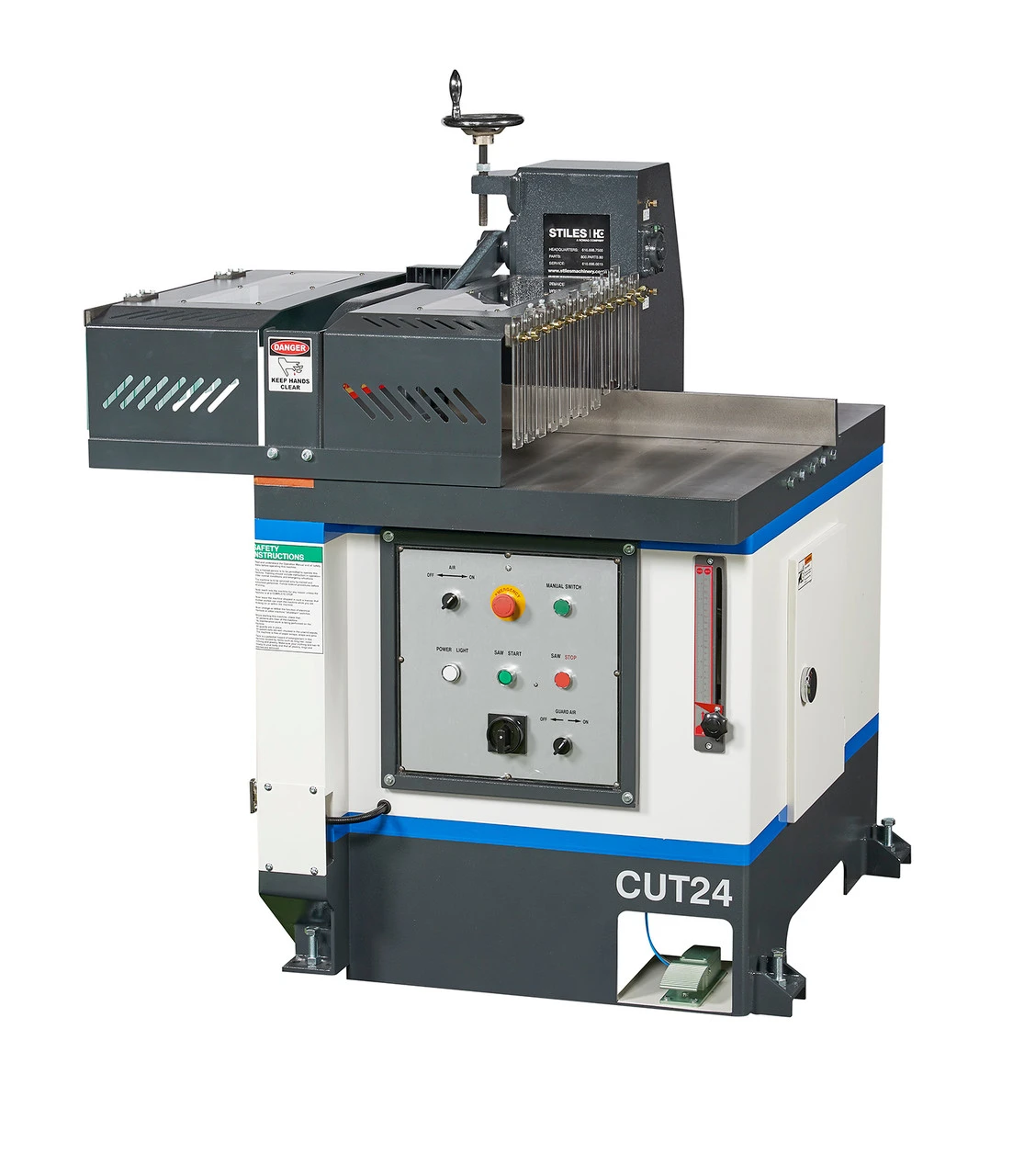

Stiles Machinery Ironwood 230V 24” Cut Off Saw CUT24L/R

The Ironwood CUT24 Cut-off Saw offers operators a safe, reliable compact crosscutting solution. The table surface of the CUT24 Saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.
Technical Advantages
Cutting capacities offer maximum thickness up to 8” and up to 21” width
Table surface is precision ground to assure cutting accuracy
Adjustable cycle speeds offer cutting rates up to (40) strokes per minute
Powerful, high torque 15 HP motor drive ensure high stability at fast cutting speeds
Belt-tension adjustments and replacements are performed quick and easy
Ironwood’s optional outfeed roller conveyor can be equipped with a graduated gauge bar and flip stops to ensure consistent cutting lengths
Efficiency Features
Pneumatic operation of the cutting cycle is conveniently controlled via foot pedal
Pressure clamp is easily adjusted to provide versatility when working with varying thicknesses of material
Proper dust ports ensure positive air flow to prevent dust build-up within the machine cabinet
Cycle speeds can be conveniently adjusted from outside the machine cabinet
Adjustable saw stroke from front of machine for faster cycle times
Machines are offered in right-handed feed and left-handed feed directions
Safety
Safety guard minimizes risk of operator’s hand accessing the cutting area
Enhanced safety elements ensure saw blade is totally enclosed within the cabinet and covered by the pressure clamp when raised to perform cutting operation
Limit switches ensure safe tool changes, allowing access doors to opened only when blade has stopped rotating
Emergency Stop
Conforms to UL electric standards
Six Month electrical warranty
One year mechanical warranty
