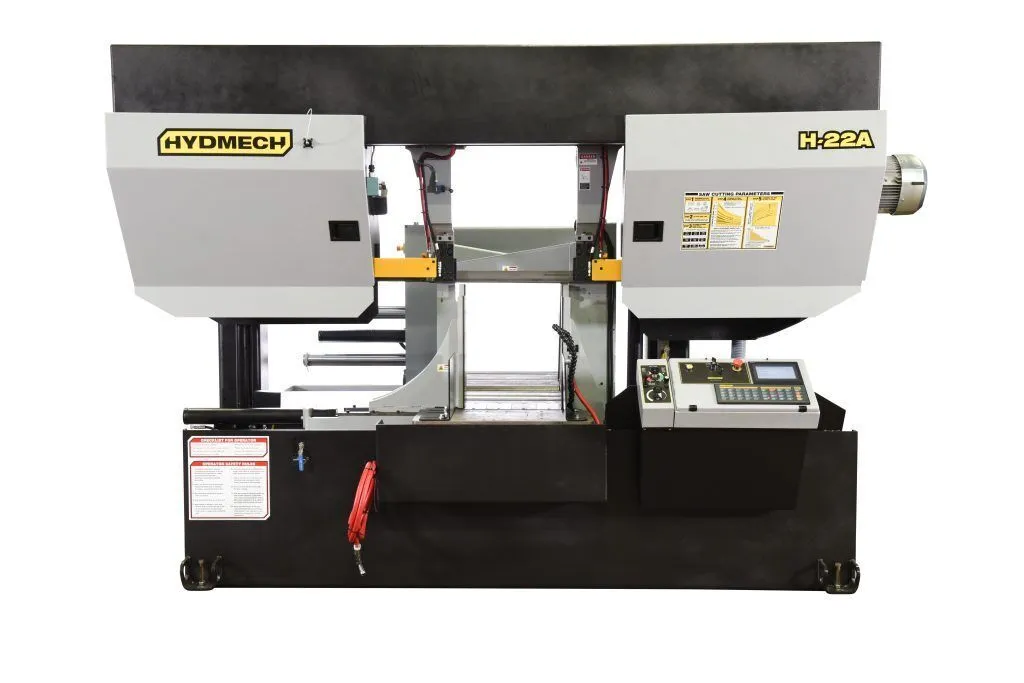

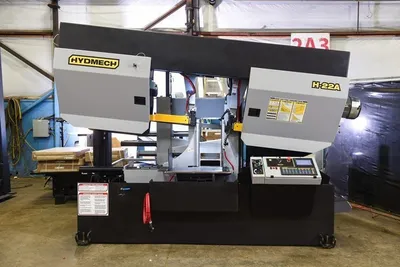

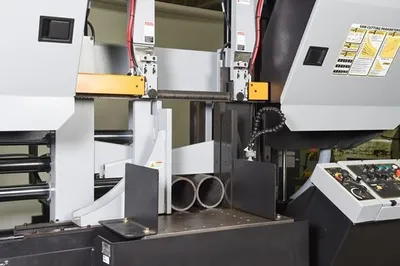

NEW HYD-MECH H-22A

The H-22A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life. Featuring a 22″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Specifications (subject to buyer verification):
Capacity: 90°
Rectangular (h x w): 22” x 22”
Round: 22"
Square: 22"
Capacity: 6° Canted Head
Rectangular (h x w): 20” x 22”
Round: 20"
Square: 20"
Blade Size: 2” x 22’ 6”
Blade Drive: 10 HP
Machine Voltage: 208*, 240*, 480, 575* v *External transformer supplied at no charge
Blade Speed: 40-300 SFM
Automatic Multi-indexing: 0 - 34”
Hydraulic Tank Capacity: 9.5 Gallons
Coolant Tank Capacity: 30 Gallons
Table Height: 31" (35" w/canted head)
Dimensions (W x L x H): 141” x 88” x 92”
Machine Weight: 12,500 lbs

Equipped With (subject to buyer verification):
Standard Machine Features:
• One piece design – no alignment necessary

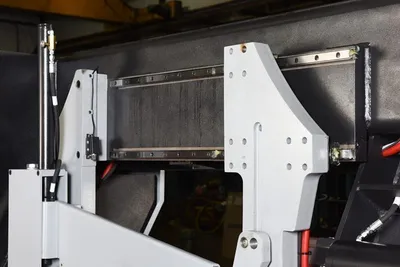

• Spilt front vise

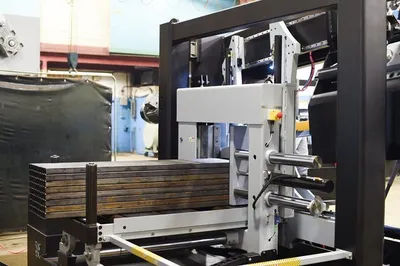

• Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

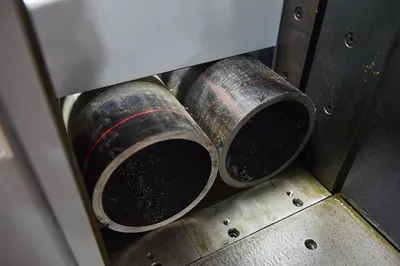

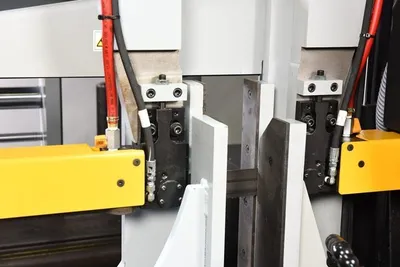

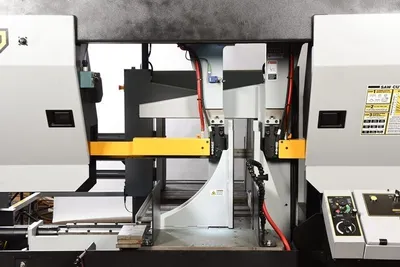

• Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
• Hydraulic positive down feed
• 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises

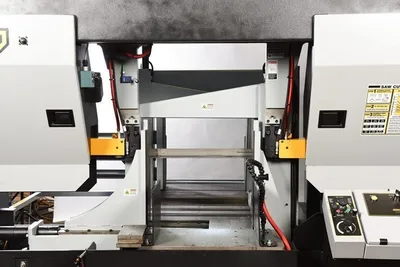

• Blade chamber separates material from cut part
• High resolution feed rate valve allows for constant feed rate when cutting special alloys
• Cast iron band wheels

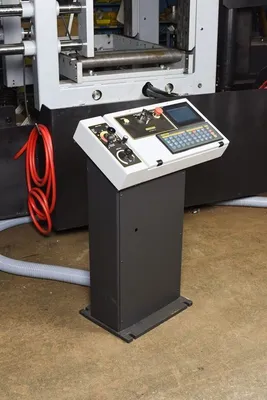

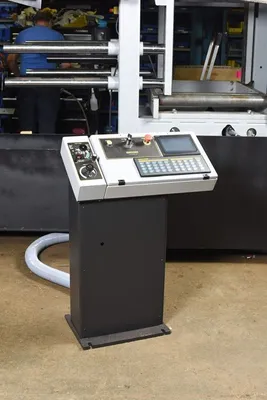

• 7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
• Replaceable blade brush
• Robust steel base
• Automatic chip removal auger

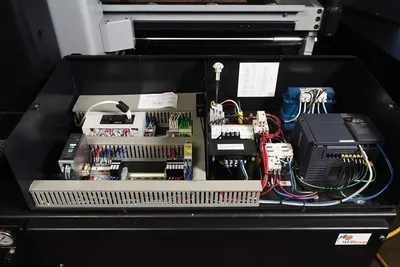

• Out of stock switch Easy access electrical panel and hydraulics
• Blade breakage switch
• Hydraulic band tensioning with digital readout
• Hydraulic carbide guide tensioning
• Hardened, replaceable wear plates
• Safety door interlocks
• Flood coolant with wash down hose
• Work light
• Variable vise pressure

Optional Machine Features:

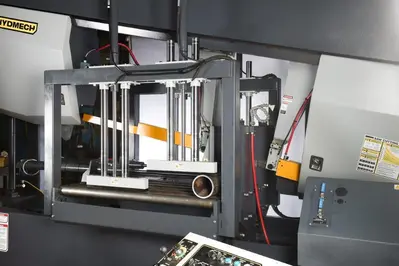

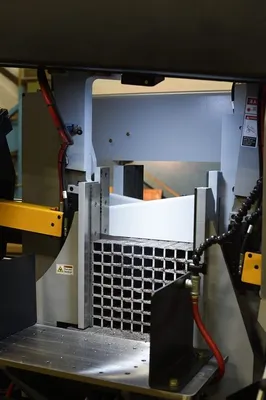

• Full capacity hydraulic overhead bundling
• 6 degree canted head
• Blade deviation
• Mist lubrication
• Outboard vise clamping options available upon request
• Remote console – 15’ cord

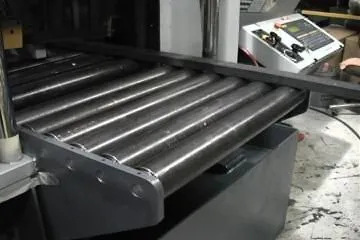

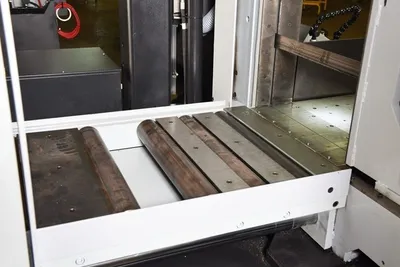

• Roller discharge table
• Vertical alignment rollers
• Laser light
• Idler conveyors
• Powered conveyors
