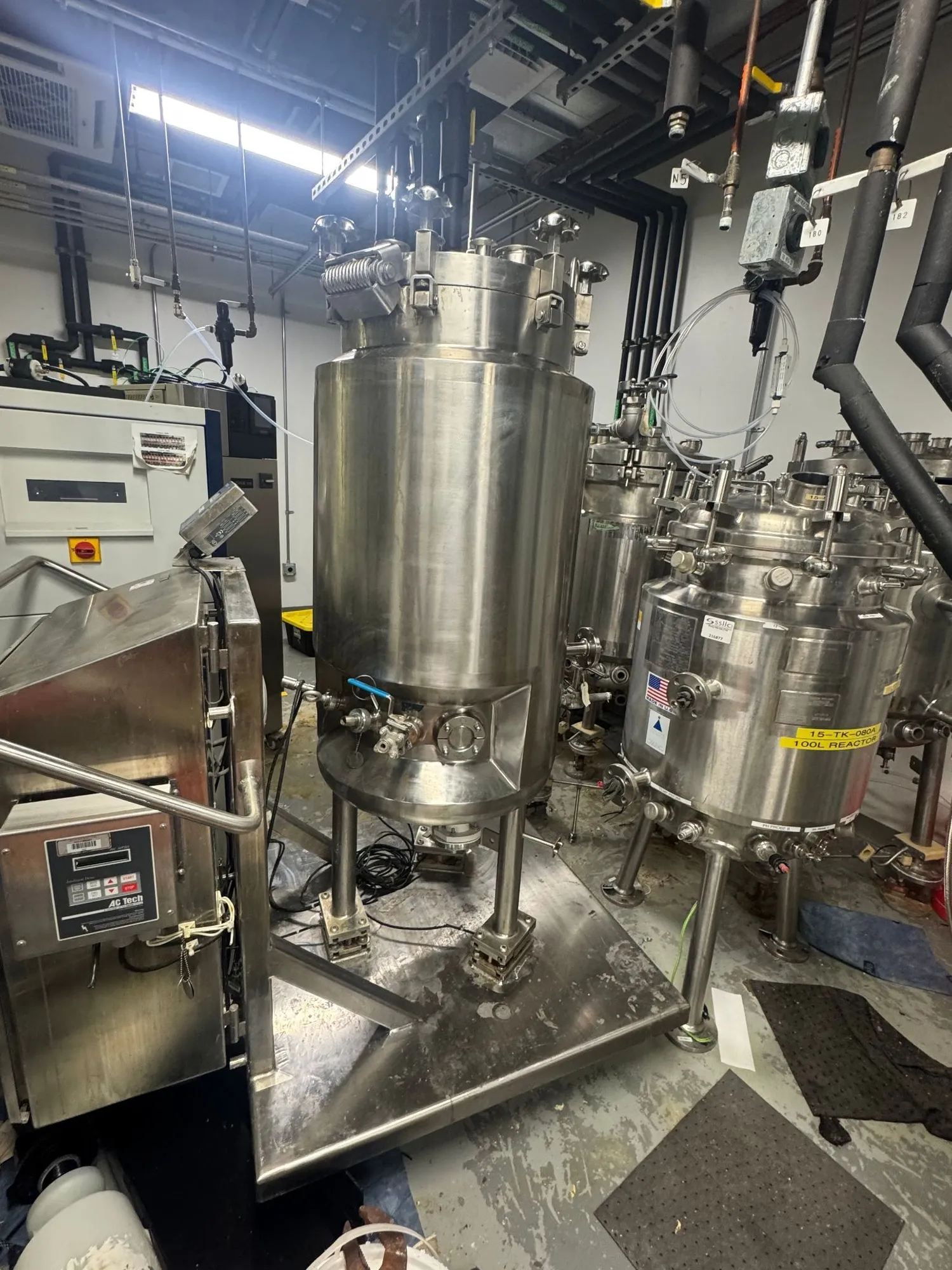

Used Approximately 12.5 Gallon (50 Liter) 316L Stainless Steel Reactor
Capacity: 12.5 gallons
Manufacturer: DCI, Inc.
National Board: 4134
Serial: 98PH58942
Year: 1998
Internal pressure: 45 psi
Jacket pressure: 120 psi
Mounted on (3) stainless steel legs
18" diameter x 24" straight side
Dished top and bottom heads
| Capacity | 12.5 gal | 47.3 L |
| National Board No. | 4134 | 4134 |
| Type of stainless | 316L | 316L |
| Internal Pressure | 45 PSI | 3.1 bar |
| Jacket Pressure | 120 PSI | 8.3 bar |
| Diameter | 18" | 457.2 mm |
| Straight Side | 24" | 609.6 mm |
| Type Of Heads | Dished top and bottom | Dished top and bottom |
| Legs/Lugs | legs | legs |
| Dimensions | 18 inches diameter x 24 inches straight side | 18 inches diameter x 24 inches straight side |
