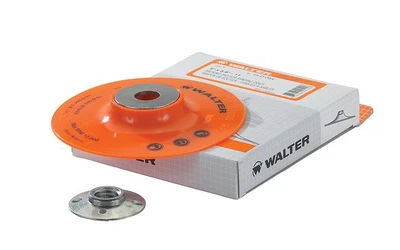

Walter Backing Pad Assemblies

APPLICATIONS & TIPS
FEATURES
Ultimate Flexibility
Made from high quality impact resistant plastic

TECHNICAL SPECIFICATIONS

DIA.
THREAD
ORDER NO
MAX RPM
STD PKG
LIST PRICE
ORDER

7 " 5/8"-11 15-D 027 8,600 1 24.50
4 " 5/8"-11 15-D 030 15,000 1 12.50
4 " 3/8"-24 15-D 035 15,000 1 12.50
4-1/2 " M14X2.0 15-D 042 13,300 1 12.90
4-1/2 " 5/8"-11 15-D 044 13,300 1 12.90
5 " M14X2.0 15-D 052 12,200 1 14.50
5 " 5/8"-11 15-D 054 12,000 1 14.50
6 " M14X2.0 15-D 062 10,200 1 23.50
6 " 5/8"-11 15-D 064 10,000 1 23.50
APPLICATIONS
Backing pad for sanding discs

TIPS
Complete with 5/8"-11 clamping nut
