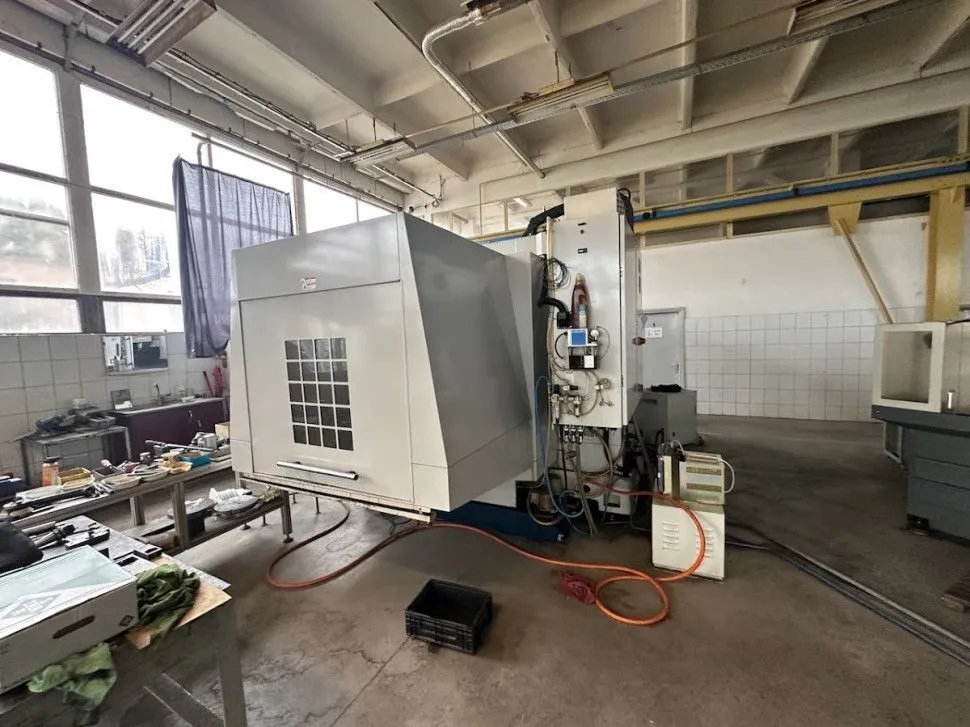

2013 MILLTRONICS VM30 CNC
The Milltronics VM30 CNC vertical machining center features a 66" x 26" table, 60" x 30" x 24" travels, a CAT-40 spindle taper, and a 24-station tool changer. The spindle speed reaches 8,000 RPM, and the rapid traverse rate is 1,000 IPM (X, Y, Z). The machine is equipped with a Milltronics 8200 or Centurion 7 CNC control and has a 25 HP spindle motor.
| X | 60" | 1,524 mm |
| Y | 30" | 762 mm |
| Z | 24" | 609.6 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | CT-40 | CT-40 |
| Table-W | 26" | 660.4 mm |
| Table-L | 66" | 1,676.4 mm |
| # Axis | 3 | 3 |
| Dimensions | 114″ x 114″ x 112″ | 114″ x 114″ x 112″ |
| Weight | 20,000 lbs | 20,000 lbs |
Y Axis Travel: 30″
X Axis Travel: 60″
Z Axis Travel: 24″
Spindle Motor: 24 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Table Size: 66″ x 26″
Dimensions: 114″ x 114″ x 112″
Weight: 20,000 LBS
