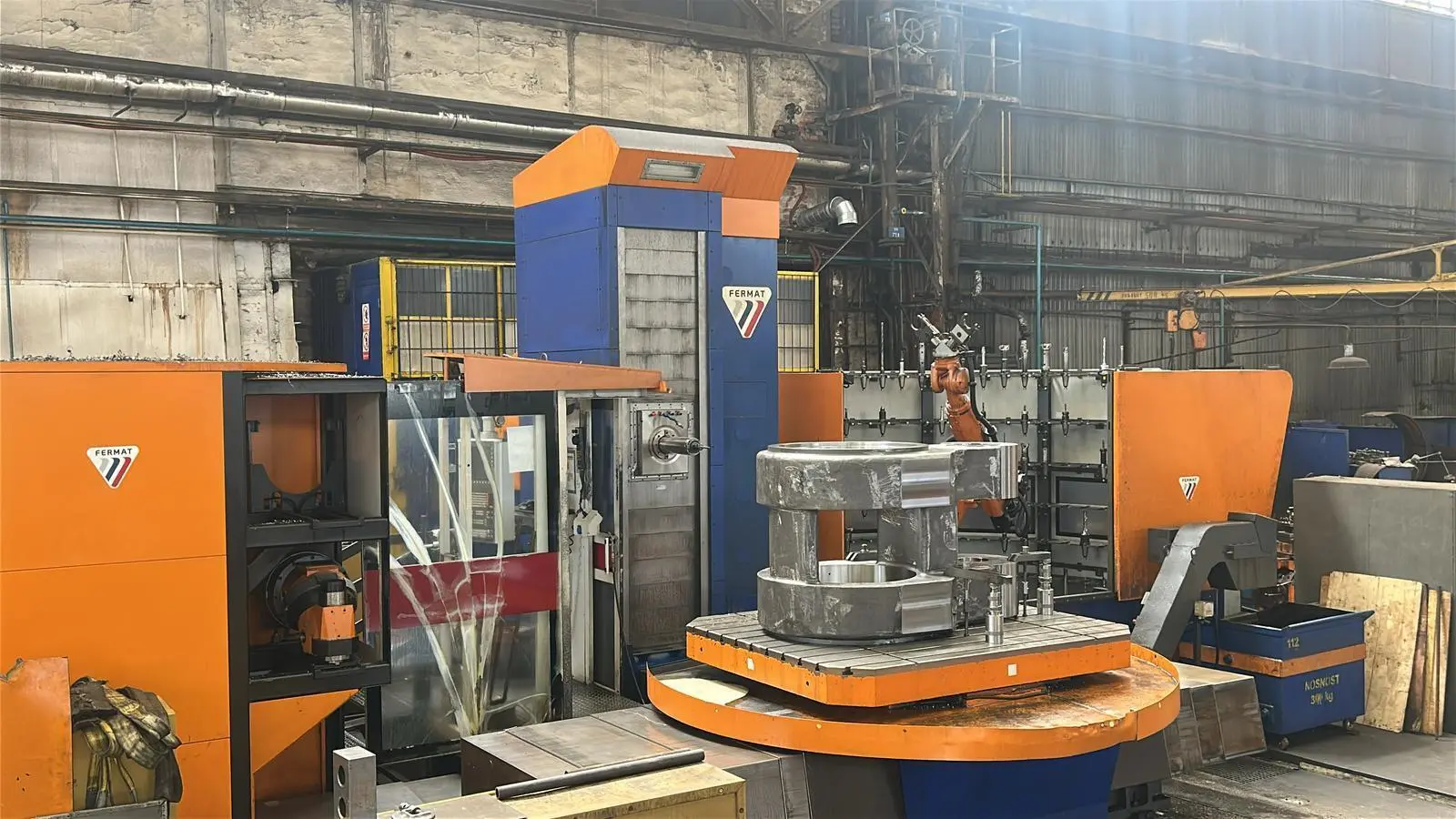

2014 FERMAT WFT 13R CNC 5.1" HBM w/ Heidenhain TNC 530 Control, Travels X= 78,4", Y- 78.4", Z- 59.1"
ATC 105 positions with robot KUKA : Automatic head changer :
Most popular FERMAT table-type horizontal boring mill, for high-performance machining with maximum utilization of accessories and automatic milling heads for efficient machining of workpieces of up to 44 093 lbs / 20 tons. Spindle diameter 5.1 in / 130 mm, spindle travel 31.5 in / 800 mm. Optional ram stroke 27.6 in / 700 mm. Extremely versatile series of table-type horizontal boring mills, fully compatible with a wide range of accessories and automatic milling heads. Version with linear guideways (WFT 13 L) and/or with ram (WFT 13 R). FERMAT WFT 13R HBM with Heidenhain Control, Stroke X= 78,4" x Y- 78.4" Z- 59"
FERMAT began in 1990 and was founded by Jiří Ferenc and Mr. Matys, whose last names were used to form the company name. From the outset, FERMAT has benefited from the solid professional ethics of family and friends to guide its excellence.
| Spindle Size | 5.1" | 129.54 mm |
| X-Horiz Tvl of Table | 78.7" | 1,999 mm |
| Y-Vert Tvl of Head | 78.7" | 1,999 mm |
| Power | 49.6 hp | 37 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 62.9" | 1,597.7 mm |
| Table-L | 70.8" | 1,798.3 mm |
| Spindle Tvl. | 31.4" | 797.56 mm |
| Control | CNC (Heidenhain TNC 530) | CNC (Heidenhain TNC 530) |
| Dimensions | 354.3"L x 377.9"W x 210.6"H | 354.3"L x 377.9"W x 210.6"H |
| Weight | 107,000 lbs | 107,000 lbs |
CNC : TNC 530 heindenhain
Stroke : 2000 x 2000 x 1500 mm
W axis : 700 mm
Table : 1800 x 2200 mm
Spindle diameter : 130 mm
Rotation speed : 10-3000 rpm
Work feed in all axes : 1-8000 mm/min
Motor spindle power : 37/56Kw
Maximum torque on spindle : 2008/3039 Nm
Maximum loading on table : 15000 kg
Attachment : ISO 50
High pressure coolant spindle : 20 bars
Rotary table feed range B axis positioning : 0.0001°
Linear scales :
ATC 105 position with robot KUKA :
Automatic head changer :
1 extra head multiposition :
