Blanchard 32K-60 Vertical Rotary Surface Grinder, 60" Table, 36" Vertical, 75 HP, Variable Pull Magnetic Controls, Table Jog, Push Button Station
| Chuck Size | 60" | 1,524 mm |
| Horz/Vert | Vert | Vert |
| Power | 75 hp | 55.9 kW |
| Swing | 72" | 1,828.8 mm |
| Under Wheel | 36" | 914.4 mm |
| Grinding Wheel Dia. | 32" | 812.8 mm |

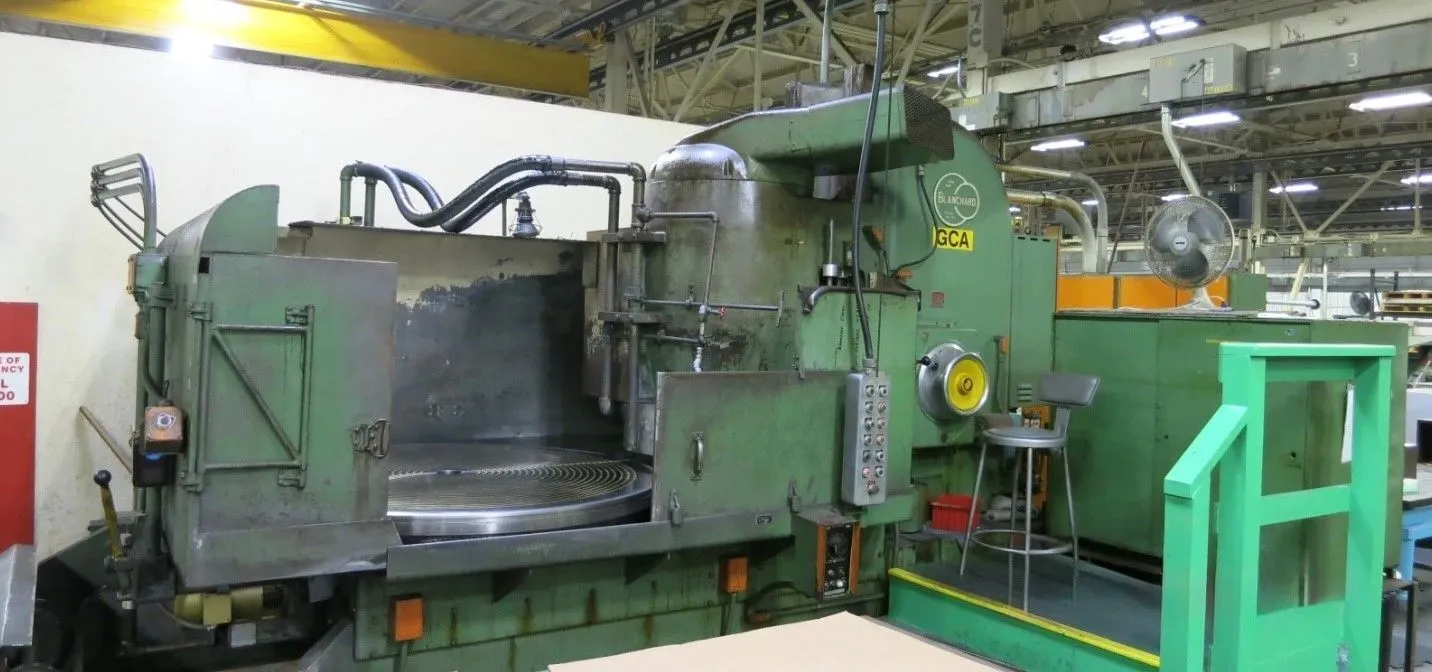

BLANCHARD 32K-60 VERTICAL ROTARY SURFACE GRINDER
SPECIFICATIONS
Table Size................60” Dia. (72” Swing With Water Guards)
Vertical......................................36”
Horsepower....................................75
Down Feed (Automatic Stop)....................0.004-0.08 IPM
Grinding Wheel................................32” Dia.
Weight Limit..................................6,000 LBS
Size..........................................+/- 0.0005”
Flatness......................................0.00003” Per Foot
EQUIPPED WITH
Variable pull magnetic chuck controls.
Table jog.
Push button control station.
Variable speed chuck control.
Specifications are deemed accurate, however, subject to verification or prior sale.
