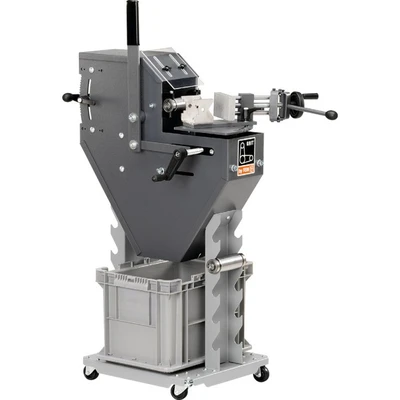

Fein GXR Radius Grinding Unit

Radius grinding module for exact-fit grinding of pipe, profiles and flat materials
For precisely cutting radii (with a diameter from 5/8 [16] to 3-1/2 [90] in[mm]) on pipes and profiles.
Contact rollers in standard sizes are available as options
Optional length stop for production applications
Integrated depth stop
Optional combination with GX 75 (2H) belt grinders
Independent angle settings possible up to 90˚
Pipes up to Ø

3/4 [16] - 3 [75] in[mm]

Belt dimension

3 [75] x 88-1/2 [2,250] in[mm]

Max. dimension of profile/flat material

3 [75] x 3 [75] in[mm]

Weight

119 [54] lbs[kg]
