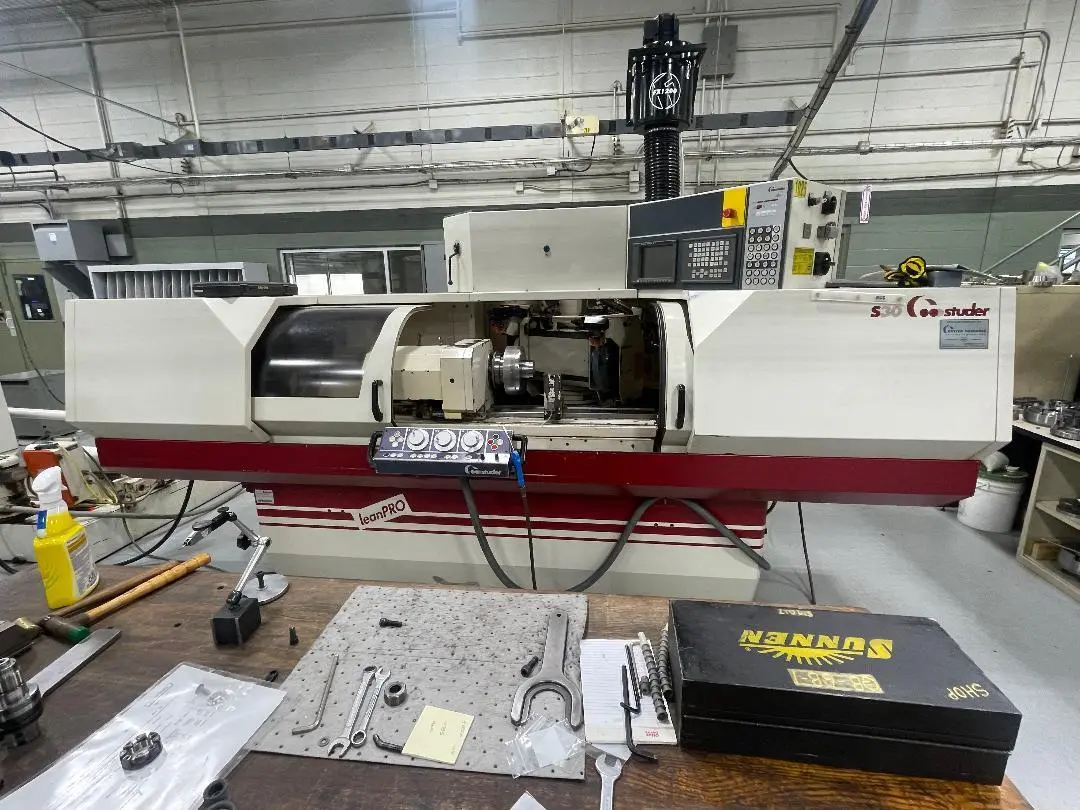

One Used Studer S30 Lean Pro CNC Cylindrical Grinder, New 1999.
Technical data
Centre height 175 mm
Distance between centers 1000 mm
Workpiece weight on centers max. 130 kg
Grinding wheel:
Grinding wheel left side:
Diameter 400 mm
Width 80 mm
Bore 127 mm
Grinding wheel right side:
Diameter 400 mm
Width 80 mm
Bore 127 mm
Turret grinding tool holder for ext. and int.
Turret grinding tool holder num. of spindles 3
Grinding wheel speeds:
Rotatable grinding spindle head (b-axis) °
Peripheral speed 35 m/s
Indexing manually
Cross travel CNC 275 mm
Feed speed up 0.001-5000 mm/min
Rapid feed motion 5 m/min
Longitudinal slide:
Max. travel 275 mm
Max. grinding length 1050 mm
Resolution of the scale 0.0001 mm
Transversal slide:
Resolution of the scale 0.0001 mm
Work piece spindle head:
stepless
from 30 rpm
up to 1000 rpm
taper in spindle: MT 5
Taper in tailstock: 3 MT
Tailstock travel of barrel 35 mm
Table speed:
stepless
from 0.001 mm/min
up to 10000 mm/min
Max. table angular displacement 5 °
Voltage 50 Hz 3x 400 Volt
Grinding spindle motor 7.5 kW
Total power required 30 kVA
Machine's weight about 4800 kg
Overall dimensions machine:
Length 4500 mm
Width 2300 mm
Height
Technical specifications without guarantee.
| Swing | 175 mm | 6.8898" |
| Centers | 1,000 mm | 39.37" |
| Control | CNC (Fanuc 16-T) | CNC (Fanuc 16-T) |
