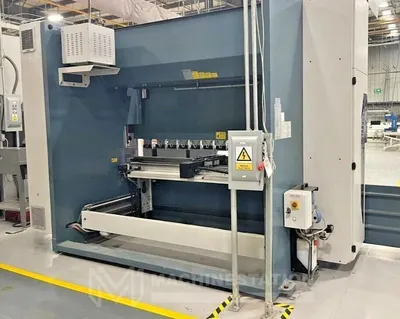

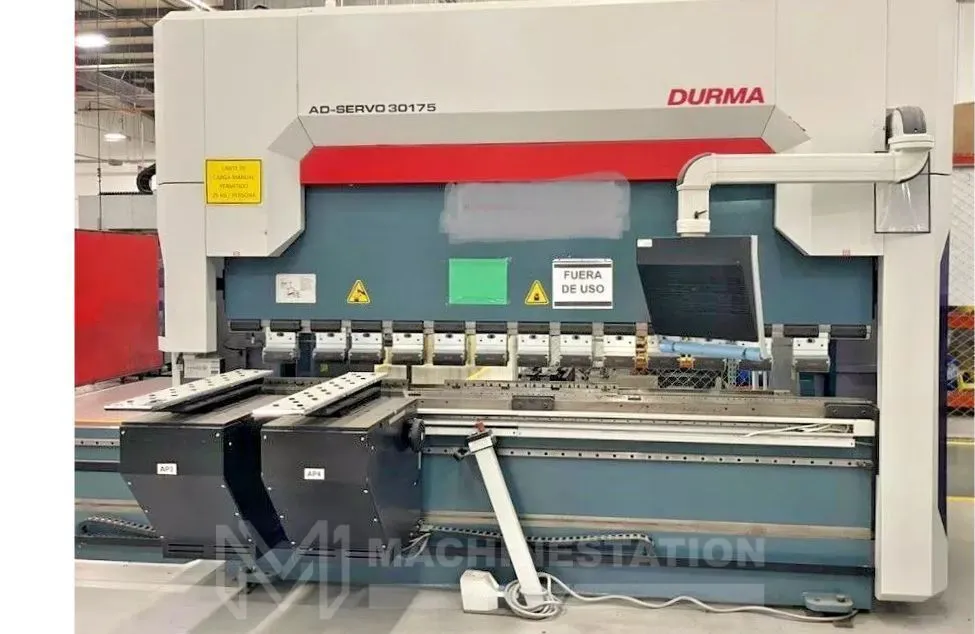

USED 2022 DURMAZLAR AD-S 30175
Overview
Specifications
| Tonnage | 175 T | 158.758 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 8.53' | 2.6 m |
| Stroke | 10.43" | 264.92 mm |
| # Axis | 5 | 5 |
| Control | CNC (Durma DA-69T) | CNC (Durma DA-69T) |
| Dimensions | 221" X 101" x 108" High Approx. | 221" X 101" x 108" High Approx. |
| Weight | 26235 lbs | 26235 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

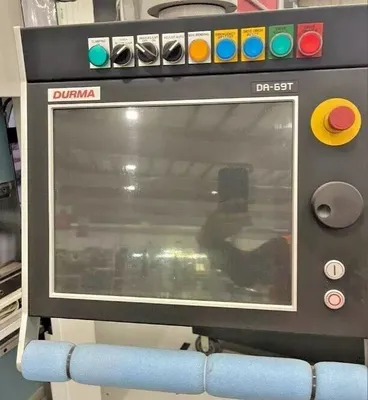

Durma DA-69T CNC Control
3D and 2D Graphical Touch Screen Programming Mode

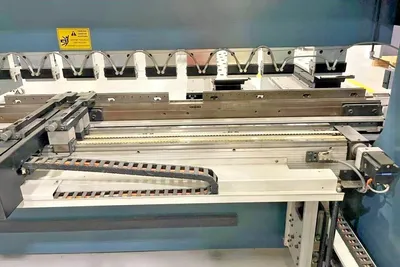

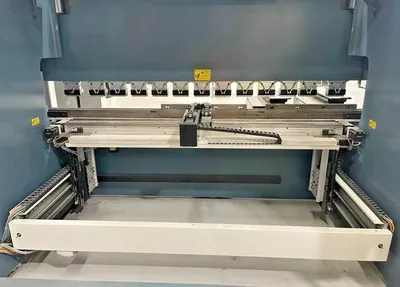

(5) Axis Back Gauge
Specifications:
Capacity: 175 Tons
Maximum Bending Length: 120″
Inside Distance Between Side Frames: 102.3″
Stroke Length: 10.43″
Daylight: 20.86″
Throat Depth: 17.7″
Rapid Speed Y-Axis: 7.9” Per Second
Working Speed Y-Axis: 0.5” Per Second
Retraction Speed Y-Axis: 7.9” Per Second
Back Guage Speed X-Axis: 19.68” Per Second
Back Guage Speed R-Axis: 13.77” Per Second
Working Speed Z-Axis: 39.4” Per Second
Working Distance Z-Axis: 78.3”
Table Height: 35.43”
Table Width: 4.09”
General:
Power Source: 440 V, Three Phase, 60 Hz
Motor: 18.5 Kw
Overall Dimensions: 221″ X 101″ x 108″ High Approx.
Weight : 26,235 lbs Approx.
Equipped With

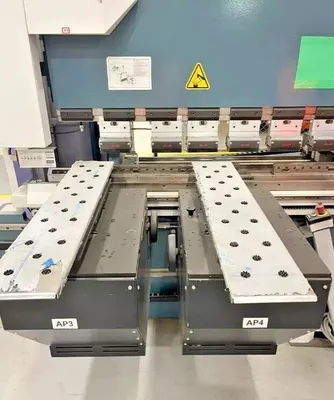

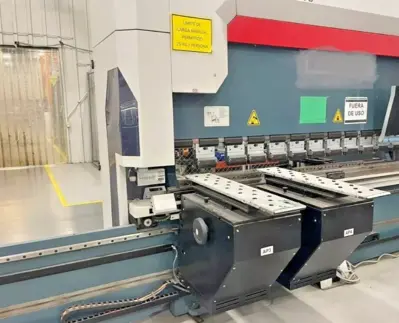

Linear Guide Front Sheet Support
Crowing System
Laser Guarding System
Side & Rear Safety Guards
Pedestal Control with Electric Foot Pedal
