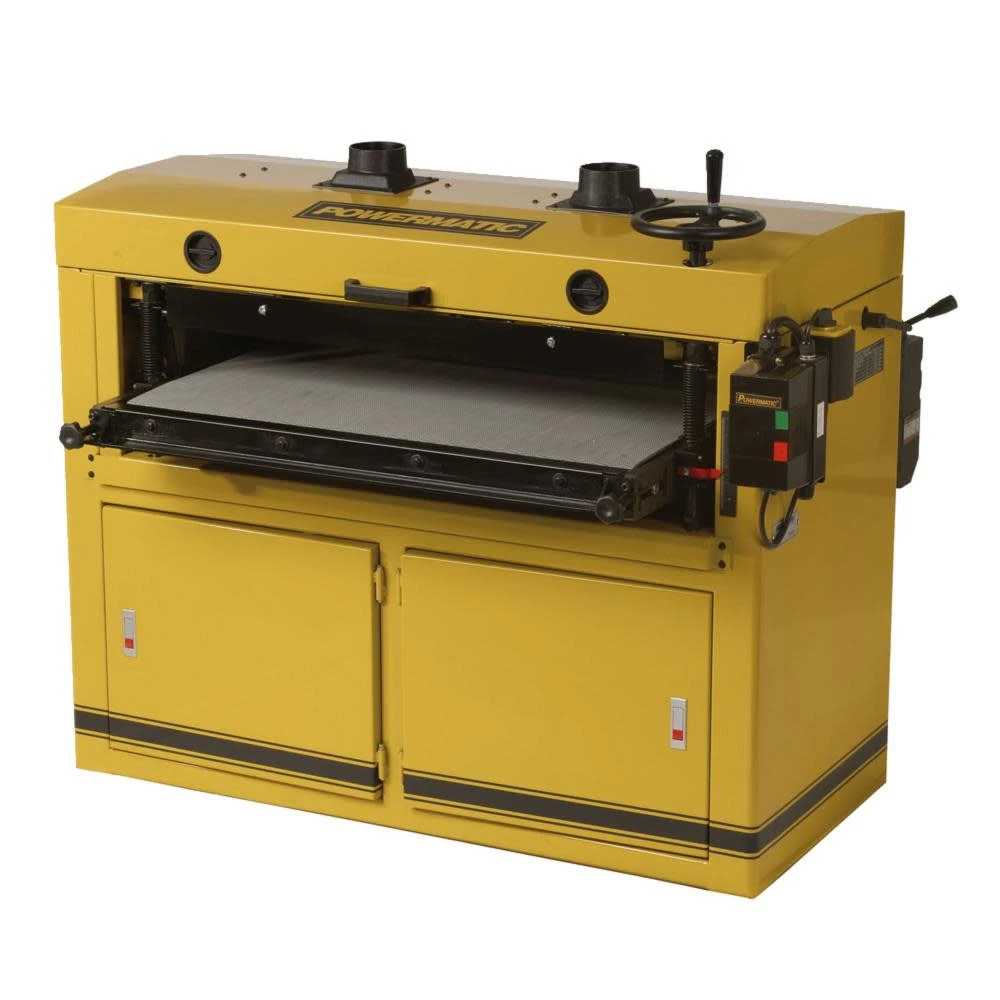

Powermatic 37" Dual Drum Sander, 10HP 3PH 230/460V, 2 Speed
Overview
37" Dual Drum Sander, 10HP 3PH 230/460V, 2 Speed
This is a production class dual drum sander that is loaded with features. A 10 HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jack screws with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4 HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
FEATURES
10HP motor for plenty of power
Independently adjustable rear drum for fine tuning
Hard durometer rubber coating on steel drums provide flat, smooth finish
Two-speed gearbox for wide range of sanding projects
Full size cast iron table for solid support
Forward/reverse poly conveyor belt grips material evenly
Dual dust ports with directional baffles for more efficient dust removal
Two speed gearbox
Dual 4" dust ports
Sandpaper installed on drums
Tool kit
460V operation requires an additional 460V magnetic switch, part DDS237-322B
Specs
Abrasive Fastening
Hook & Loop
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791321
Amperage (A)
1.75
Assembled Weight (lbs)
990.0
Assembly Required
Yes
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
Caster / Wheel Locking
No
Color / Finish
yellow
Conveyor Maximum Speed (Ft/Min)
12
Conveyor Minimum Speed (Ft/Min)
12
Cordless / Corded
Corded
Country of Origin
Taiwan
Drum Diameter (in)
6
Drum Length (in)
37
Drum Sander Frame Style
Closed Ends
Dust Collection
Yes
Dust Collection Method
Extraction by port
ETL Listed
Yes
globalTradeItemNumber (GTIN)
00662755945816
Horsepower (hp)
0.25
Housing Material
cast iron
Internet Product Code (IPC)
AAE320924F3
Manufacturer Warranty
5 year warranty
Maximum Drum Surface Speed (Ft/Min)
1700
Maximum Stock Thickness (in)
5.25
Maximum Stock Width (Single Pass) (in)
37
Minimum Drum Surface Speed (Ft/Min)
0
Minimum Stock Length (in)
9
Minimum Stock Thickness (In)
3125
Net Tool Weight (lbs)
990.0
Number of Drums
2
Number of Motors
1
Number of Wheels
0
Package Contents
1 dual drum sander,1 handwheels,1 handle assembly,1 handwheels post,2 dust ports,2 open end wrenches(12-14mm and 17-19mm),4 hex wrenches (2, 3, 4, and 5mm),1 manual,1 warranty card, Installation and Assembly
Package Depth
60
Package Height
45
Package Weight
1142
Package Weight (lbs)
1142
Sander Style
Drum
Sandpaper Type
Ready To Cut
Stand Included
Yes
UL Listed
Yes
Variable Speed
Yes
Voltage
230 Volts
