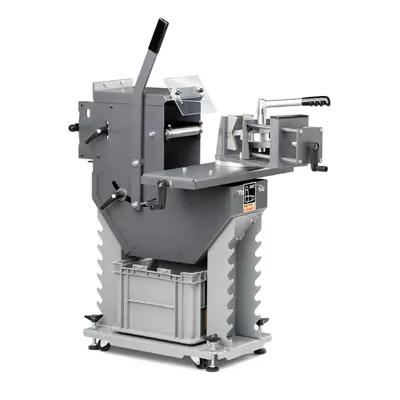

Fein GIR Radius Grinding Unit

Radius grinding module for exact-fit grinding of pipe, profiles and flat materials in production work
For precisely cut radii (with diameters from 3/4 [20] to 7-5/8 [193.7] in[mm]) on pipes and profiles.
Contact rollers in standard sizes are available as options
Integrated depth stop for production work
Optional combination with GI 150 (2H) belt grinder
Independent angle settings possible up to 90˚
Pipes up to Ø

3/4 [20] - 6 [150] in[mm]

Belt dimension

6 [150] x 88-1/2 [2,250] in[mm]

Max. dimension of profile/flat material

4-3/4 [120] x 6 [150] in[mm]

Weight

240 [109] lbs[kg]
