USED AGILENT TECHNOLOGIES G1513A

15-Day
Refurbishment cadence
OEM-Spec
Verified against OEM and published benchmarks; report included.
On-Staff
Solution Scientists
Since 1996
Three decades supporting labs
What you are buying

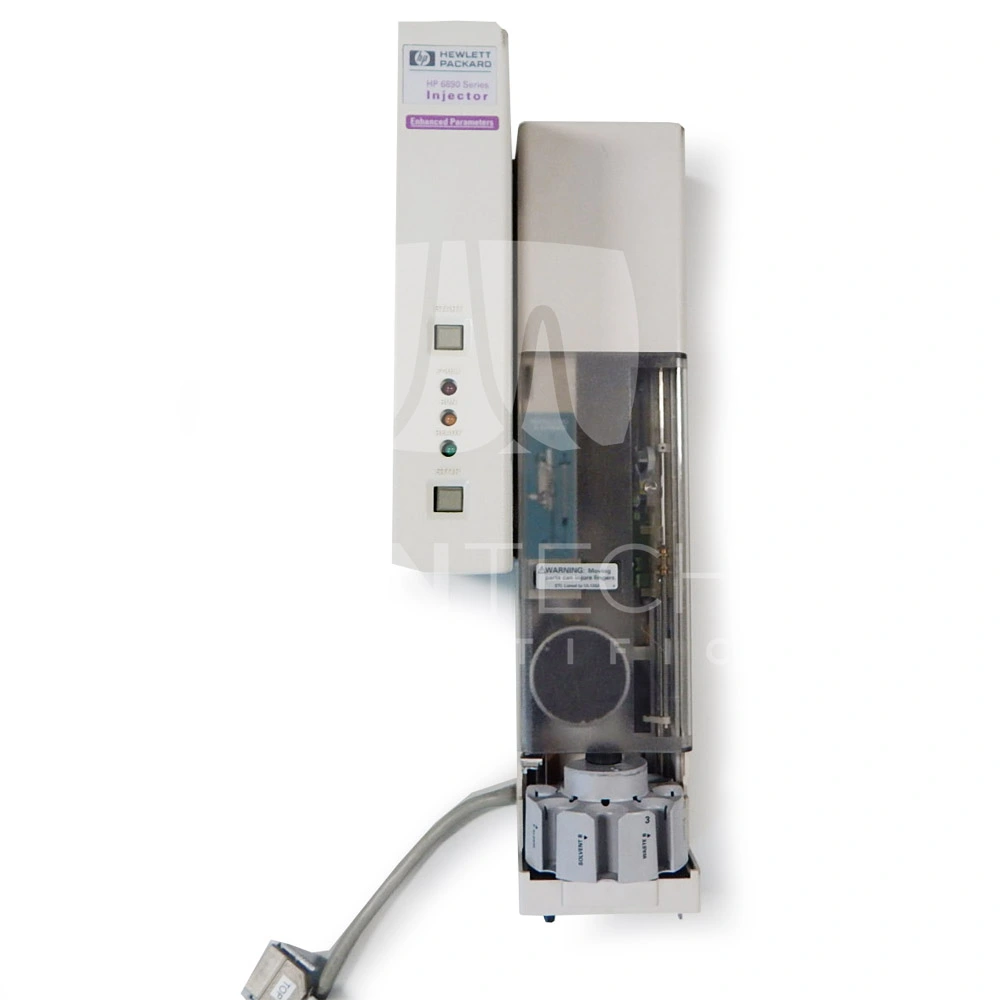

An Agilent G1513A injection tower. It draws each sample from its turret position and injects it onto the GC inlet, controlled through a separate controller module rather than a built-in CAN bus connection.
Every unit moves through the GenTech Certified process. Solution Scientists disassemble and inspect each module, replace all consumables and degraded wear components, then tune and calibrate the instrument and verify performance against OEM and published benchmarks using known reference chemicals. The instrument ships with its verification report. A certified-refurbished system gives you that performance without the capital cost or the lead time of a new purchase.
What Agilent says about this platform

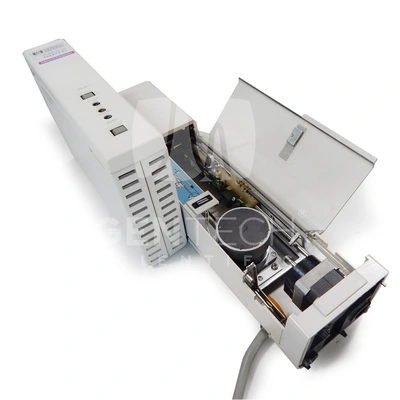

The G1513A is a 7673C automatic liquid sampler injector tower built for the HP 5890A, 5890 Series II, and 6890A gas chromatographs. It requires a separate controller, an 18594A, 18594B, or G1512A, depending on the configuration. The injector houses the syringe, a syringe carriage, a turret, a cooling fan the operator can disable, parameter switches, and a last-sample-vial switch. Available turrets carry 1, 3, 6, or 8 sample positions. An optional 100-vial tray adds sampling capacity beyond the standard turret. The tower mounts directly on the GC and transfers quickly between GC systems. It communicates over HPIB and INET.
What each component does
Carousel injection
Draws each sample from its turret position and injects it onto the GC inlet, using the syringe and syringe carriage housed in the tower.
External control
Runs from a separate controller module (18594A, 18594B, or G1512A) rather than a built-in network connection.
Technical detail
*OEM specifications for brand new instrument.
What “GenTech Certified” means
Refurbishment at GenTech is a defined process, not a wipe-down. Every system moves through the same five stages.
1. Disassembly and rebuild. Solution Scientists strip the instrument down, clean each module inside and out, and rebuild it from the frame up. They replace pump seals, pistons, and check valves to specification.
2. Configuration and new parts. Solution Scientists install the options and modules you selected and fit new wear parts throughout. They replace the detector lamp with a new one and reset the lamp hours.
3. Diagnostic and performance testing. Solution Scientists tune and calibrate the instrument, run system diagnostics, and confirm detector wavelength accuracy. They test full-system pressure and gradient performance against OEM and published benchmarks using known reference chemicals.
4. Data package you approve before shipment. The verification data goes to you for approval before the system leaves the bench. You see exactly how the instrument performs before it ships.
5. Delivery and installation. The instrument ships in protective packing with a one-year warranty option and professional installation available from a GenTech Solution Scientist.
Labs that run this system
The 6890 Tower is method-compatible across the techniques most regulated and research labs run every day. These are the application areas buyers ask about most.
Hydrocarbons and fuels
Solvents and fatty acids
Permanent and fixed gases
Pesticides and halogenated compounds
Nitrogen and phosphorus pesticides
Sulfur and phosphorus compounds
Volatiles and semivolatiles
Residual solvents confirmation
Pesticides and terpenes
Additional Information
Documentation
Financing

Financing Options Available.  Finance Builder.
Need a single detector instead?
Chimney won’t light or expanding an existing system? Every part in this system is available individually, in stock and performance-verified.
[In this system]
Agilent 6890 Series Injection Tower G1513A: Verified
[Each component is individually serialized and performance-verified before the system is assembled and tested as a complete system.]
Turret positions: 1, 3, 6, or 8, depending on carousel
Optional tray: 100-vial tray, added capacity
Cooling fan: Operator-disableable
GC platforms: HP 5890A, 5890 Series II, 6890A
Required controller: 18594A, 18594B, or G1512A
Model: G1513A
OEM: Agilent Technologies
Condition: Refurbished
Financing: Financing Options Available
