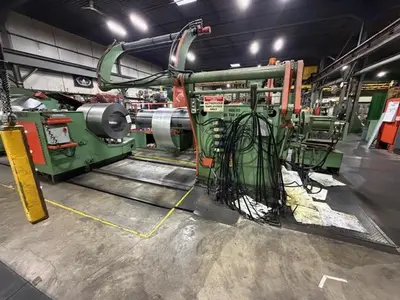

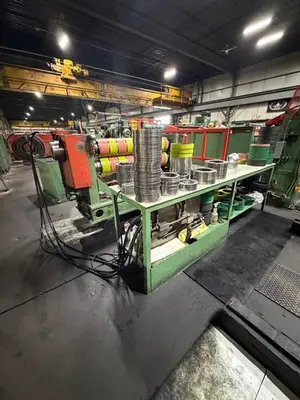

60” x .125" x 40,000 Lbs. UMI Slitting Line

The 60" UMI Slitting Line, manufactured in 1979, is a robust piece of industrial equipment designed for precise slitting operations. This used slitting line can accommodate material with a maximum width of 60 inches and supports coil weights up to 40,000 pounds (20 tons). It is capable of processing material with thicknesses ranging from .010" to .125", catering to a wide range of applications. The equipment operates with a right-to-left line direction and is equipped with slitter arbors measuring 7 inches in diameter.
The slitting line features two slitter heads, each driven by a 75 HP DC motor, ensuring reliable performance. The recoiler has a drum width of 68 inches and a diameter of 20 inches, also powered by a 75 HP DC drive, with a motor speed range of 650 to 1,950 RPM. This setup enhances the line's capability to manage varying speeds and loads efficiently.
Additional components of the system include an above-floor coil car, hydraulic uncoiler with a 40,000 lb capacity, a pinch roll, an X-ray gauge/shear assembly, and a two-head slitter with a three-speed gearbox. It is complemented by a scrap winder, loop pit, tension stand, and hydraulic features such as push-off and separators, making this line suitable for extensive, precision-driven slitting tasks.

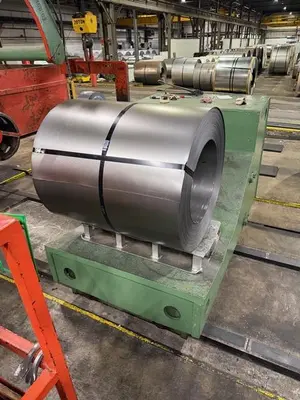

Above-Floor Coil Car
55" Bed Width
Self-Contained Hydraulics
Pendant Operated

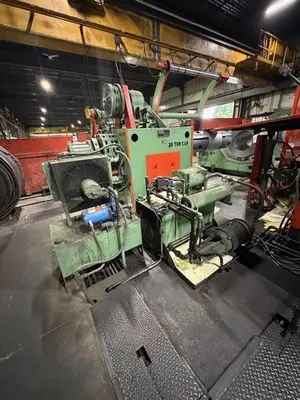

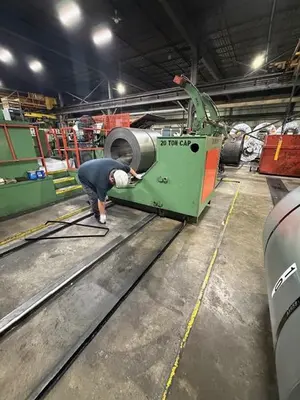

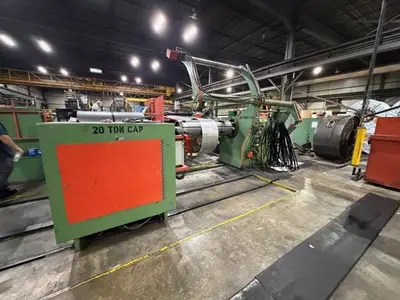

Uncoiler
40,000 lb. (20 Ton) Capacity
Hydraulic Sliding Base
20" - 24" Hydraulic Expansion
Attached Hydraulically Driven Hold-Down Roll
Hydraulic Orbit Motor Feed-Up
Wichita Air Clutch
Wichita Water-Cooled Brake
Peeler
Hydraulic Up and Down
Hydraulic In and Out
Pinch Roll
X-Ray Gauge / Shear Assembly

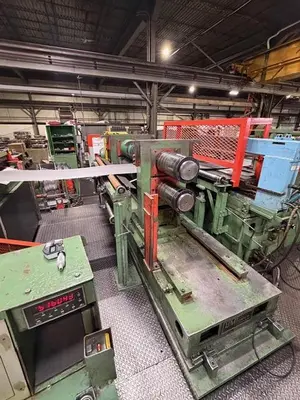

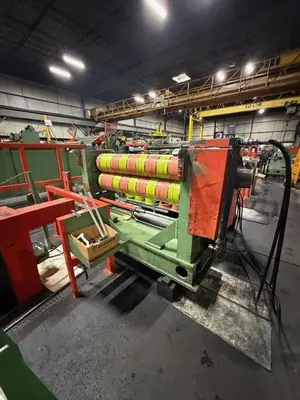

2-Head Slitter
(2) 7" Arbor Slitter Heads

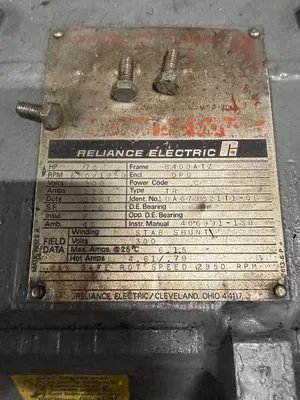

75 HP DC Drive
3-Speed Gearbox
Right-Angle Gearbox
Dog Clutch

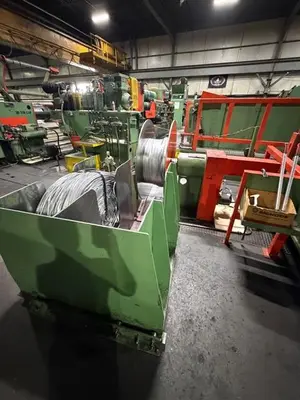

Scrap Winder
Single
Oscillating Eye

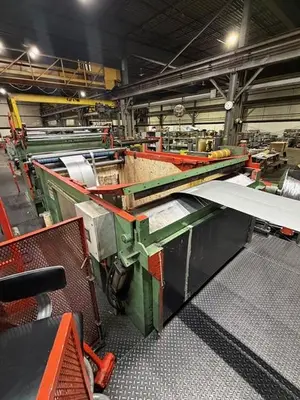

Loop Pit
Carryover Cable from Slitter Head to Tension Stand
Tension Stand
Pad Type
74" Wide

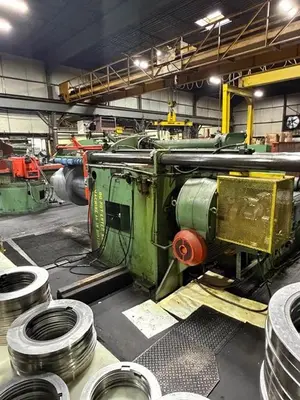

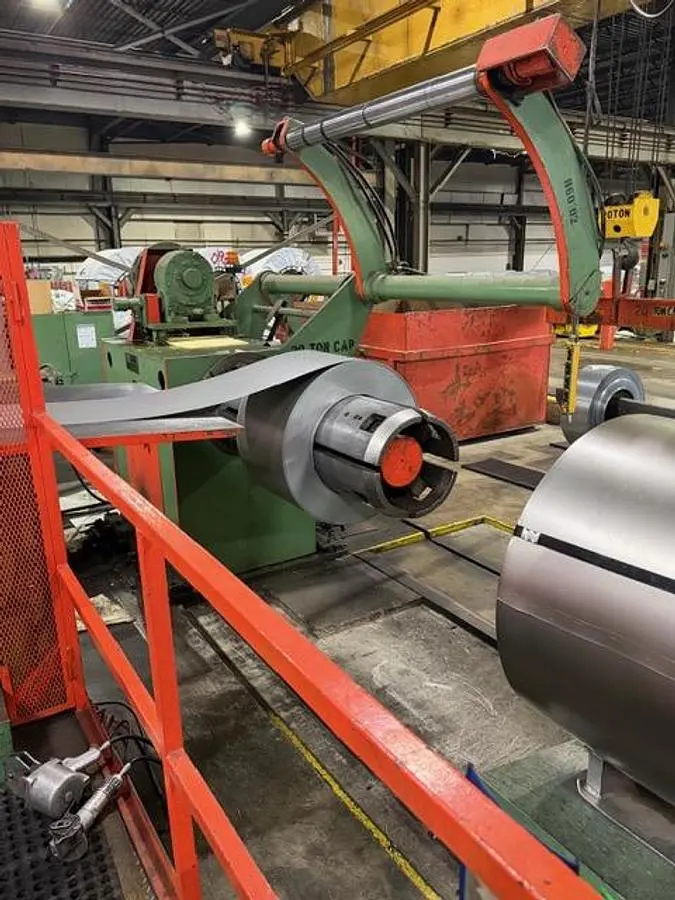

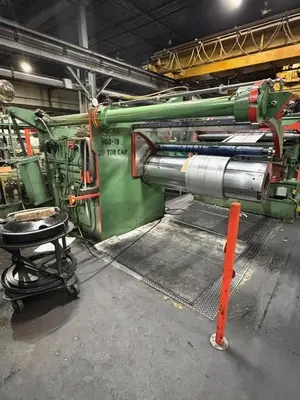

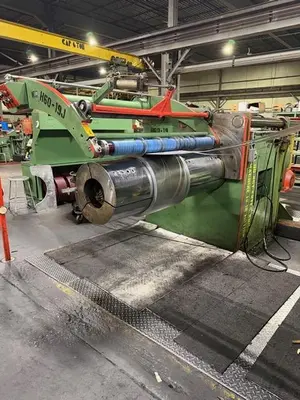

Recoiler
68" Total Drum Width
20" Drum Diameter

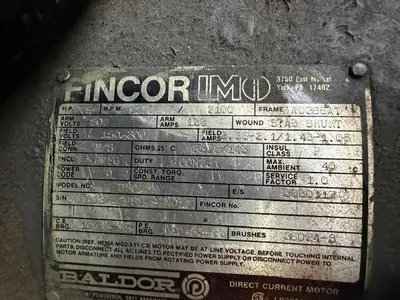

75 HP DC Drive Motor
650/1,950 RPM
3-Speed Gearbox
Right-Angle Drive
Hydraulic Push-Off
Attached Hydraulic Separator
Hydraulic Gripper
