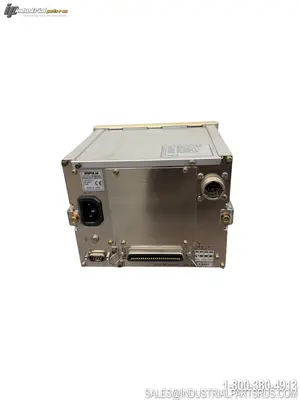

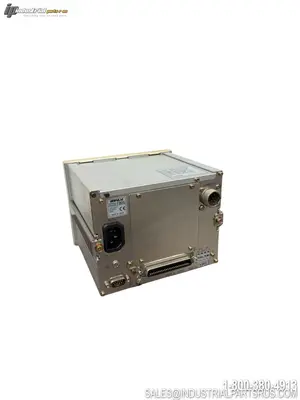

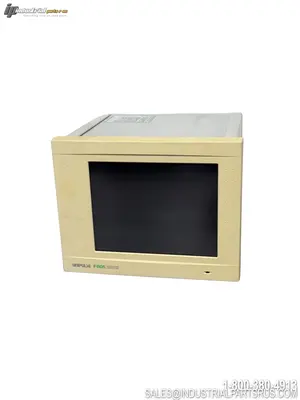

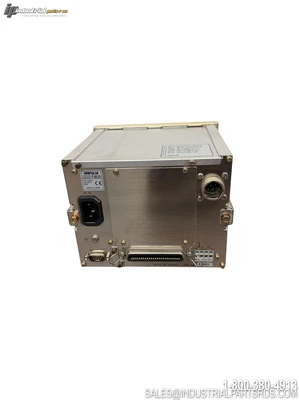

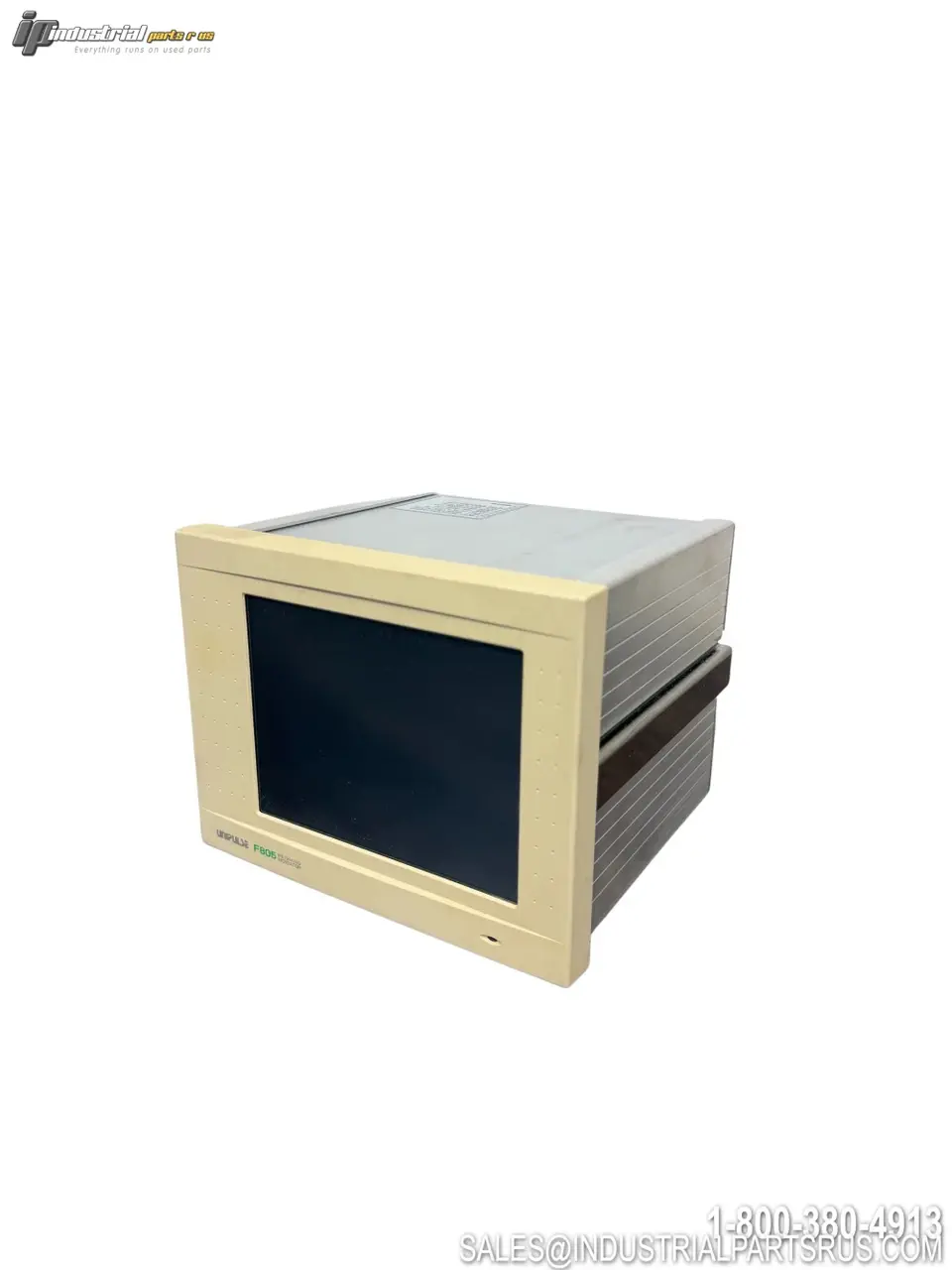

NEW UNIPULSE F805

The Unipulse F805 is a professional-grade all-in-one weighing indicator and load cell controller designed specifically for industrial weighing systems. It features a color LCD touch panel for intuitive operation and high-speed A/D conversion with digital processing, supporting direct interfaces to major PLCs including Mitsubishi CC-Link and OMRON DeviceNet. The F805 is a top-of-the-line loadcell controller platform, manufactured in Japan, capable of managing complex weighing sequences, batch control, and multi-channel communication. The front panel carries an IP54 protection rating, and the unit is both RoHS and EMC compliant (EN61326-1).
Specification
Value
Brand
Unipulse
Model / Part Number
F805
Series
F805
Product Type
Weighing Indicator / Controller (Panel Meter)
Mounting Style
Panel Mount
Input Voltage
100–240V AC
Frequency
50/60 Hz
Number of Phases
1 (Single Phase)
Current Type
AC
Current Rating / Maximum Amperage
0.2 A
Power Consumption
20W
Display Type
Color LCD Touch Panel
A/D Conversion Speed
1000 times/sec
Load Cell Excitation Voltage
10V DC / 5V DC selectable, 120 mA
Load Cell Connection
6-wire (remote sense); up to 4 load cells (350Ω) in parallel at 10V
Load Cell Connector
7-pin Hirose JR type
Standard Interfaces
SIF (2-wire serial), SI2 (2-wire bi-directional serial), RS-232C
Optional Interfaces
RS-485, BCD parallel output (BCO), BCD parallel input (BCI), D/A converter (DAC), CC-Link, DeviceNet
PLC Compatibility
Mitsubishi CC-Link, OMRON DeviceNet
Max Interface Options
Up to 4 options (serial communication = 1 option)
Front Panel Protection Rating
IP54
Material
ABS Plastic / Metal Chassis
Packaging
Unboxed
RoHS Compliant
Yes
EMC Compliance
EN61326-1
Application
Industrial weighing systems, batch control, bagging, formula weighing, check scales
Manufacturer
Unipulse Corporation
We warranty all items for 30 days from date of purchase.
