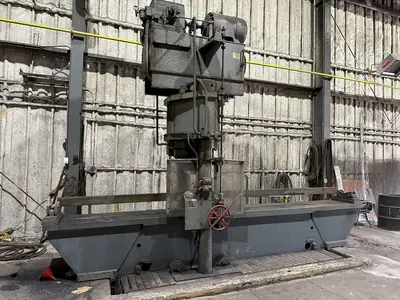

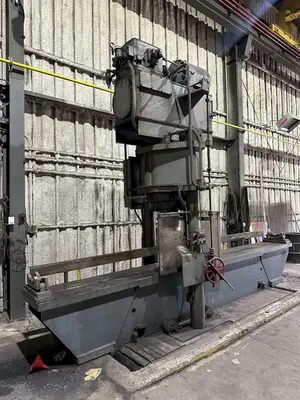

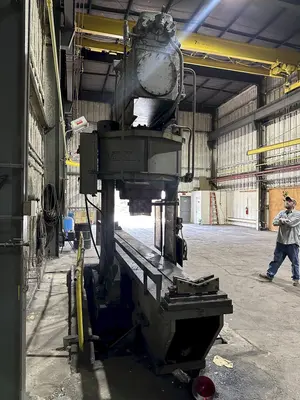

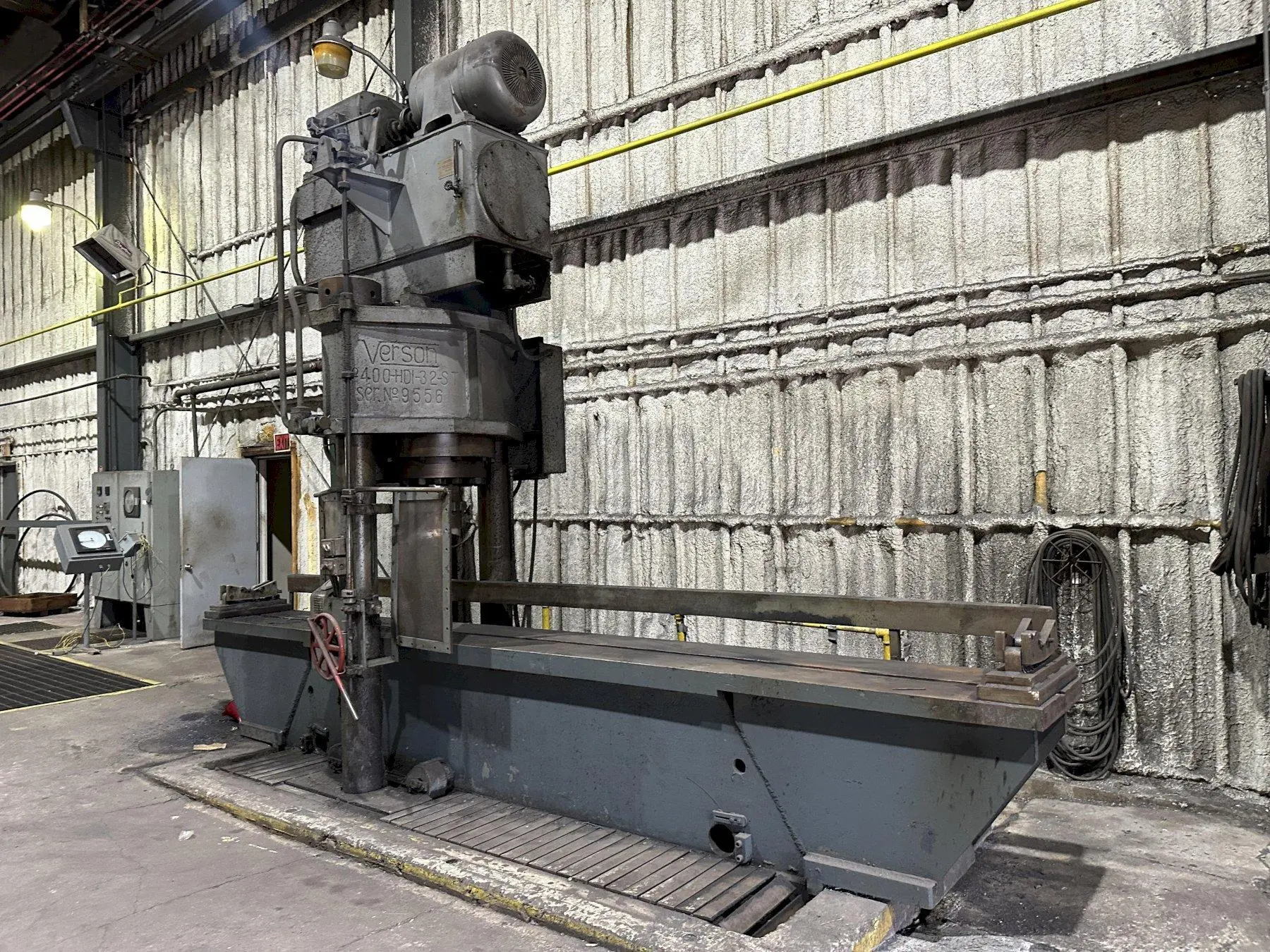

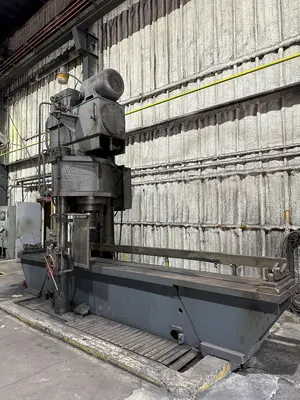

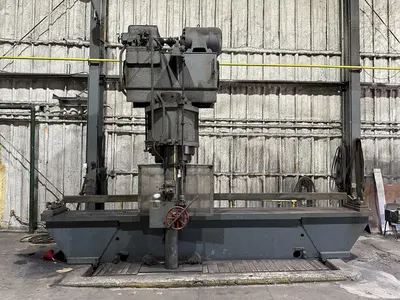

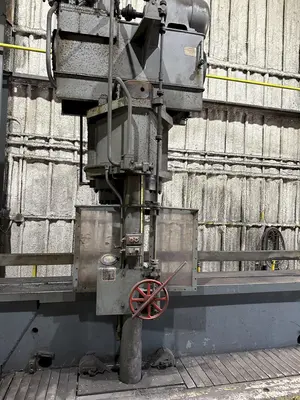

400 TON X 18' VERSON TRAVELING HEAD HYDRAULIC STRAIGHTENING PRESS: STOCK #23095

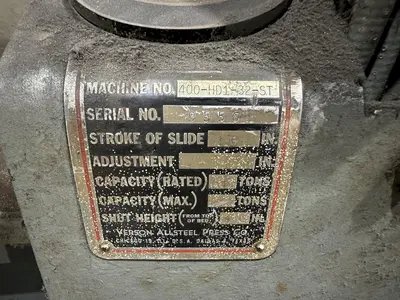

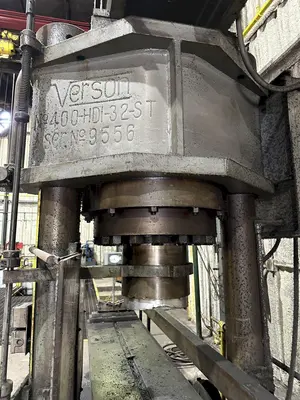

SERIAL ....................... 9556
MODEL ........................ 400-HD1-32-ST
TONNAGE CAPACITY ............. 400 TON
STROKE OF RAM ................ 15"

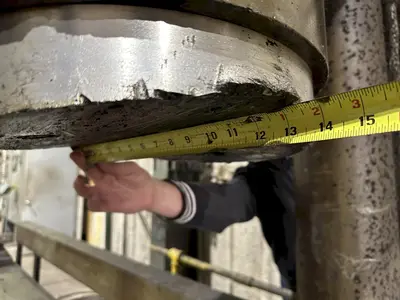

RAM BORE DIAMETER ............ 12"

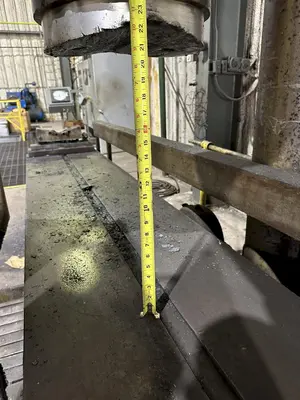

DAYLIGHT RAM TO BED .......... 22" MAX
LENGTH OF TABLE .............. 18'

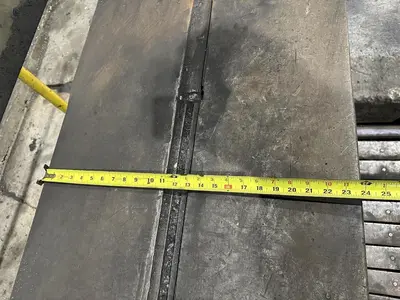

WIDTH OF TABLE ............... 24"
DISTANCE BETWEEN POSTS ....... 31"
TABLE HEIGHT FROM FLOOR ...... 36"
PRESS HEAD TRAVERSE .......... 12' - POWERED

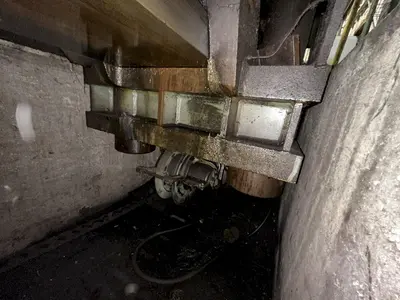

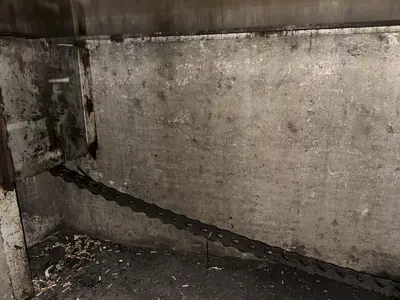

PRESS HEAD TRAVERSE .......... CHAIN DRIVEN
PRESS HEAD DESIGN ............ 2-POST, TIE-ROD
TONNAGE CONTROL .............. HAND LEVER

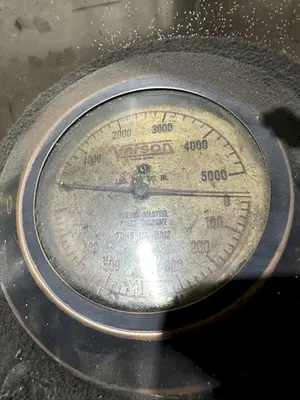

TONNAGE PRESSURE GAUGE ....... YES
PUSH BUTTON TABLE CONTROLS ... YES

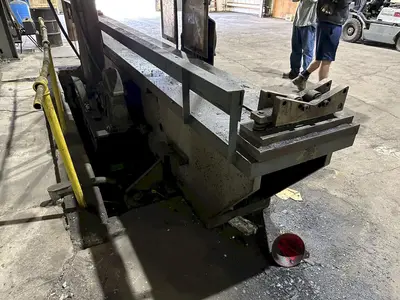

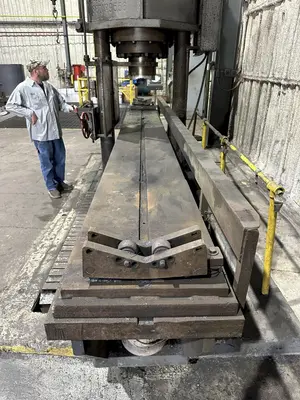

"V" STYLE PUSH BLOCKS ........ YES, MOVABLE ON BED
HYDRAULIC UNIT - FOR PRESS ... 15 HP

Brand
VERSON
Type
Presses, Straightening
Stock No.
23095
