USED SCHWARZE ROBITEC SCHWARZE ROBITEC

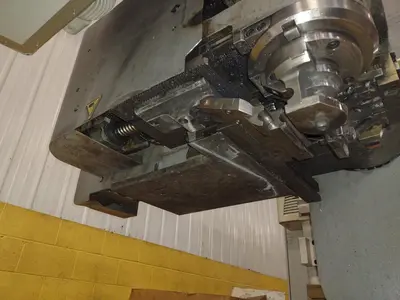

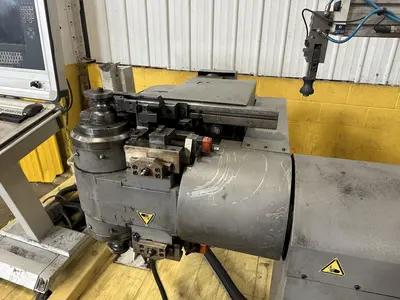

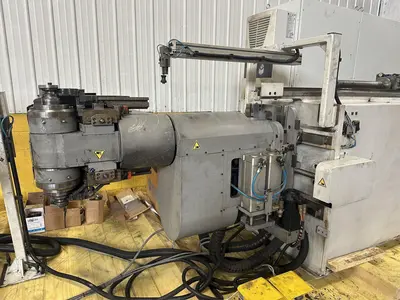

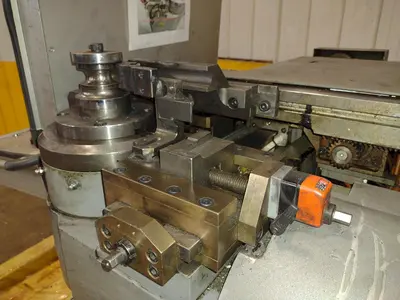

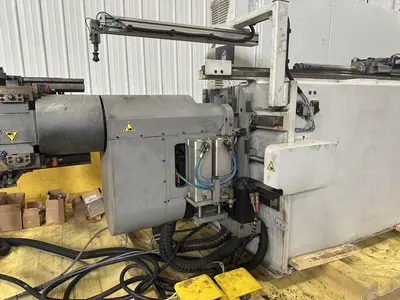

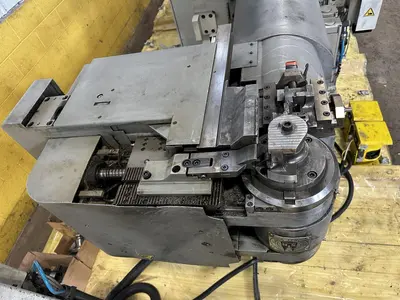

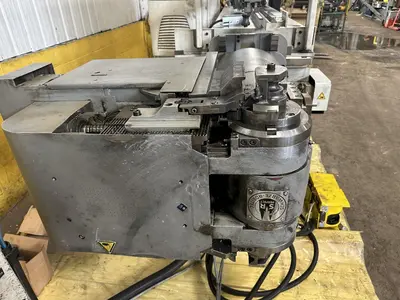

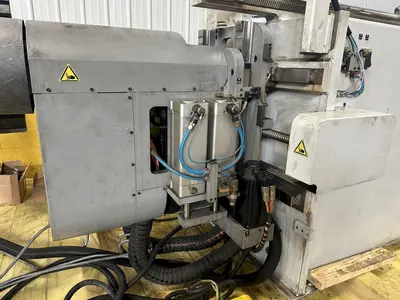

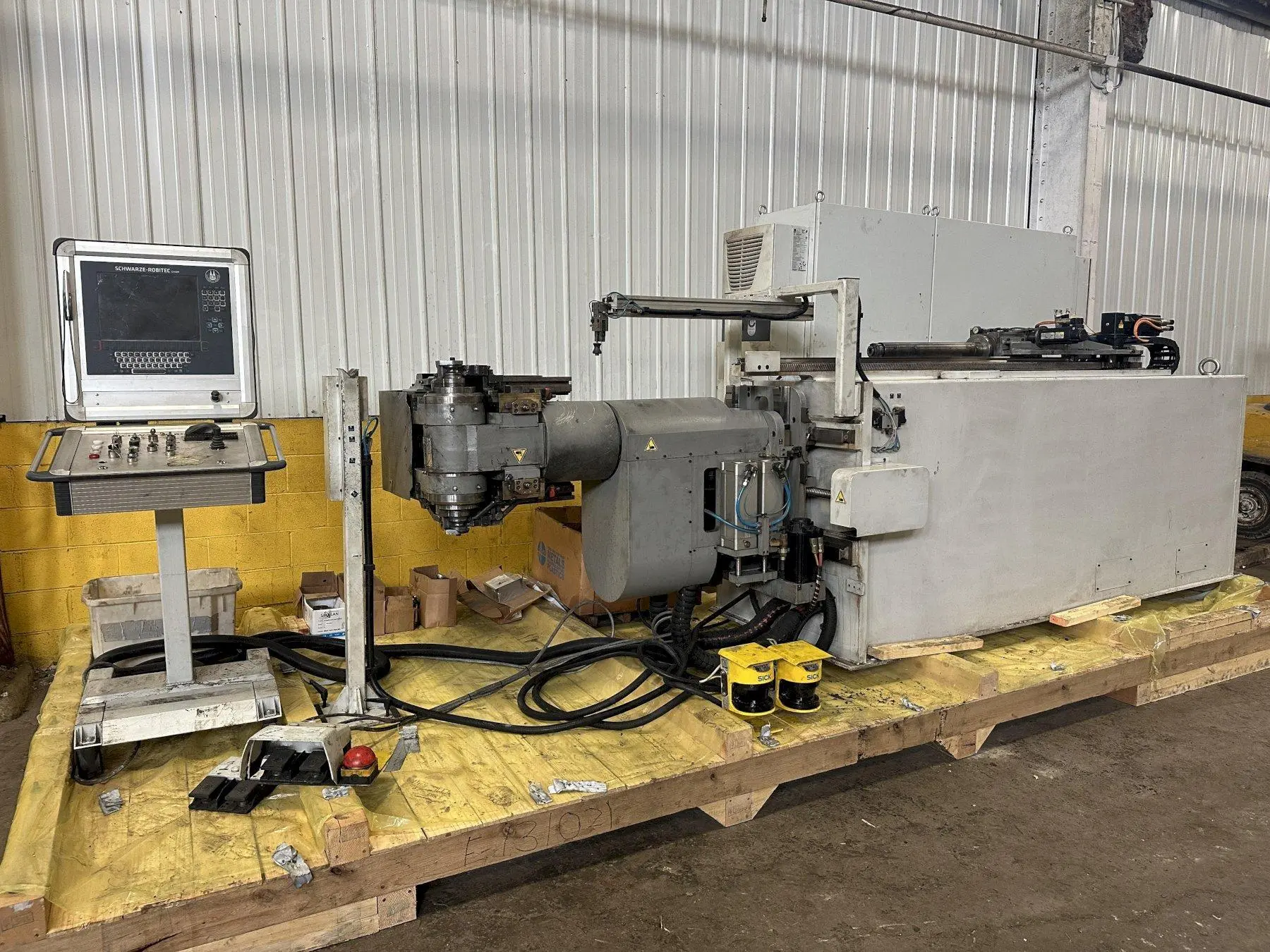

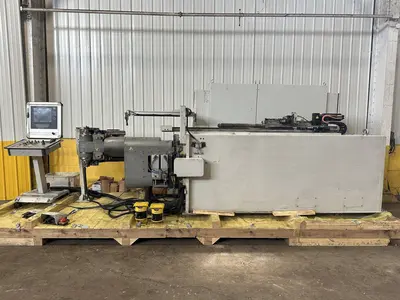

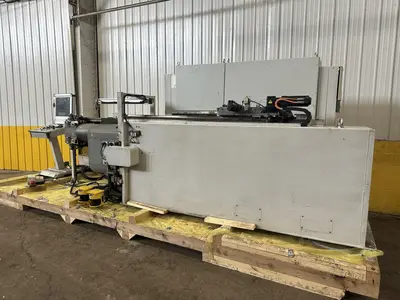

Schwarze Robitec CNC 40 Rotary 6 Axis Tube Bender

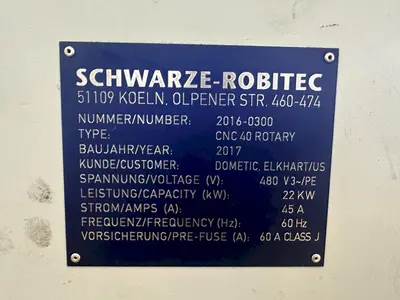

Model: Schwarze Robitec
Year: 2017
Type: CNC 40 Rotary
Tube Capacity: 1.25 collet
Max centerline radius: 5.9''
Max bending rotation: 185 degrees
Bending rotation: left to right
New tooling in 2021
New PC Board 2024
Technical Data

Max. bending capacity of the machine: tube OD x wall thickness
standard steel: 40 x 2 mm 1.57 x 0.08 In
stainless steel: 32 x 1,5 mm 1.26 x 0.06 In

Max. modulus of section: approx. 2,2 cm³ 0.9 In³

Max. tensile strength of material to be bent:
Standard steel: 450 N/mm²
Stainless steel: 750 N/mm²

Min. tube OD: 8 mm 0.31 In

Max. bending radius (CLR): 125 + 25 mm 4.9 + 0.98 In
Min. bending radius (CLR): 10 mm 0.39 In

Max. tube length: 2000 mm 6.56 feet

Max. bending angle: 185°
Max. bending angle accuracy: ± 0,1°

Max. bending speed:
forward, steplessly adjustable and

programmable from CNC panel: 45,0 1/ min.
return, constant: 45,0 1/ min.

Bending direction: Right – Left


Total power requirement: 25 kW
Operating voltage: 400 V, 50 Hz, 3 Phases, PE, N
Control voltage: 24 V=
Solenoid valve voltage: 24 V=
Colour:

Machine: RAL 7035 light grey
Moveable parts: RAL 7037 dust grey

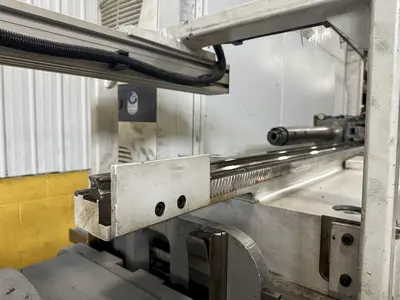

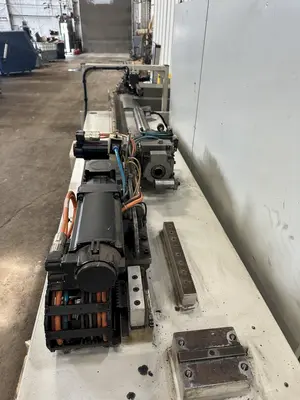

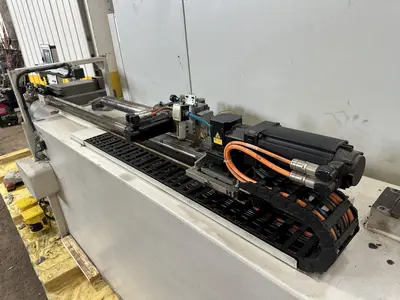

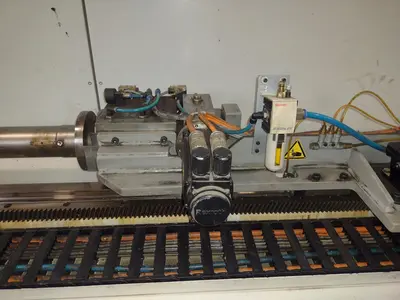

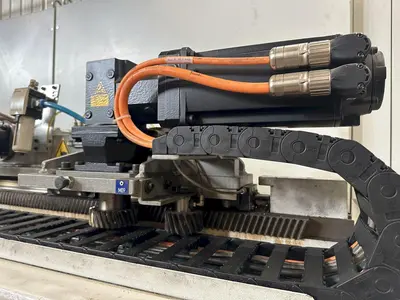

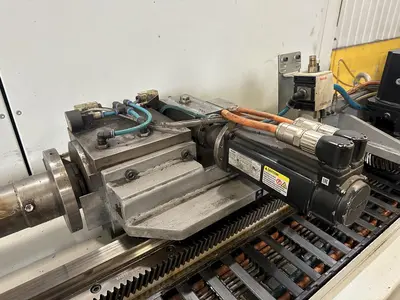

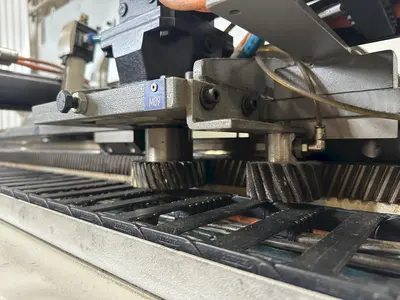

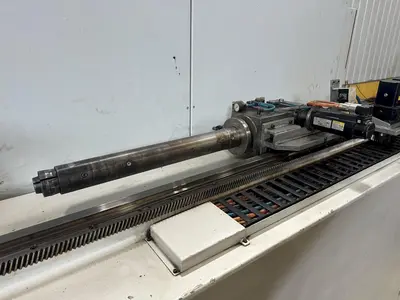

Tube positioning device (Transport and Orientation)

Max. orientation angle: 360°
Max. orientation accuracy: ± 0,1°
Max. orientation speed: 120 1/ min.
Max. transport speed: 65 m/ min. 213 ft/ min.
Transport accuracy: ± 0,1 mm

(Speeds are steplessly adjustable and programmable from control panel.)
Weight of machine: approx. 4.000 kg 8,800 Lbs.
ALL SPECIFICATIONS ARE SUBJECT TO BUYER'S VERIFICATION
Brand
SCHWARZE ROBITEC
Type
Benders, Tube, Electric
Stock No.
23111
