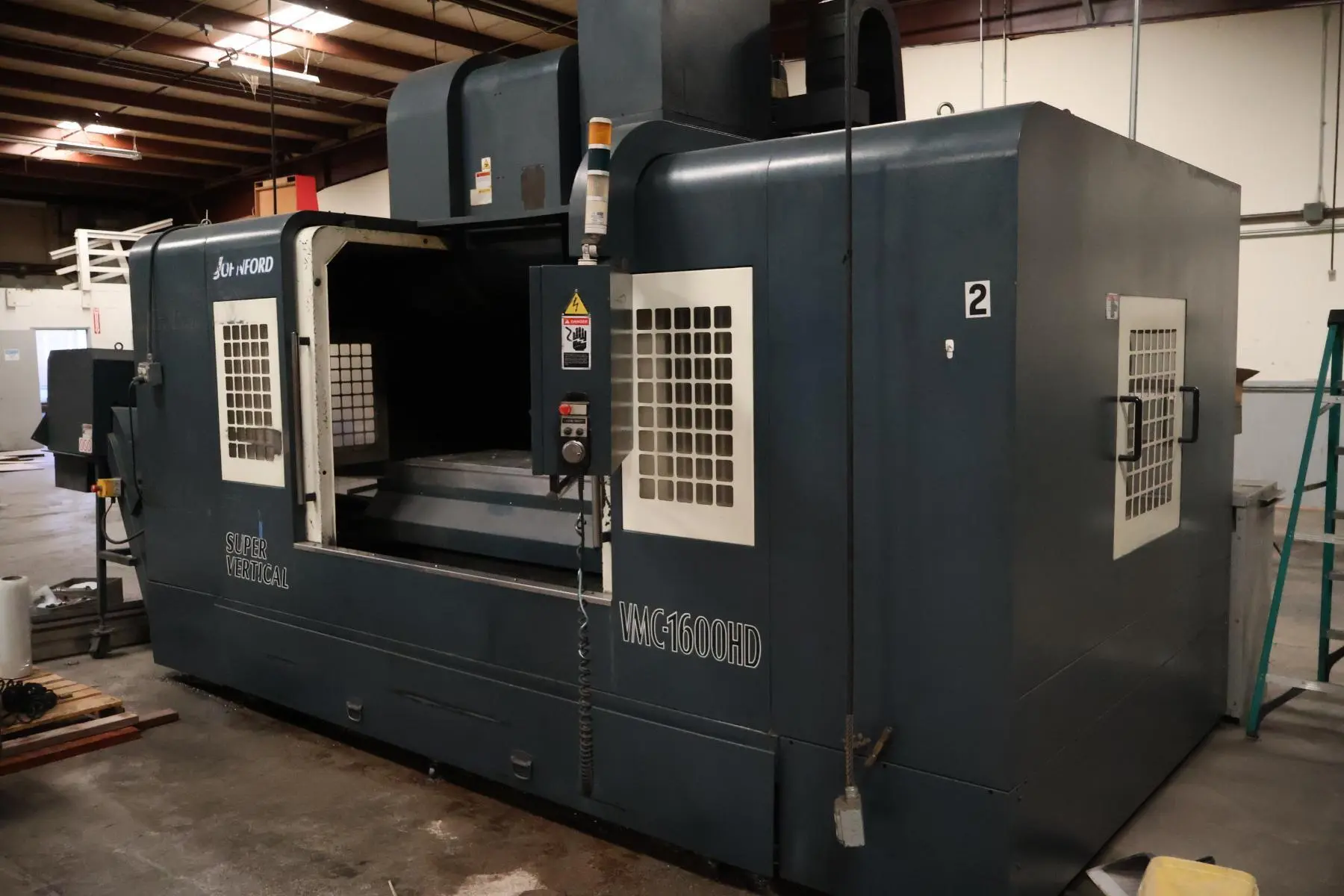

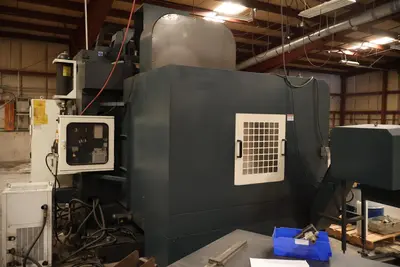

USED 2011 JOHNFORD VMC-1600HD

CNC Vertical Machining Center
Manufacturer: Roundtop Machinery Industries (Taiwan)
Model: Johnford VMC-1600HD
DOM: November 2011
Electrics: 220 Volt, 3 Phase, 60 Cycle, 136 Amps
Main Motor: 25 HP
Hours (see pic):
...Run Time: 15,119
...Part Count: 10,277

Features and Specifications:
...Fanuc Oi-MD CNC Controls
...Table Size: 70.9" x 29.5"
...Table Load Capacity: 10,000 lbs.
...Travels:
......X-Axis: 63”
......Y-Axis: 33.5”
......Z-Axis: 28”
...Spindle Speed: 6,000 RPM
...Spindle Taper: CT50
...ATC: 24, Vertical Side-Mount Orientation
...Feeds:
......Standard Traverse: 472.4 IPM
......Rapid Traverse: X,Y - 708.7 IPM / Z - 472.4 IPM
...Spindle Center - Column: 34.8"
...ATC: 24 Slots, 32 Optional
...Rigid Tapping
...Coolant Tank & Pump
...Oil Cooler
...Transformer
...Chip Conveyor
...Heavy Duty, Box Way Design

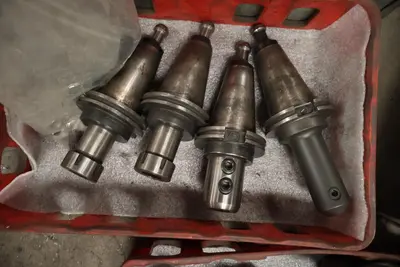

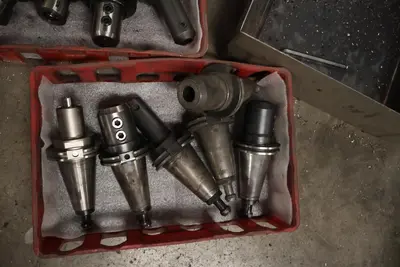

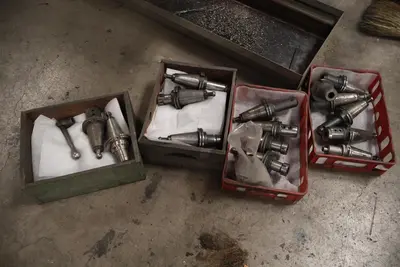

...Toolholders (see pic)

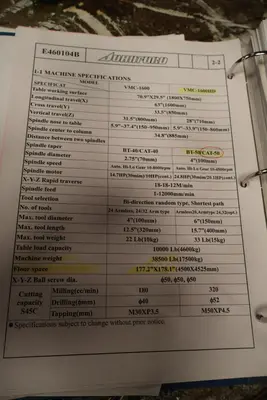

...Manuals/Documentation

Main CNC Dimensions (approx.): 178” x 147" x 130"
Chip Conveyor (approx.): 195" x 24" x 68"
Equipment Weight (approx.): 38,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Original owner. Machine ran only 1 part in its life. Current owner is relocating shop and has decided to not take this machine with them. Machine is presently under power and available for inspection and testing. However, owner is under gun to get it moved; have given me to end of September to have it moved from a building already emptied and sold. Machine is solid, good runner; 50 taper unit with rigid construction and box ways. Good metal hogger.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is under power; available for inspection.
Buyer responsible for loading equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
