USED 2020 SCM STEFANI XD

Lot Closes:: 9/30/2026 10:00:00 AM PT

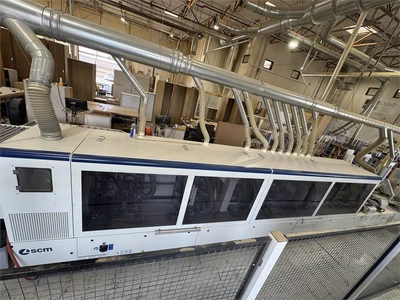

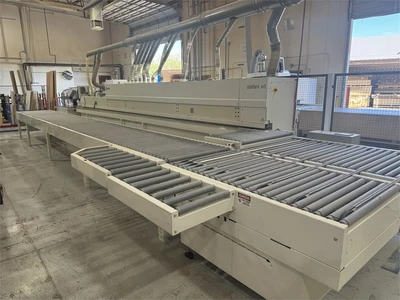

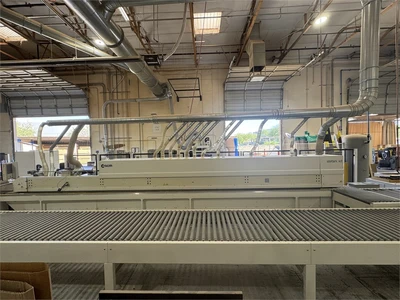

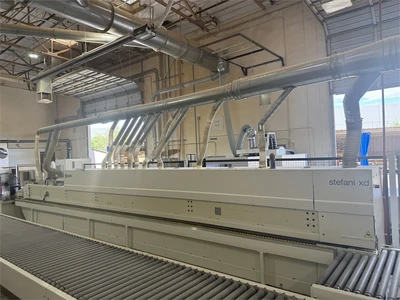

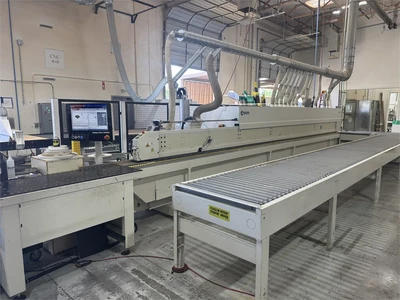

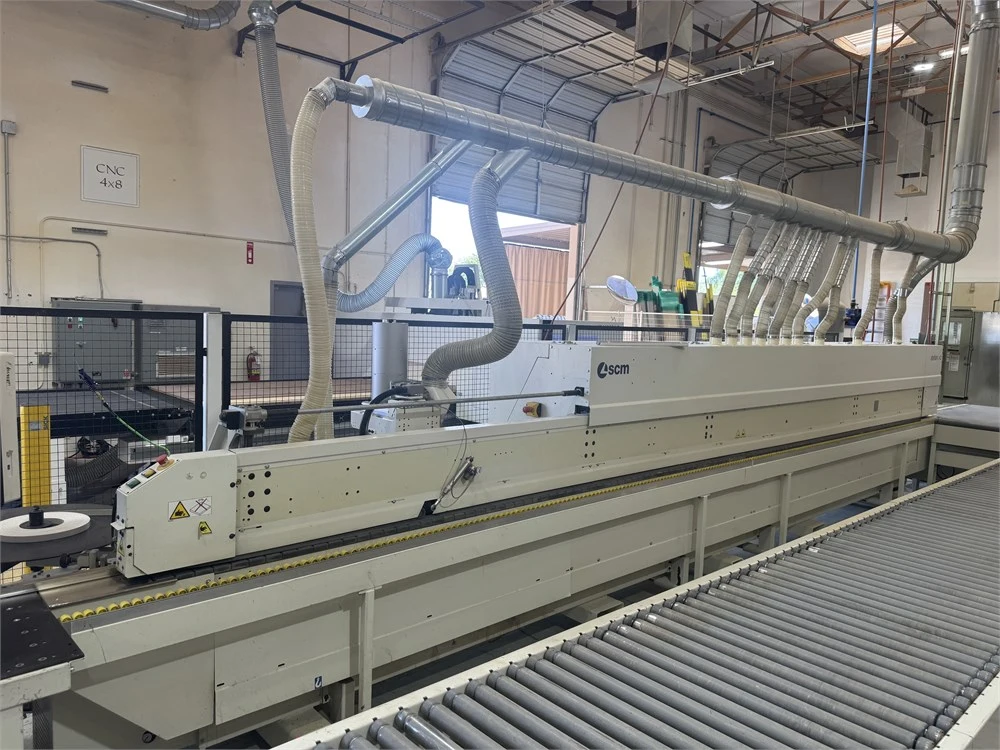

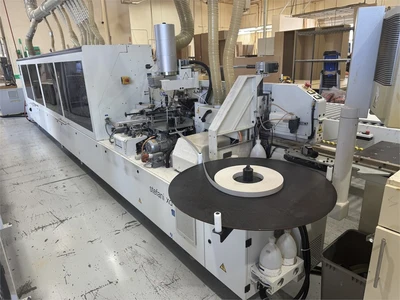

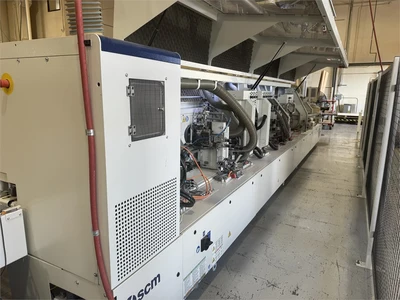

SCM "Stefani XD" Edgebander
See video of machine in operation
10 mm - 60 mm (3/8" – 2 3/8") panel thickness
0.4 mm - 22 mm (7/8") edge thickness
140 mm (5-1/2”) minimum panel length, 220 mm (8-5/8”) with corner rounding
630 mm (24-5/8”) minimum panel spacing
12 M/Min. - 25 M/Min. (40 FPM - 82 FPM) feed speed
Motorized top beam positioning

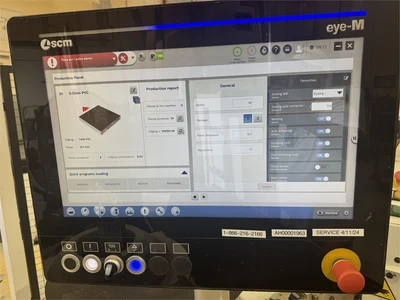

Touch screen controller

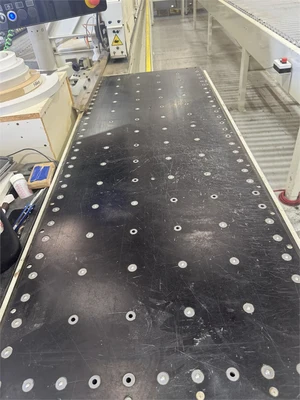

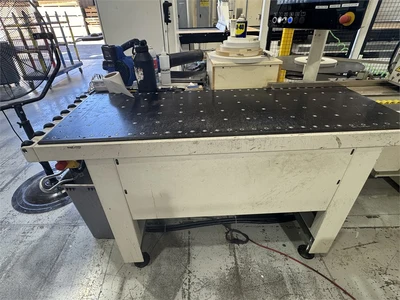

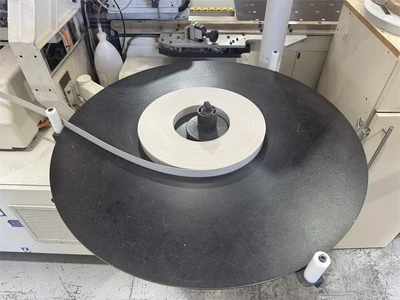

Edgebanding infeed table
Adjustable infeed fence
Edgebanding infeed table
Anti-adhesive spray
(2) motor premilling station, 5.4 HP motors operating @ 12,000 RPM

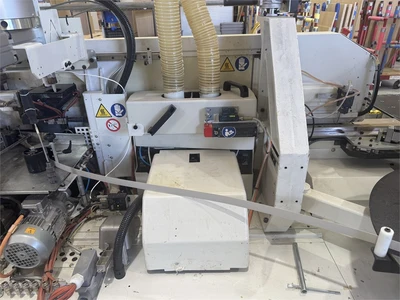

Glue pot with application roller
Pressure station
(2) motor end trimming station, 1 HP motors operating @ 12,000 RPM, automatic tilt (0 - 22 degrees)
Top/bottom rough trimming station, 2.5 HP motors operating @ 12,000 RPM, tiltable 30 degrees
Top/bottom fine trimming station, 1.5 HP motors, fixed tilt @ 20 degrees
(2) motor corner rounding station, 0.5 HP motors operating @ 12,000 RPM
Top/bottom profile scraping station with external collection box
Top/bottom flat scraping station
Top/bottom buffing station, 0.4 HP motors operating @ 1,500 RPM
Top/bottom hot air blower station
Sound enclosure
Outboard roller support

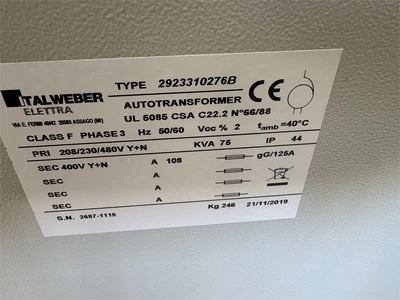

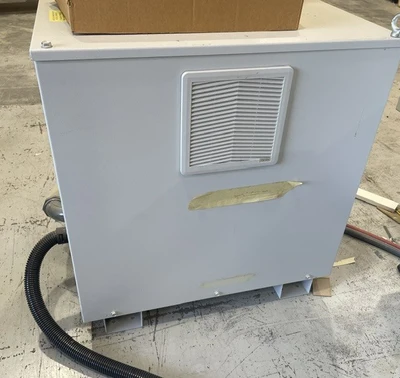

External electrical transformer

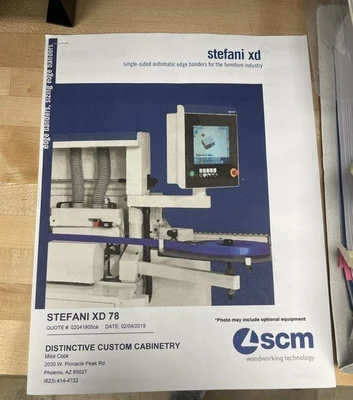

Manuals
Return conveyor NOT included, offered in lot 002
Dust manifold NOT included
