USED SQUARE D TDF63

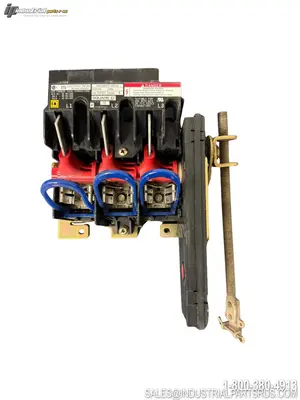

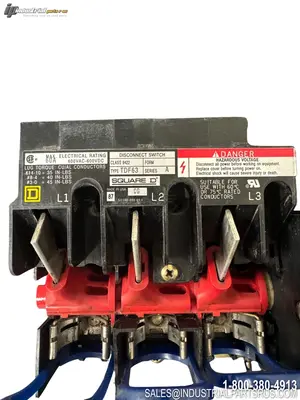

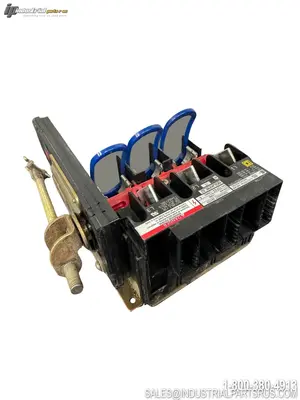

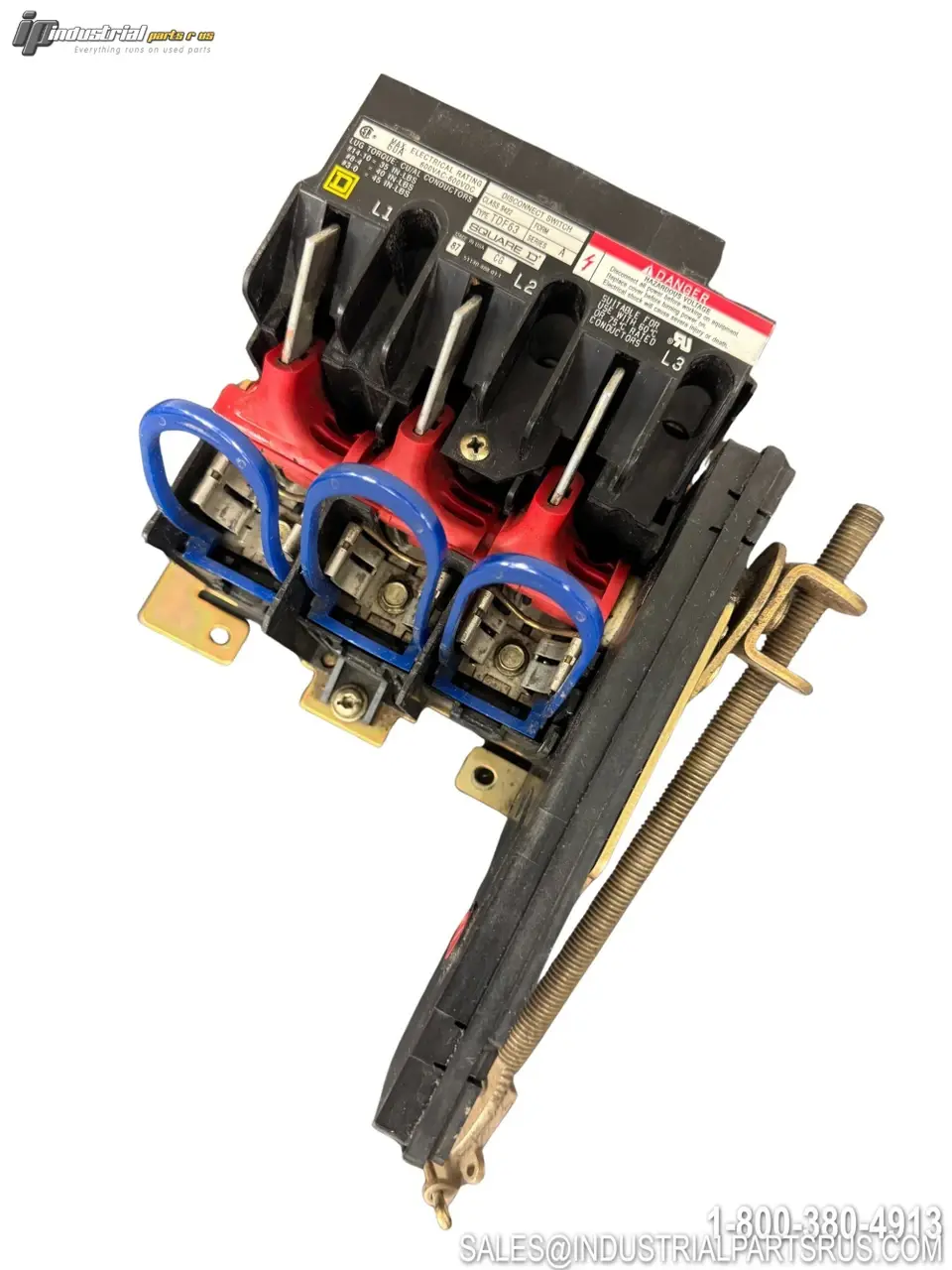

The Square D 9422TDF63 (TDF63) is a fusible, rod-operated, variable-depth disconnect switch designed for control panel installations. It provides a safe means of isolating electrical circuits and accepts Class H, J, K, or R fuses rated up to 60 amps at 600V AC. The switch is flange-mounted with a variable mounting depth range and is compatible with 9422A handle operators and 9423 door closing mechanisms (handles ordered separately).
Specification
Value
Brand
Square D (Schneider Electric)
Model / Catalog Number
9422TDF63 (TDF63)
Product Series
9422T
Product Type
Fusible Variable-Depth Disconnect Switch
Amperage Rating
60 A
Voltage Rating (AC)
600 V AC
Voltage Rating (DC)
250 V DC (max)
Number of Poles
3
Phase
3-Phase
Contact Form
3PST
Fuse Class
Class H, J, K, R
Mounting Type
Flange Mount, Variable Depth
Mounting Depth Range
6.63 to 18.00 inches
Actuator / Handle Type
Type A Handle (9422A) — ordered separately
Operation Type
Rod Operated
Terminal Type
Lug Terminal
Wire Range (Copper)
#14 to #2 AWG
Wire Range (Aluminum)
#10 to #2 AWG
HP Rating @ 208/240 VAC
15 HP
HP Rating @ 480 VAC
30 HP
HP Rating @ 600 VAC
50 HP
HP Rating @ 250 VDC (2-pole)
10 HP
Housing Material
Non-Metallic
Approvals / Certifications
UL Component Recognized, CSA Certified, RoHS Compliant
UL File No.
E52639
CSA File No.
LR44199 Class 4652-04
Compatible Handle Operators
9422A
Compatible Door Closing Mechanism
9423
Depth
2-1/2 in
Height
3-1/4 in
We warranty all items for 30 days from date of purchase.
