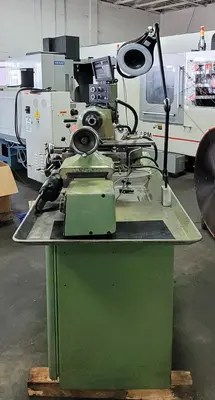

USED HARDINGE BROTHERS HLV-H

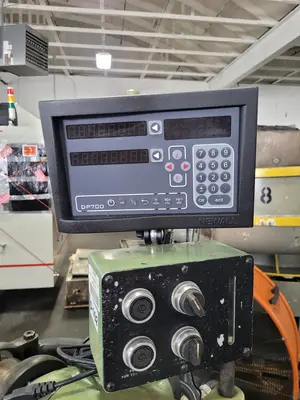

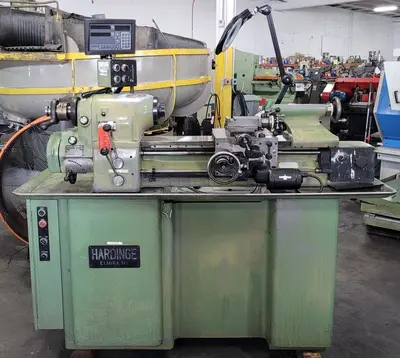

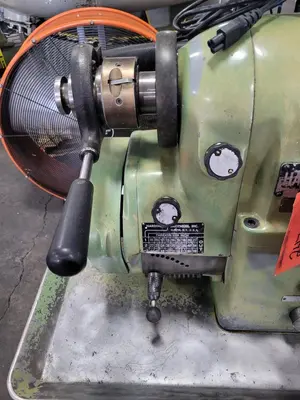

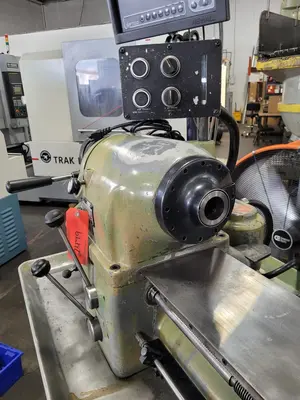

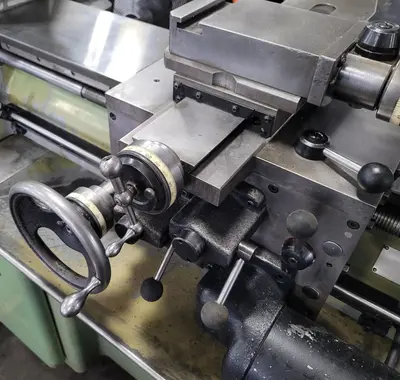

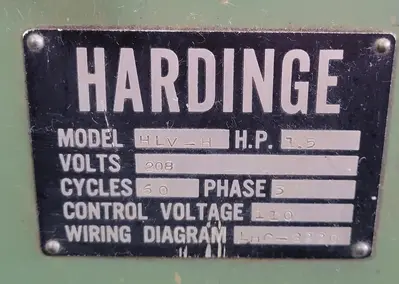

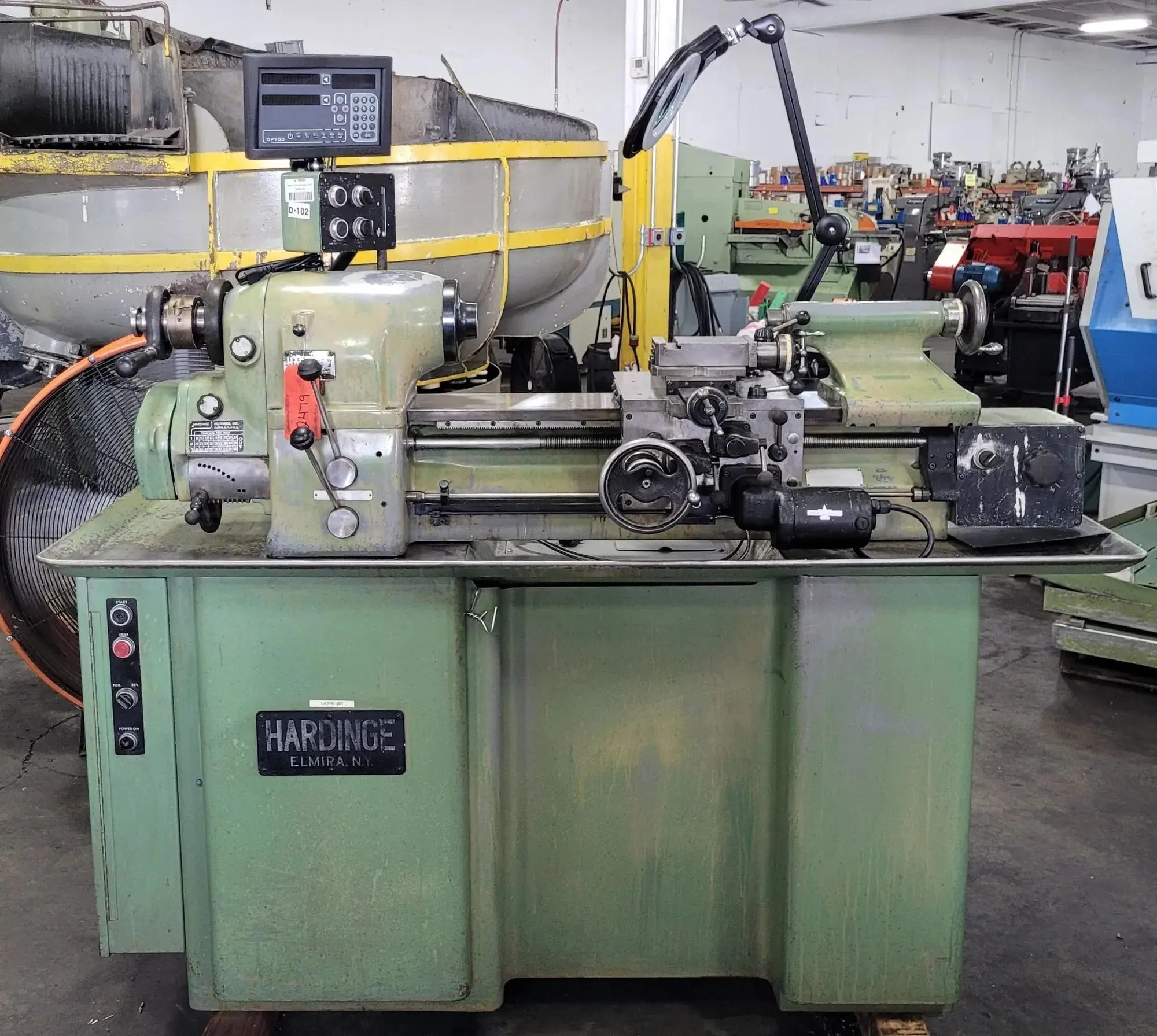

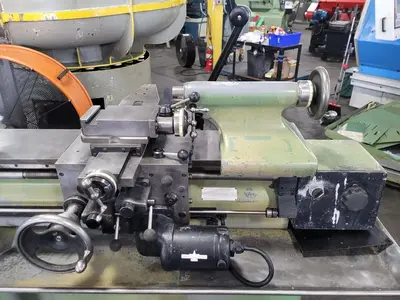

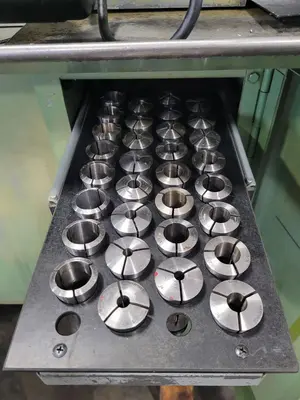

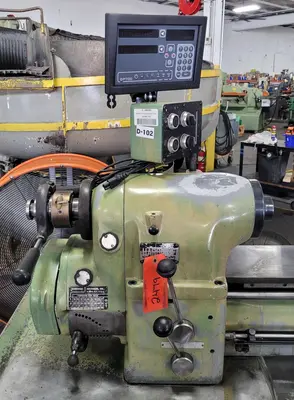

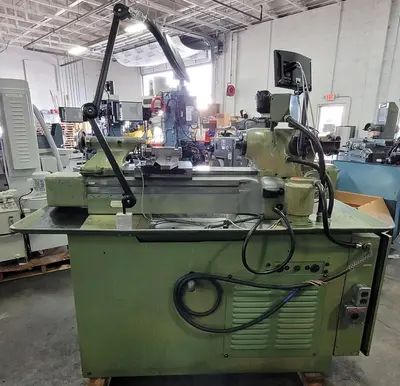

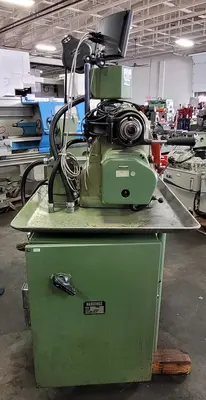

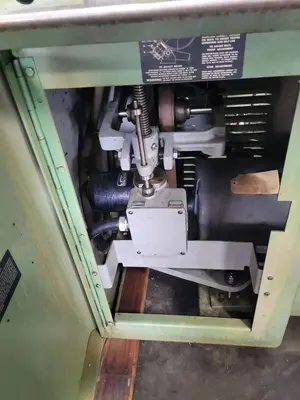

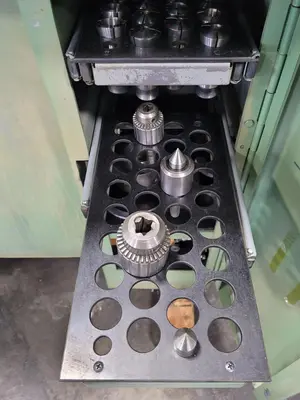

The Hardinge HLV-H Wide Bed Tool Room Lathe is a high-precision metalworking machine equipped with a 2-axis Newall DP700 digital readout (DRO), a 5C collet closer, and a quick-change toolpost. Powered by a 1.5 HP variable-speed motor operating at 208V, 60 Hz, 3-phase, it offers variable spindle speeds ranging from 125 to 3,000 RPM and features a Hardinge tapered spindle nose with a 1.25-inch spindle bore. The lathe features an 11-inch maximum swing over the bed, a 9-inch swing over the carriage, and a 5.75-inch swing over the cross slide. Distance between centers is 18 inches with the tailstock flush and extends to 20 inches when overhung. Additional operational specifications include a 3-inch compound slide travel, a tailstock spindle travel of 3.75 inches with a No. 2 Morse taper, and a power feed range from 0.25 to 7 IPM (longitudinal feed rate of 0.31 to 7 IPM and cross feed rate of 0.18 to 4 IPM). The machine measures approximately 72 x 32 x 72 inches and weighs between 2,500 and 2,700 pounds.
