USED ALFA LAVAL TK20 BWFX

Manufacturer Information:
Alfa Laval is a manufacturer of heat transfer, separation, and fluid handling equipment used across a range of industrial processing applications. This unit is an Alfa Laval Model TK20-BWFX plate heat exchanger built in 2023.
Main Product Description:

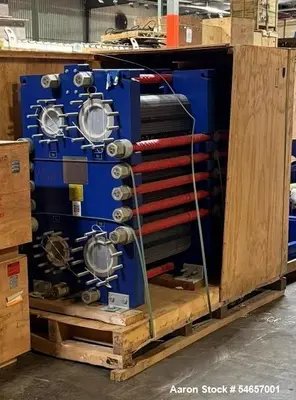

Unused Alfa Laval Model TK20-BWFX plate heat exchanger with approximately 1,118 sq. ft. (103.90 m²) of heat transfer surface area. The unit is equipped with 126 plates constructed of 316 stainless steel with 0.8 mm plate thickness and EPDMC gasket material. Each side is rated for 580 PSI at 212°F, with a rated heat load of 8,127 kW. Connections include two 6-inch primary inlet and outlet connections and two 8-inch secondary inlet and outlet connections. Built in 2023, the heat exchanger carries Serial No. AAM1007904 and National Board No. 4696. Overall dimensions are approximately 84 inches x 36 inches x 61 inches tall, with an approximate weight of 8,800 lbs. Documentation is available. Suitable applications may include industrial heating, cooling, and heat recovery duties using compatible liquid process streams.
Specifications:

Manufacturer: Alfa Laval
Model: TK20-BWFX
Equipment Type: Plate heat exchanger
Condition: Unused
Year Built: 2023
Heat Transfer Surface Area: 1,118 sq. ft. (103.90 m²)
Number of Plates: 126
Plate Material: 316 stainless steel
Plate Thickness: 0.8 mm
Gasket Material: EPDMC
Pressure Rating: 580 PSI at 212°F on each side
Rated Heat Load: 8,127 kW
Primary Connections: (2) 6-inch inlet and outlet connections
Secondary Connections: (2) 8-inch inlet and outlet connections
Serial Number: AAM1007904

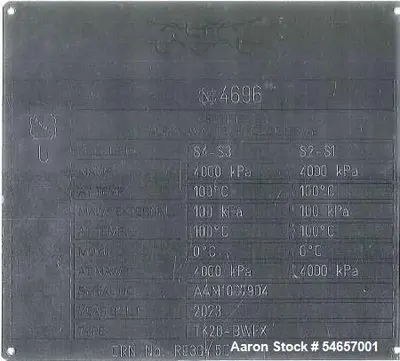

National Board Number: 4696
Overall Dimensions: Approximately 84" x 36" x 61" tall
Approximate Weight: 8,800 lbs.
Documentation: Available

Applications:

Industrial process heating
Industrial process cooling
Heat recovery systems
Process liquid temperature control
Energy recovery duties
Liquid-to-liquid heat transfer
Suitable process heating and cooling loops

Suitable Products / Materials:

Liquid process streams compatible with 316 stainless steel plates
Fluids compatible with EPDMC gasket material
Process water
Heating and cooling liquids
Compatible industrial process fluids

FAQs:

What model Alfa Laval heat exchanger is this?
This unit is an Alfa Laval Model TK20-BWFX plate heat exchanger.
What is the heat transfer surface area?
The heat exchanger provides approximately 1,118 sq. ft. (103.90 m²) of heat transfer surface area.
What material are the heat exchanger plates?
The unit has 126 plates constructed of 316 stainless steel with a plate thickness of 0.8 mm.
What is the pressure rating?
Each side is rated for 580 PSI at 212°F.
What is the rated heat load?
The rated heat load is 8,127 kW.
Is this Alfa Laval heat exchanger used?
The unit is listed as unused and was built in 2023.
What connection sizes are included?
The unit has two 6-inch primary inlet and outlet connections and two 8-inch secondary inlet and outlet connections.
Is documentation available?
Yes. Documentation is available with the unit.
What applications is this plate heat exchanger suitable for?
Possible applications include industrial heating, cooling, heat recovery, and other liquid-to-liquid heat transfer duties where the process fluids are compatible with the 316 stainless steel plates and EPDMC gaskets.
Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can assist with coordinating freight and shipping options for industrial equipment. The unit weighs approximately 8,800 lbs., so appropriate industrial freight arrangements should be considered.
How can Aaron Equipment help with this Alfa Laval heat exchanger?
Aaron Equipment can provide additional equipment information, available documentation, assistance with logistics, and support throughout the equipment purchasing process.
