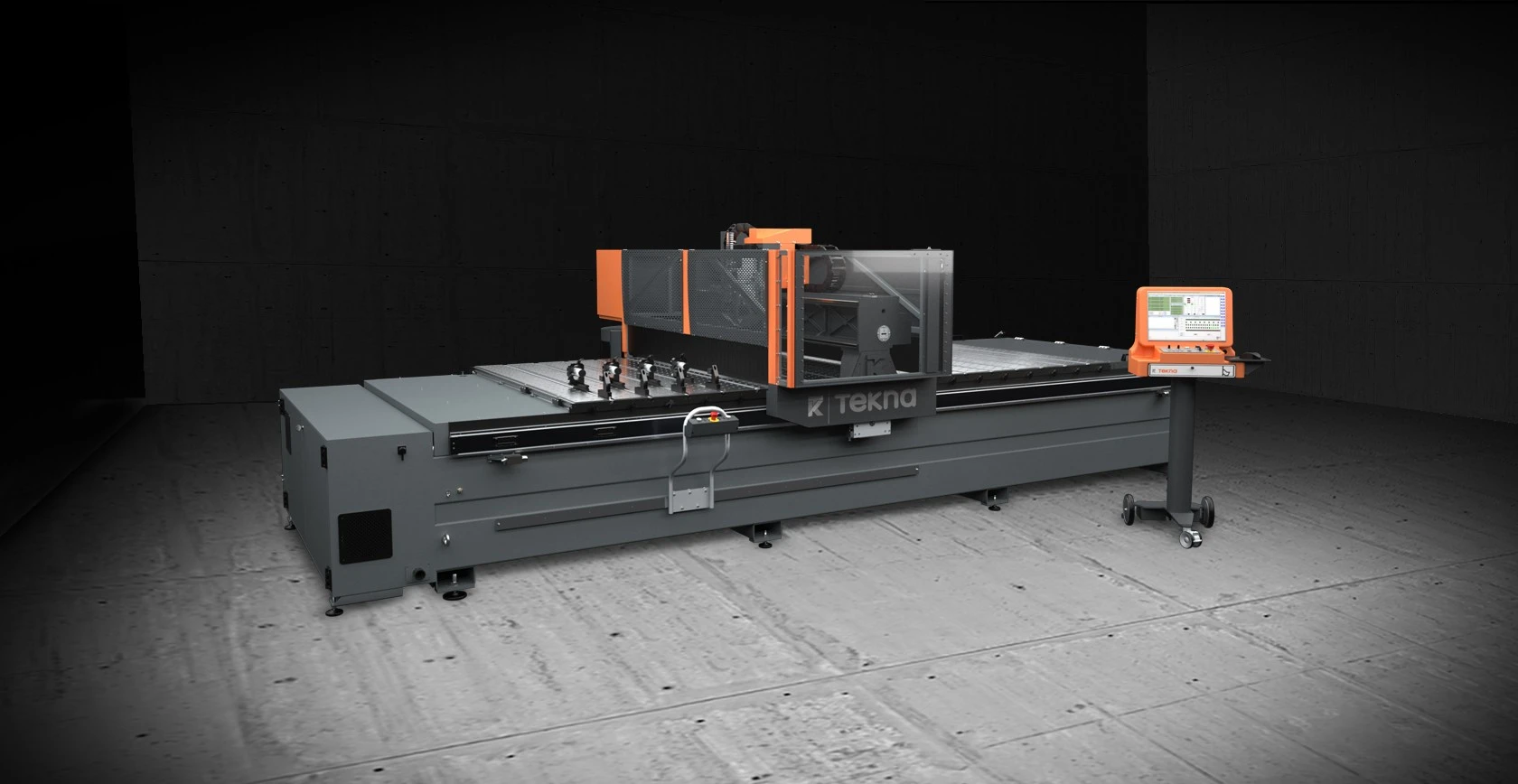

NEW TKE TKE 783

3-axis CNC machining center with superior machining capability in Y (2000 mm). It features a clamping system made up of vacuum tables that allow panels and plates to be held by vacuum. The machining center is equipped with a series of valves that turn on/off different areas of the machining table, thus concentrating the suction on one area and optimizing the clamping of components with limited dimensions.

It is designed for drilling and interpolated milling operations on composite panels, panels and plates in aluminum, stainless steel and on aluminum profiles.

Standard versions are available in two machining lengths: 4140 and 6440 mm. To create programs that control the machines, Tekna provides user-friendly software tools that can be used also by not expert programmers. The machine is equipped with Fanuc CNC Numerical Control, motors and encoders.
