NEW 2026 Lijian BUSBAR LJMN-200
Overview

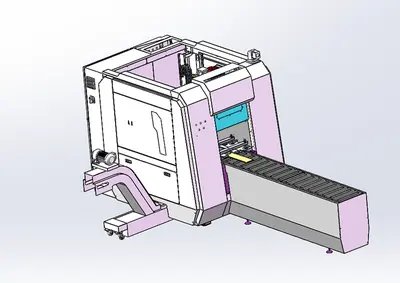

2026 LIJIAN CNC MACHINERY Model LJMN-200 Copper Busbar Chamfering Machine
CNC-controlled automatic milling can automatically complete arc machining simply by
inputting parameters, requiring no skilled workers.
6-station in-line tool magazine + BT40 international standard tool holder, automatic tool
changing according to thickness.
Water circulation system + automatic chip removal system + chip collection cart, dust is
suppressed by water and automatically collected.
Gantry-type welded housing structure + high-load, large-size guide rails + high-speed spindle, resulting in high rigidity and low vibration.
Specs
Main technical parameters:
No. Parameter Name Unit Parameter Remarks
1 Maximum spindle speed r/mi 6000
2 Main motor power KW 3.7
3 Model of spindle handle BT40
4 X-axis working stroke mm 525 Ensure that the copper busbar within the
range of R100 can be machined
5 Y-axis working stroke mm 500 Ensure that the copper busbar within the
width of 160 can be machined.
6 X-axis maximum operating speed m/min 15
7 Y-axis maximum operating speed m/min 15
8 X-axis positioning accuracy mm ±0.08
9 Y-axis positioning accuracy mm ±0.08
10 Thickness of workpiece mm 4-16 4-16
11 Width of workpiece mm 30-200
12 Length of workpiece mm 150-6000
Control mode
1 Number of CNC axes Piec 4 Beckhoff
2 Power of X-axis servo motor KW 2
3 Power of Y-axis servo motor KW 2
4 Hydraulic pump motor power KW 2.0
5 Working pressure pneumatic system MPa 0.6-0.8
6 Dimension (L×W×H) mm 2260×1580×2100
Length does not include feeding table.
7 Machine weight Kg 2380
8 Total power KW 12
Equipped With
Selection of main equipment accessories:
Serial No. Name Quantity Brand
1 Ball screw 4 sets HIWIN/TBI
2 Linear rolling guide 8 sets HIWIN/PEK
3 Servo driver 4 sets Rexroth
4 Servo motor 4 sets Rexroth
5 Pneumatic parts 1 set HSBC
6 Hydraulic components 1 set Shanghai Fengyi
7 Spindle servo 1 set Jing Yao
8 Programmable controller 1 set BECKHOFF, Germany
