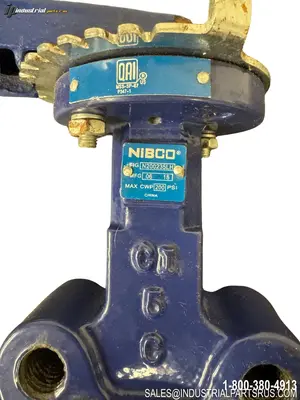

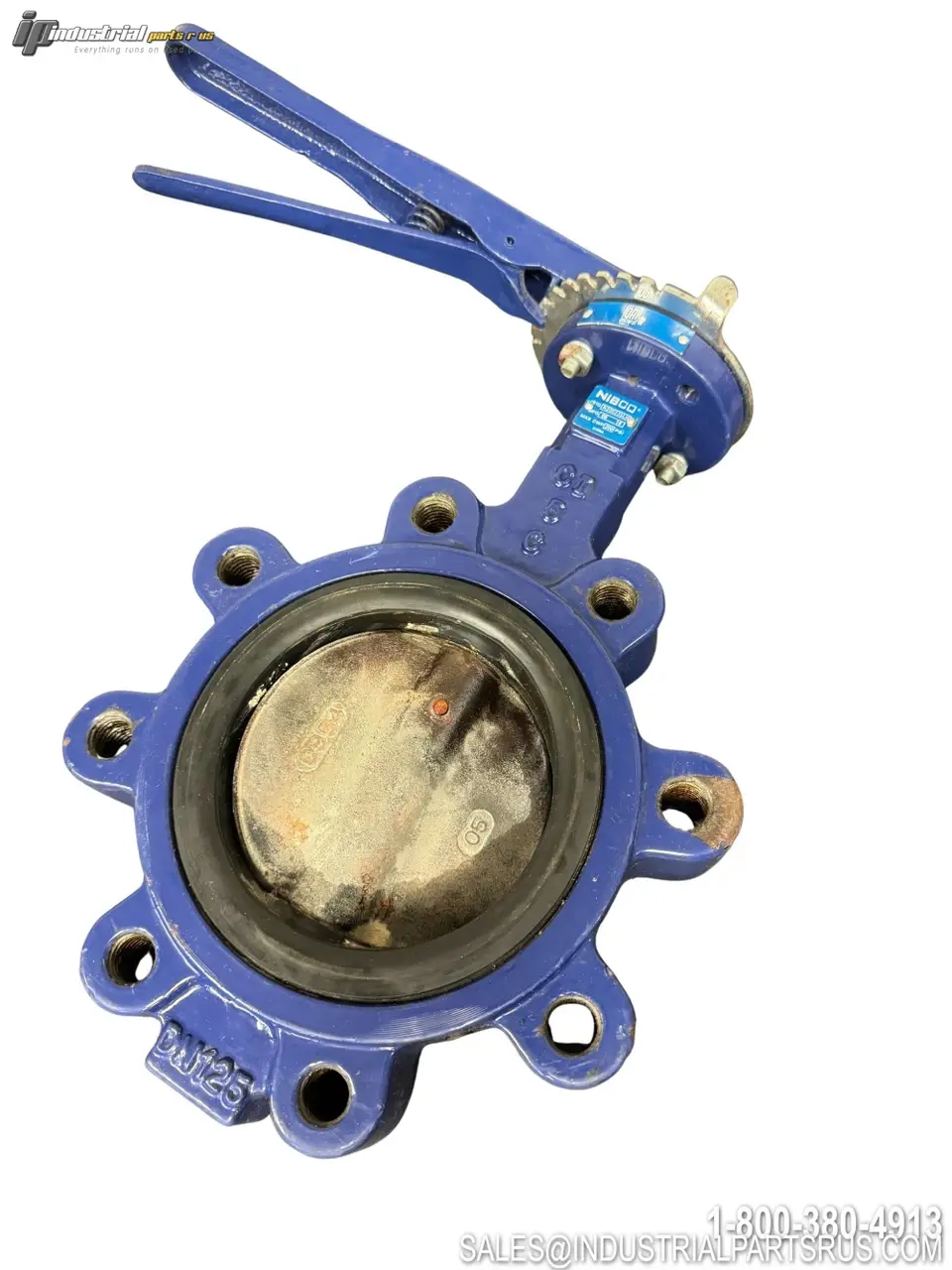

USED NIBCO N200235LH

The Nibco N200235LH is an international lug-style cast iron butterfly valve featuring a quarter-turn (90°) operation with a locking lever handle. It provides in-line bubble-tight shutoff at 200 PSI and supports bi-directional dead-end service without a downstream flange. Designed for commercial HVAC, hot/cold potable water, and general water/air service, the valve features an EPDM cartridge seat liner, aluminum bronze disc, 416 stainless steel stem, and an epoxy-coated cast iron body with an extended neck allowing insulation up to 2 inches.
Specification
Value
Brand
Nibco
Model / Part Number
N200235LH
Product Type
Butterfly Valve
Series
N200235 International
Valve Style / End Connection
Lug Type
Operator / Actuation
Locking Lever Handle (Manual)
Pressure Rating (CWP/WOG)
200 PSI (2"–6"), 150 PSI (8"), 100 PSI (10"–12")
Temperature Rating – Continuous
225°F
Temperature Rating – Intermittent
250°F
Body Material
Cast Iron (ASTM A126 Class B)
Disc / Trim Material
Aluminum Bronze (ASTM B148, UNS C95400)
Seat / Seal Material
EPDM Cartridge Liner
Stem Material
416 Stainless Steel (ASTM A582)
Finish / Coating
Epoxy Coated
Operation Type
Quarter-Turn (90°)
Extended Neck Insulation Clearance
Up to 2 inches
Dead-End Service
Bi-Directional (no downstream flange required)
Suitable Media
Water, Air
Applications
HVAC, Hot/Cold Potable Water, Commercial Systems
Lead Free
No
Industry Standards
MSS SP-67/25, API 609
Available Sizes
2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"
We warranty all items for 30 days from date of purchase.
