Okuma LB-4000EXII-1500 Big Bore – 2023
Overview

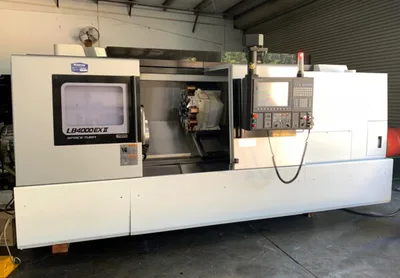

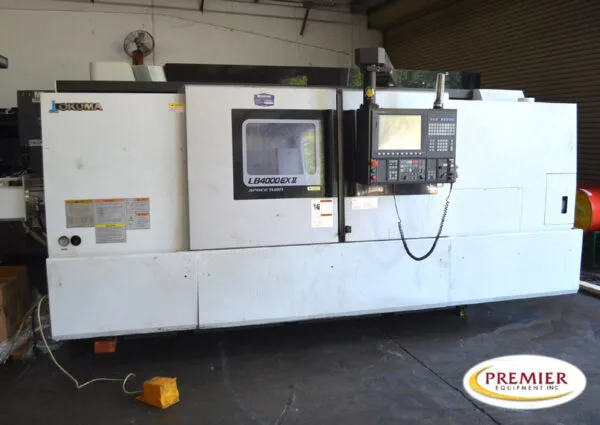

Okuma LB4000EXII-1500-BB CNC Turning Center
Specs
Swing Over Bed / Cover: 26.38”
Swing Over Saddle: 18.9”
Max Turning Diameter Diameter: 18.9”
Max. Machining Length: 59.06”
X Axis: 11.81”
Z Axis: 62.59”
Optional Big Bore
Spindle Nose: A2-11
Spindle Bore Diameter: 4.41”
Drawtube and ID of Optional Chuck: 4”
Spindle Speed: 30 – 3000 RPM
Main Spindle Motor: 50/40 HP
No. of Turret Positions: 12
Equipped With
OSP-P300LA
Big Bore Spindle – 3000 RPM, 50 HP, 4.01” Thru Hole
12-Station NC Turret
Steady Rest Interface, Single Type
SLUX-Z-3.2 Steady Rest w/Manual Positioning (1.97” – 7.88” Range)
Temperature Regulator
Manual Touchsetter
Ball Screw Driven Tailstock (MT#5, Live Quill)
Portable Pluse Handle
Spare M-Codes, 8 Sets – Lathe
Machine AOT-IGF Conversational Programming Software
Rapid Traverse Override Switch
Thread Phase Matching
Feed Hold During Threading
Variable Spindle Speed Threading, Left
Negative Tool Radius Compensation
Chip Conveyor, Right, Hinge, 1500 Bed, LNS
15″ Chuck
Sold New in 2023
