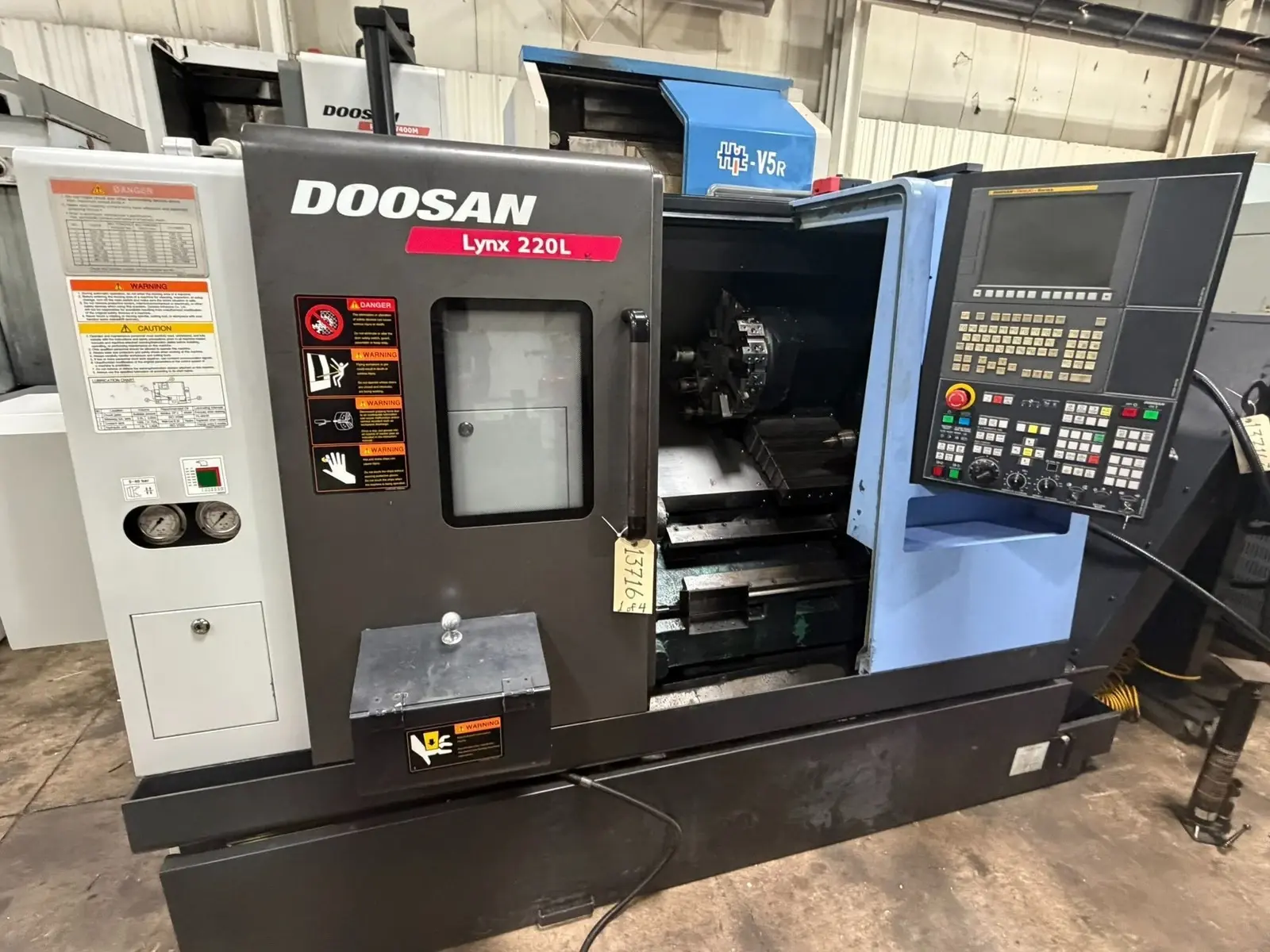

USED 2015 DOOSAN LYNX 220LC
Overview
Used CNC Lathe, equipped with Fanuc i CNC Control, tool presetter, and 8" Samchully chuck. Offers 12 tool stations, rapid traverse rates of 1181 IPM (X) and 1417 IPM (Z).
Specs
Main Spindle Chuck 8"
Maximum Swing 20.08
Maximum Cutting Diameter 12.6"
Maximum Machining Length 20.7"
Main Spindle HP 20
Main Spindle RPM 4000 RPM
Main Spindle Nose A2-6"
Main Spindle Bore 2.99"
Tool Storage Type Turret
Number of Tool Stations 12
X Axis Travel 6.89"
Z Axis Travel 21.65"
Rapid Traverse Rate X 1181 IPM
Rapid Traverse Rate Z 1417 IPM
Machine dimensions lxwxh 90"x72"x66"
Machine weight 7,780 lbs
Equipped With

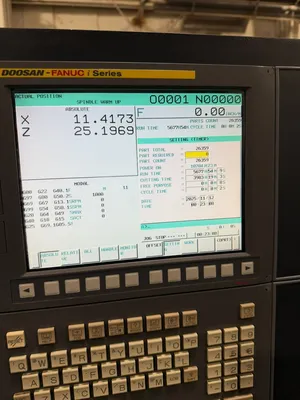

Fanuc i CNC Control
Tool Presetter
Parts Catcher
Turbo Chip Conveyor
Barfeed Interface
Tailstock
8" Samchully 3 Jaw Hydraulic Chuck
Coolant System with Tank & Pump
Card Drive Interface
RS 232 Port Interface
Misc. Tool Holders
