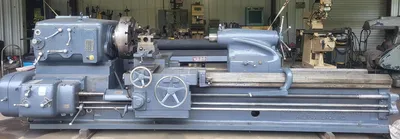

Swift 16 V5 Gap Bed lathe 30/60 x 100 inch
Overview
Swift Gap Bed Heavy Duty Lathe 36/60 x 100 inch
Weight 19,340
Shipping Dimensions 17 ft long, 90" wide and 59" high (with no 4x4's under base)
ACQ 0004
FOB Dry Prong, Louisiana, venue for all matters in this saleLocated at Pinpoint Machine's warehouse, check with Bill or Richard RogersSelling used, as-is and can be inspected under power with appointment (video available too)For freight quote, give name, company name and your cityWill consider exchanges of good quality itemsFree loading onto flatbed truck (no sides, fenders, or rails) otherwise let us know the situation if rigging is required
Specs
Model 16V5
Swing 36" over Bed OR 60" in Gap OR 25" over Cross Slide
100" Between Centers
440V 3 phase
20Horsepower Motor

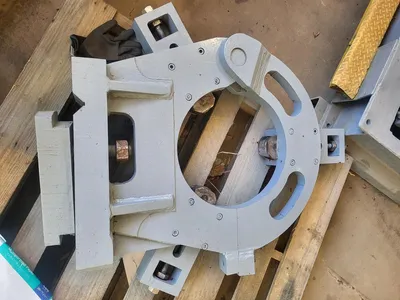

Steady Rest
Serial Number T923

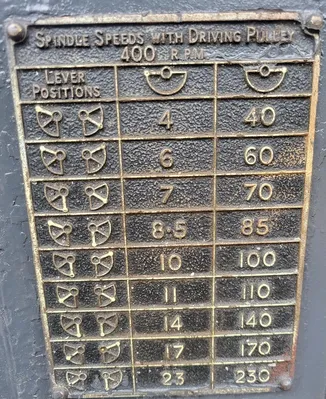

4 to 230 RPM
Made in England
230 RPM
Has 24" 4 Jaw Chuck (Chuck inside hole is 5")
Top Slide Feeds Under Power (Can do really steep tapers if needed)
Turret Tool Post
6 Morse Taper in Tailstock

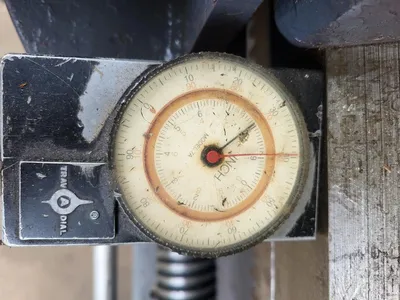

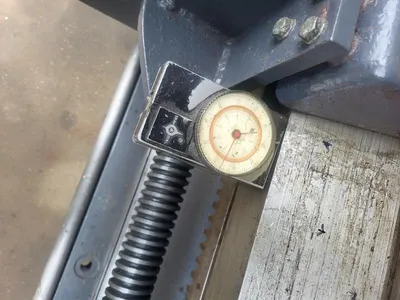

Fitted with a Trav-A-Dial on the Carriage
2 to 50 TPI (and can Metric Thread)
4 3/16" Spindle Bore
Footprint 17 ft long, 90" wide and 59" high
