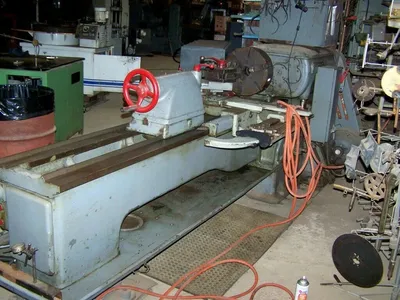

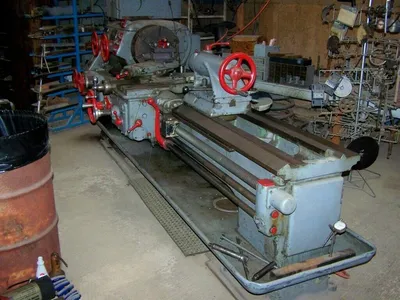

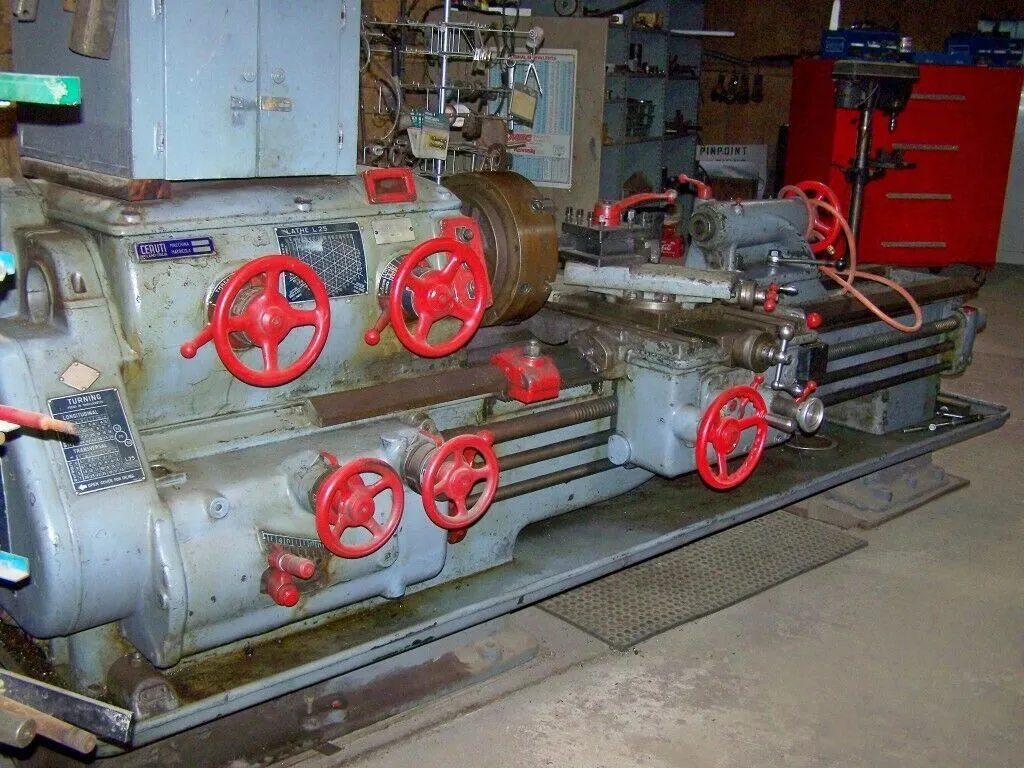

Ceruti Engine Lathe Module Whitworth Gap Bed 21 x 60 Worm Gear Diametral
Overview
Estimated weight 8000 lbs
Dimensions for shipping (footprint) 5 ft wide, 51" high, 12 ft long
Financing available
FOB Dry Prong, LA venue for all matters in this sale
72 hours' notice needed to be ready to meet truck and ship item. Loading onto flatbed truck, no sides or rails, or fenders in the way. Selling used, as-is, and can be seen under power during normal hours.
Will consider trades
Specs
21 x 60
With gap out swing 28 to 30 inches range
12.5 inches swing over cross slide
Made in Italy
Serial number 10821
220/440 volt 3 phase power
7.5 HP motor
11.2 to 560 rpm
2 3/4" spindle hole
Thread dial
Lubrication pump window to see flow of oil
Carriage stop

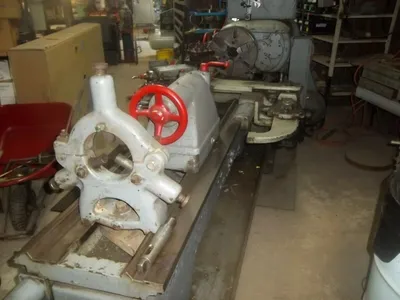

5 Morse taper in tailstock
Turret tool post

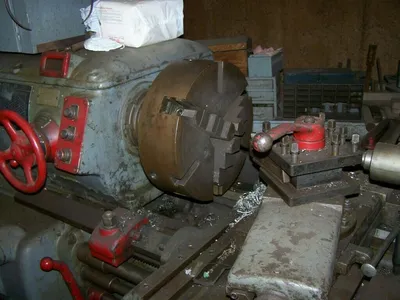

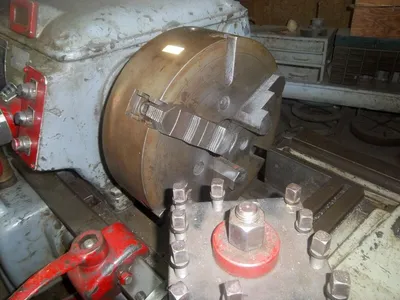

15 inch combination chuck, (scrolls like a 3-jaw, independently adjustable jaws like 4 jaw)

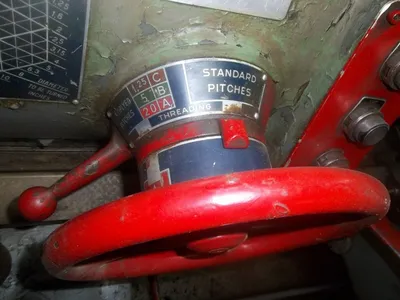

Inch or Metric threading
Ways look good

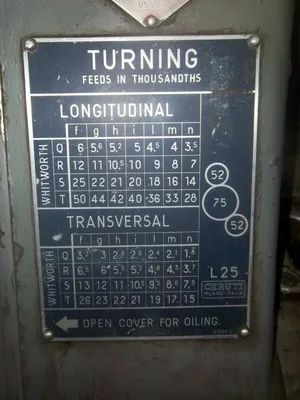

Turning Diametral pitch, module, multiplied pitches
US Government surplus
Steady rest with maximum approximately 6" opening
12 MM lead screw

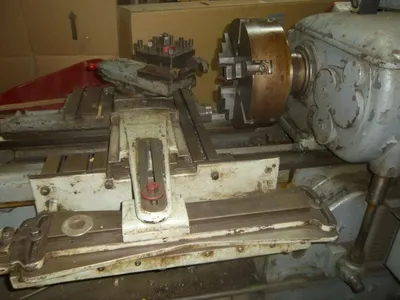

Taper attachment
5/8" T-slots on carriage
Can thread very coarse, to 1tpi or even .5 tpi set up right
All the tooling and measurement gear on it doesn't go with it
