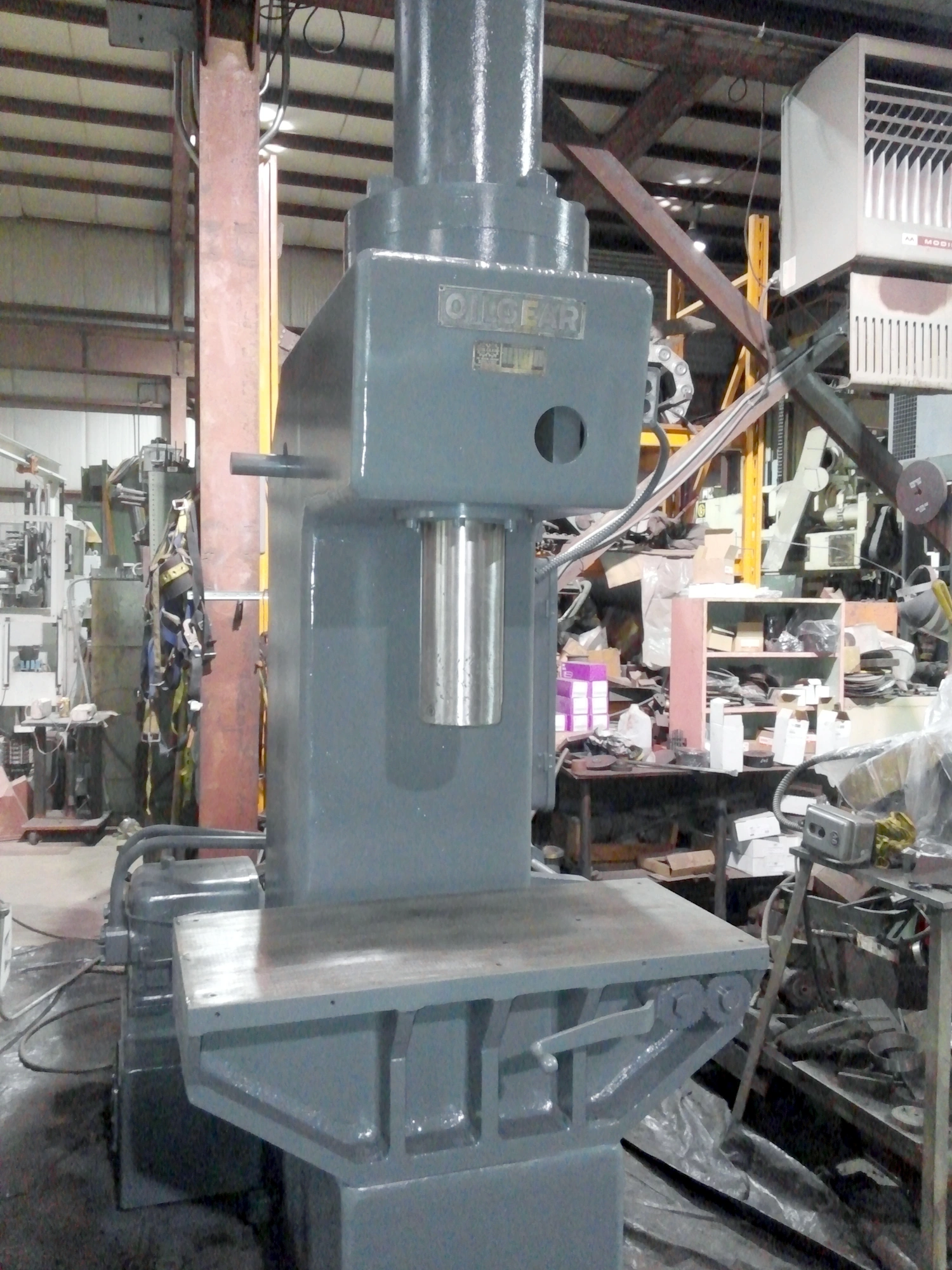

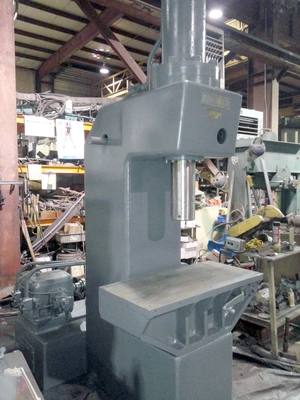

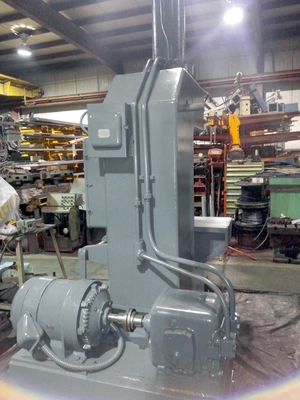

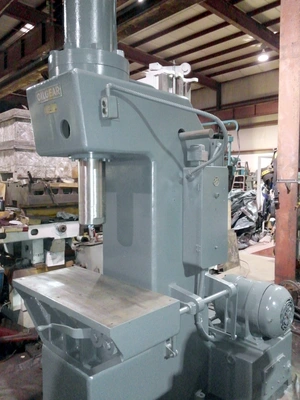

USED OILGEAR 50 TON

Capacity: 50.00 ton 500.00 kN
Ram / Slide Stroke: 18.00 in 460.00 mm
Piston Diameter: 6.50 in 165.10 mm
Bed Width: 36.00 in 915.00 mm
Bed Depth: 36.00 in 915.00 mm
Maximum Open Height: 19.00 in 482.60 mm
Depth to Center Piston: 10.25 in 260.35 mm
Depth of Throat: 7.00 in 177.80 mm
Bolster Thickness: 14.00 in 355.60 mm
Bed Bolster Width: 40.00 in 1016.00 mm
Bed Bolster Depth: 18.50 in 469.90 mm
Distance from Floor to Bolster: 36.00 in 914.40 mm
Motor Power: 10.00 in 7.50 mm
Power: 3 Phase / 50-60 Hz / 200 – 500 Volts existing
Machine Length: 68.00 in 1727.20 mm
Machine Width: 50.00 in 1270.00 mm
Machine Height: 117.00 in 2971.80 mm
Machine Weight: 8000.00 lbs 3636.00 kg
