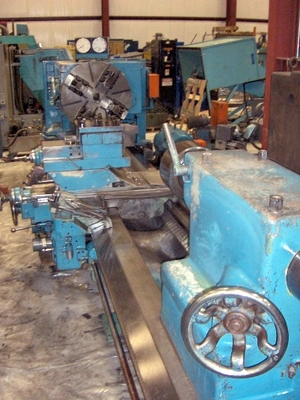

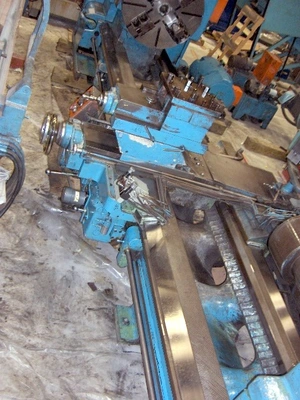

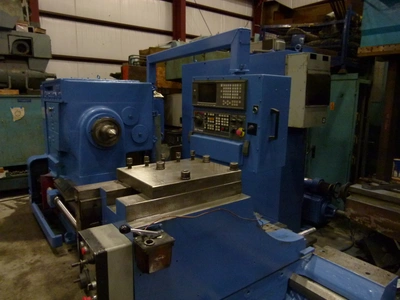

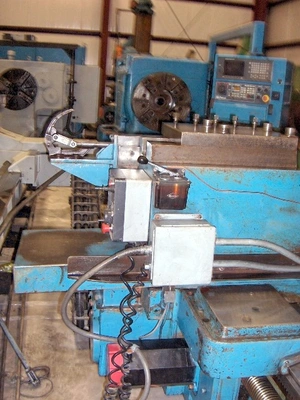

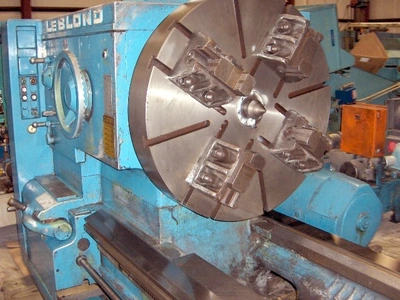

USED 2000 LEBLOND 50/30 RAISED 4625 NK TAPE TURN I – FLAT BED

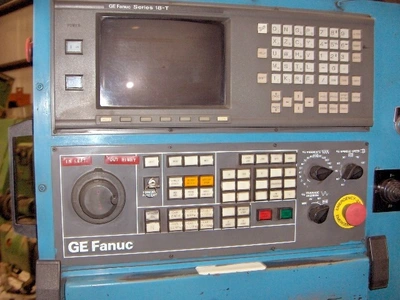

Control: Fanuc 18it CNC
Swing Over Bed: 50.00 in, 1270.00 mm
Swing Over Cross Slide: 33.00 in, 838.20 mm
Distance Between Centers: 180.00 in, 4572.00 mm
X – Cross Slide Travel: 28.00 in, 711.20 mm
Chuck Diameter: 28 in (711 mm), manual, independant
Chuck Type: 4-Jaw integral with bolt-on hard jaws
Spindle Bore: 3.06 in, 77.777 mm
Spindle Power: 75.00 HP 56.25 Kw
Spindle Speed: 3 – 670 RPM infinitely variable
Spindle Nose: L3
Tailstock: Non-programmable with #6 Morse Taper
Tailstock Quill Diameter: 8.00 in, 203.20 mm / 18.00 in, 457.20 mm Travel
Weight Capacity Between Centers: At 500 RPM 40000 lbs (18180 Kg)At 100 RPM 32560 lbs (14800 Kg)At 500 RPM 20020 lbs (9100 Kg)
Power: Existing

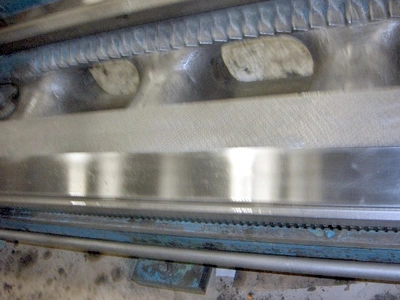

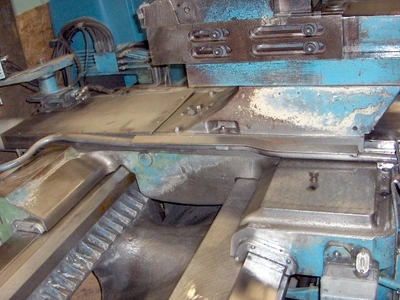

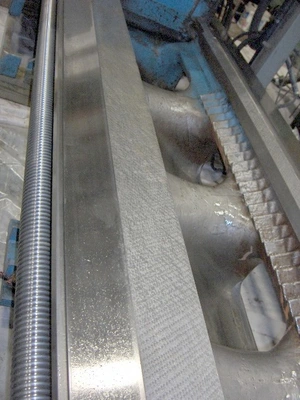

Additional: Press-in center-in chuck, feedrate range .1 to 150 inches per minute, tailstock quill travel 18 in (457.2 mm), carriage length on ways 46.75 in (1187mm), bed width 34 in (863.6mm), quick change slide tool holder, ways re-ground.
