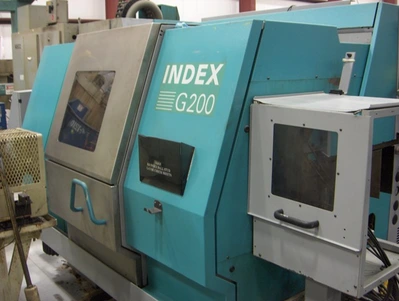

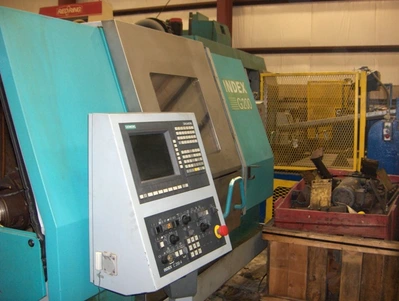

USED 2002 INDEX G200 BALL TURNING LATHE
Overview
Specs

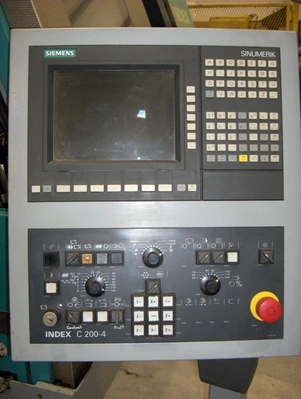

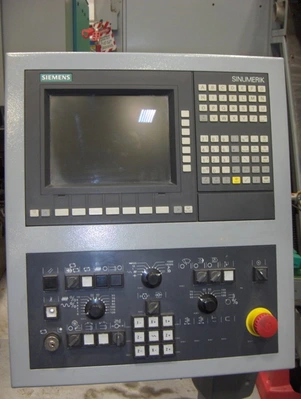

Control: Index C200-4 CNC (Identical to Siemens 840 C)
Swing Over Bed: 16.54 in 420.12 mm
X – Cross Slide Travel: 4.13 in 104.9 mm
Z – Carriage Travel: 15.75 in 400.05 mm

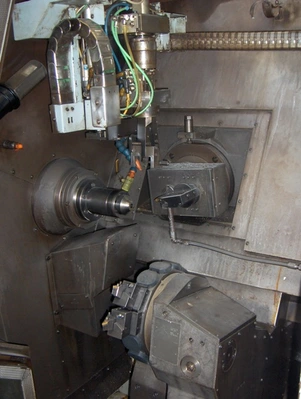

Turret 1: 14 Tool Station - Mounted On #2 Right Hand Slide

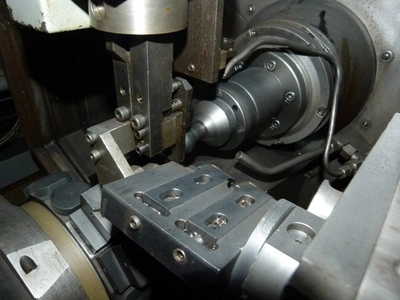

Chuck Type: Stace Allen Collet Chuck With Locator
Spindle Power: 26 / 38 HP, 20 / 29 kW
Spindle Speed: 5000 RPM Maximum, Infinitely Variable
Spindle Nose: Index Model D60
Ways: Linear Roller Pack
Chip Conveyor: Yes - Hinged Belt Type
Coolant: Yes
Way Covers: Yes
Power: Existing

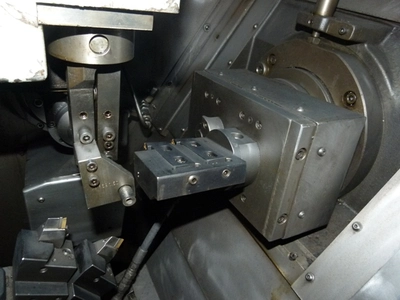

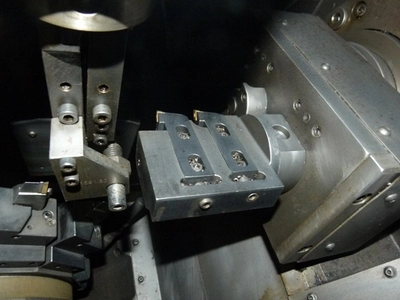

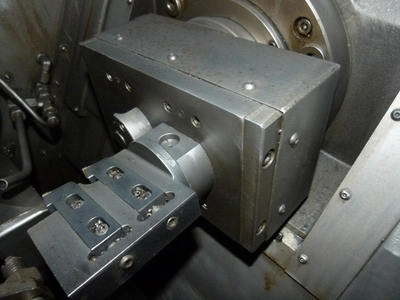

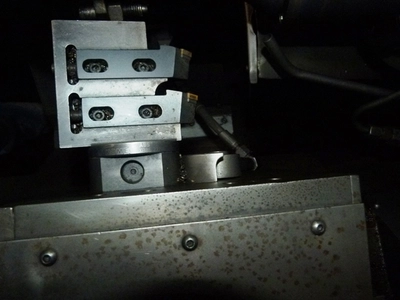

Additional: Bottom ball turner - custom for ball studs, gantry loading system, Torit Dryflo mist collector model DMC-C1 coolant mist extraction and filter system, maximum turning length 15.75 in (400 mm), maximmum nominal turning diameter 7.87 in (200 mm)
Machine Length: 192.91 in 4899.91 mm
Machine Width: 75.2 in 1910.08 mm
Machine Height: 80.71 in 2050.03 mm
