Used

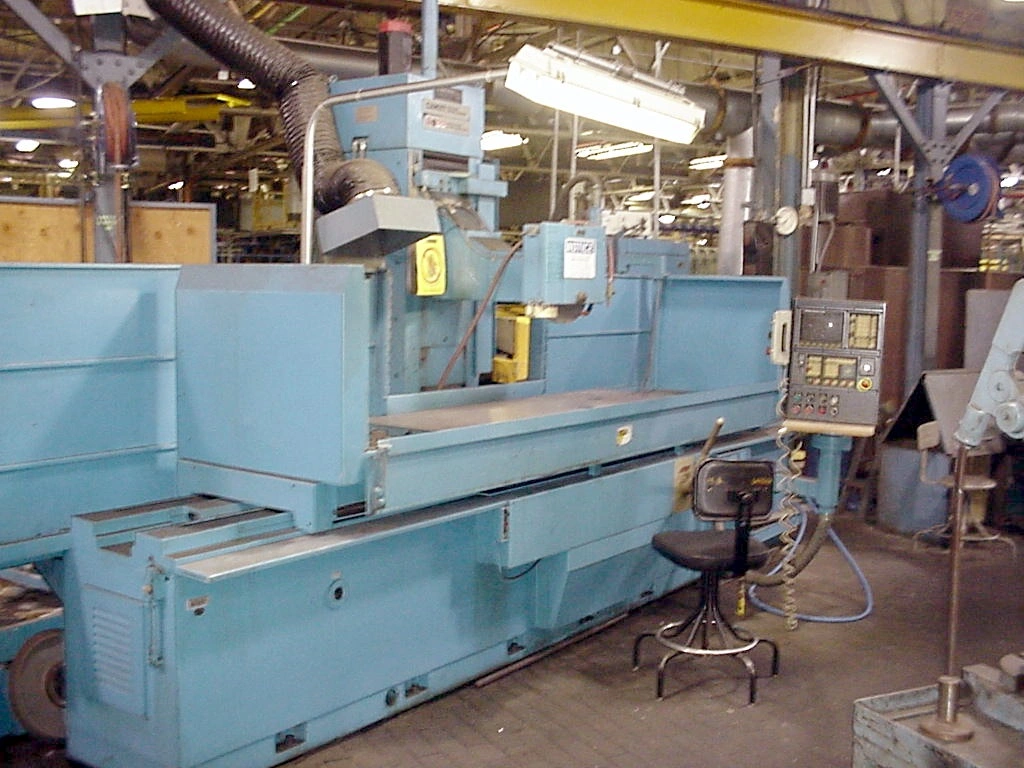

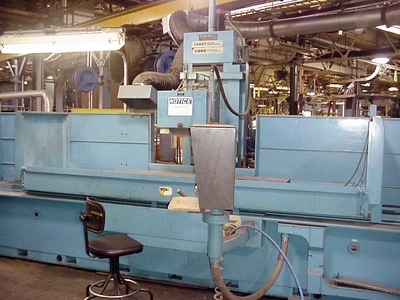

USED 1985 CAMUT 24 X 79

Pennsylvania, United States

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

281Listings|8Followers
Overview
Specs

Control: Fanuc O-GS, New 1996
X - Maximum Grinding Length: 79.00 in 2006.6 mm
Y - Maximum Grinding Length: 30.00 in 762 mm
Z – Maximum Work Height: 22.50 in 571.5 mm
Maximum Wheel OD: 18.00 in 457.2 mm
Wheel ID: 5.00 in 127 mm
Wheel Width: 4.00 in 101.6 mm
Wheel Spindle Speed 1200 RPM
Wheel Spindle Power: 10.00 HP 7.46 kW
Table Width: 24.00 in 609.6 mm
Table Length: 79.00 in 2006.6 mm
Maximum Longitudinal Travel: 82.00 in 2082.8 mm
Maximum Cross Travel: 24.00 in 609.6 mm
Coolant: Yes
Filtration System: Yes, Mod Gamma 620
Power: 3 ph / 50 – 60 Hz / 200 – 500 V Existing
Additional: Infinitely variable step feed cross travel, power cross feed, incremental downfeed
