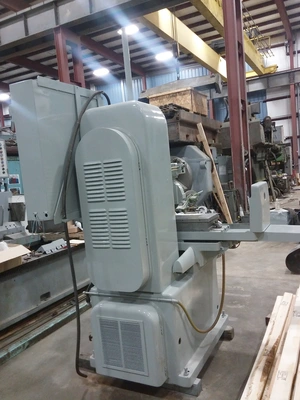

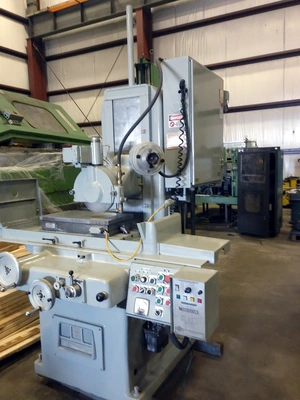

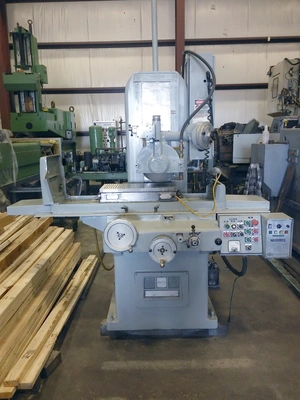

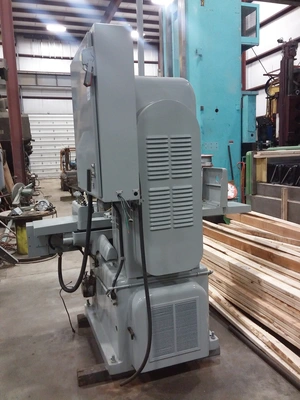

USED 1994 GALLMEYER & LIVINGSTON 376

Z – Maximum Work Height: 20.00 in 508.00 mm
Maximum Wheel OD: 12.00 in 304.80 mm
Wheel ID: 1.00 in 25.40 mm
Wheel Width: 3.00 in 76.20 mm
Wheel Dresser Yes
Wheel Spindle Speed: 2000-2400 RPM STD Spindle Speed
Wheel Spindle Power: 5.00 HP 3.75 kW
Table Width: 12.00 in 304.80 mm
Table Length: 24.00 in 609.60 mm
Vertical Travel: 13.00 in 330.20 mm
Maximum Longitudinal Travel: 29.50 in 749.30 mm
Maximum Cross Travel: 13.25 in 336.55 mm

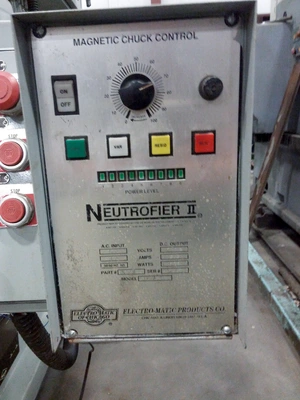

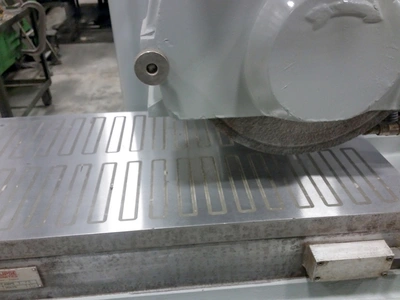

Chuck Type: Electromagnetic
Coolant: Yes
Power: 3PH / 60Hz / 440V Existing

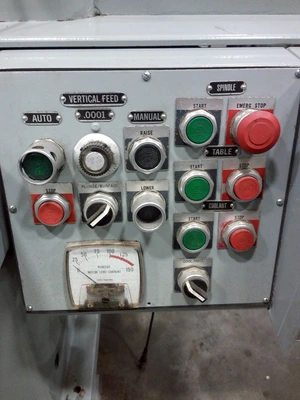

Additional: Incremental downfeed, lubrication system, fine feed option on crossfeed, worklight, extra vertical height, distance from center of spindle to bottom of spindle housing: 2.5 in ( 63.5 mm), longitudinal table speeds 3" -1500" in/min (76 - 38100 mm/min)
Machine Length: 110.00 in 2794.00 mm
Machine Width: 80.00 in 2032.00 mm
Machine Height: 72.00 in 1829.00 mm
