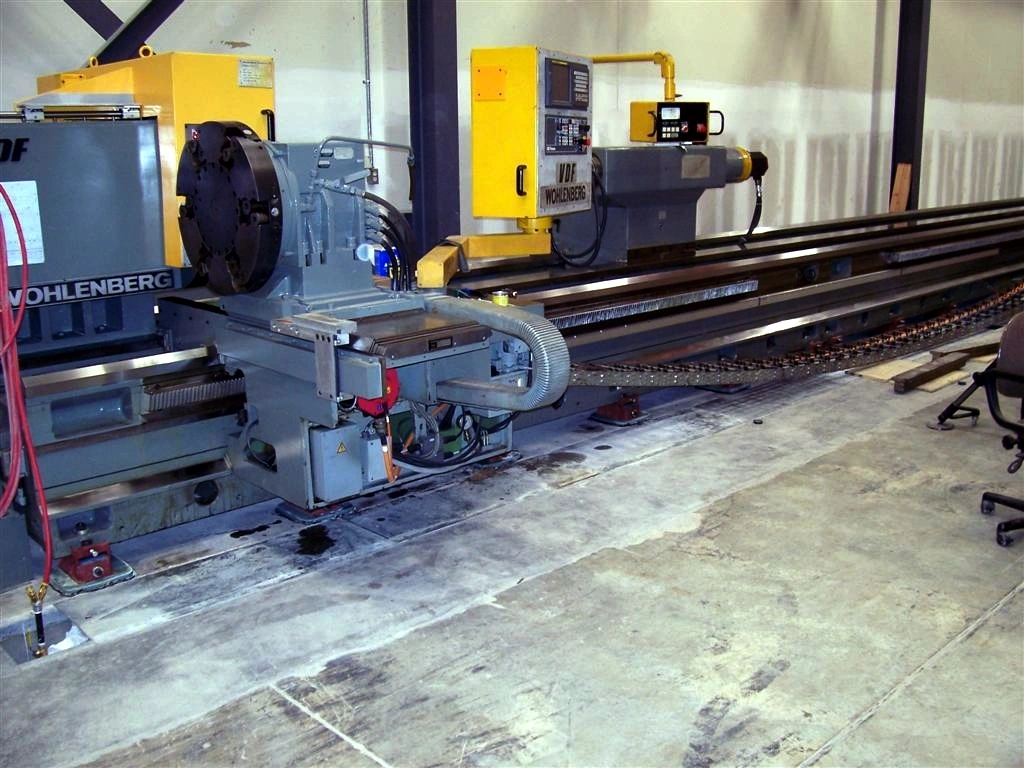

USED 1987 VDF WOHLENBERG HANNOVER U1070S

Control: Allen Bradley 9 Series 2 Axis, Upgraded in 2000 or Optional New CNC
Swing Over Bed: 45.00+* in 1143 mm
Swing Over Cross-slide: 45.00+* in 1143 mm
Distance Between Centers: 312.00 in 7924.8 mm
X – Cross-slide Travel: 21.00 in 533.4 mm
Z – Carriage Travel: 360.00 in 9144 mm
Turret 1: 6 Station Automatic Programmable Sauter
Optional X2 – Cross-slide Travel: 21.00 in 533.4 mm
Optional Z2 – Carriage Travel: 360.00 in 9144 mm
Optional Swing Over Cross-slide 2: 45.00+ in 1143 mm
Turret 2: Optional
Chuck Diameter: 32.5
Chuck Type: 4-Jaw Independent with Solid 1-Piece Jaw
Spindle Bore: 5.00 in 127 mm
Spindle Power: 82.00 HP 61.5 kW
Spindle Speed: 3.55 – 710 RPM
Spindle Nose: DIN 55027
Tailstock Quill Diameter: 7.88 in 200.03 mm
Tailstock Quill Travel: 7.88 in 200.03 mm
Weight Capacity Between Centers: 20000 lbs 44000 Kg
Rapid Traverse Rate: 236.00 in/min 5994.4 mm/min
Ways: Hardened and Ground
Chip Conveyor: Full Length
Coolant: Yes
Way Covers: Cross-slide Only
Power: 3 phase / 60 Hz / 440 V Existing
Additional: 3 Bedway Design, 1 or 2 Carriages available, 1 or 2 CNC programmable steady rests available, CNC programmable automatic compensating steady rests to 30” dual roller pass-through*Actual 50”+ swing
