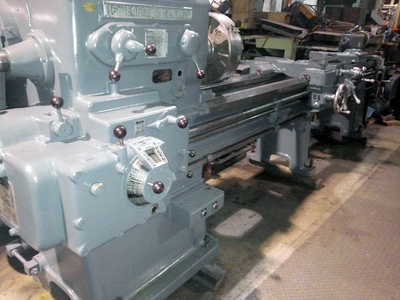

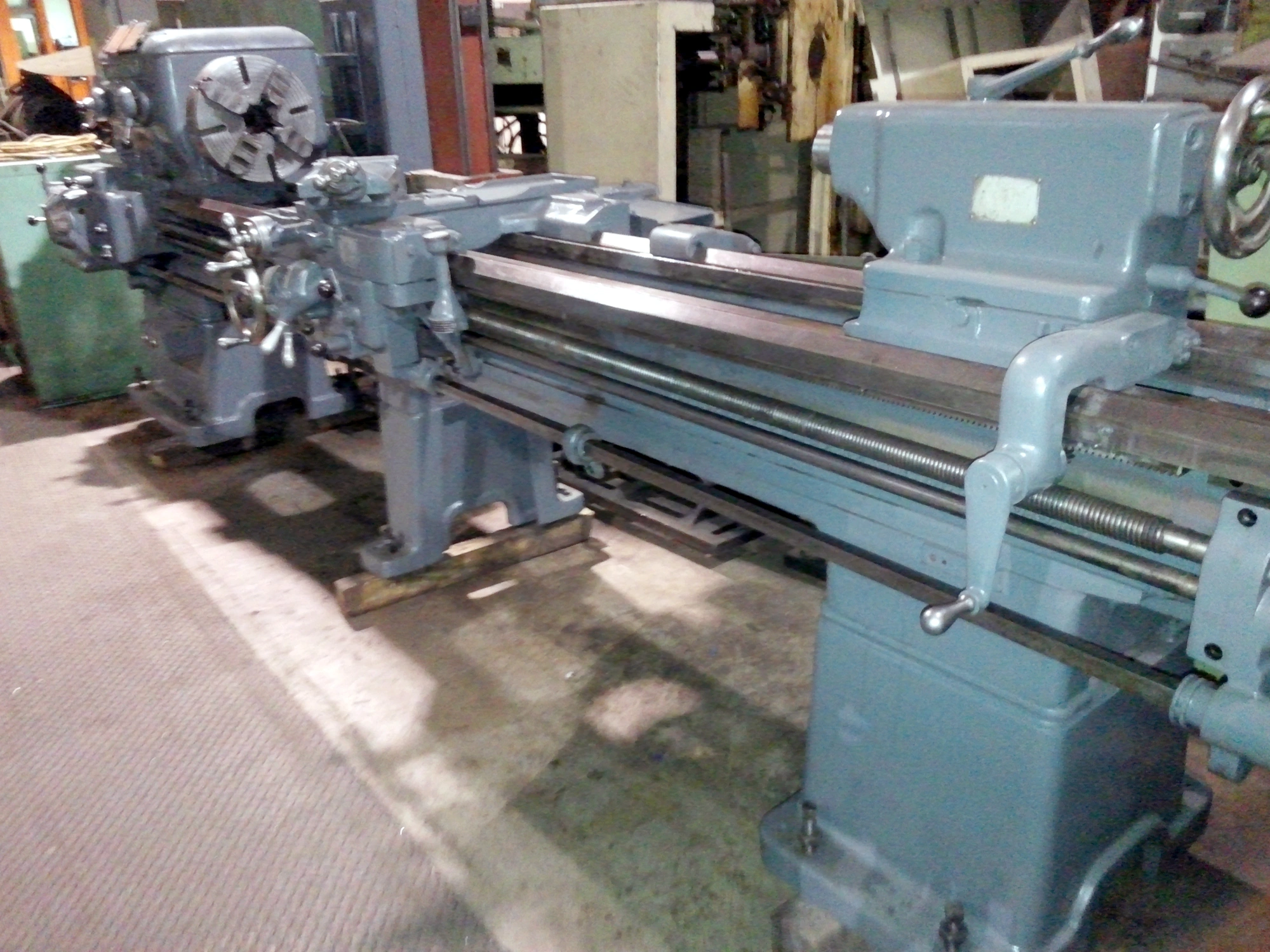

USED LODGE & SHIPLEY XC16
Overview
Specs
Swing Over Bed: 20.00 in 508.00 mm
Swing Over Cross Slide: 11.50 in 292.10 mm
Spindle Bore: 1.75 in 44.45 mm
Distance Between Centers: 102.00 in 2590.80 mm
Chuck Type: 10” 3-jaw universal and 15” 4-jaw independent
Spindle Power: 15.00 HP 11.25 kW
Spindle Speed: 21 - 1740 RPM, 24 speeds
Spindle Taper: L1

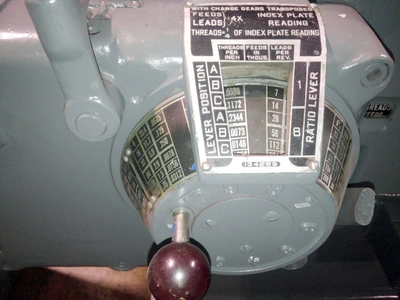

Feed Range: 0.75” to 0.0156”

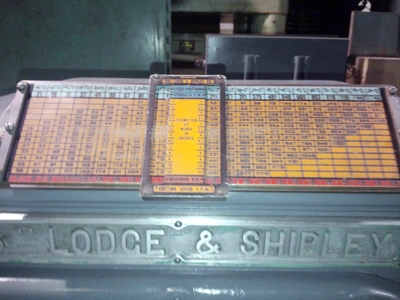

Thread Range: 4 – 256 threads/inch

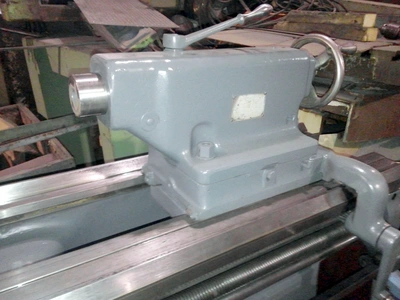

Tailstock Quill Diameter: 3.00 in/min 76.20 mm
Tailstock Quill Travel: 6.00 in/min 152.40 mm
Coolant: None
Power: 3 ph / 50-60 Hz / 200 – 500 V existing
Additional: Steady rest, taper attachment, tool post
Machine Length: 178.00 in 4521.20 mm
Machine Height: 48.00 in 1219.20 mm
Machine Width: 56.00 in 1422.40 mm
