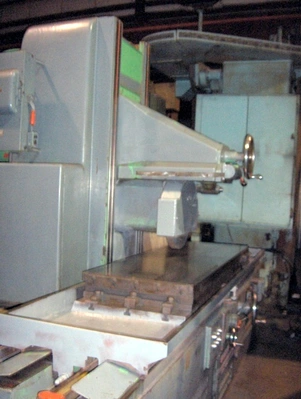

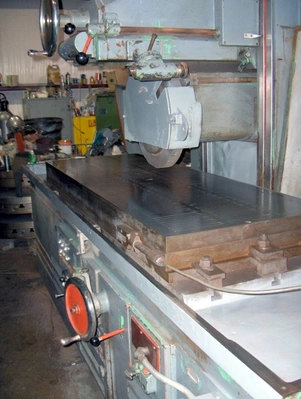

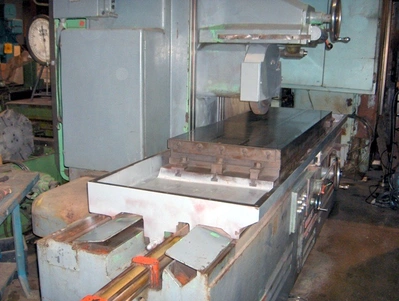

USED 1950 GALLMEYER & LIVINGSTON F4R

X - Maximum Grinding Length: 72.00 in 1829.00 mm
Y - Maximum Grinding Length: 30.00 in 762.00 mm
Z – Maximum Work Height: 25.00 in 635.00 mm
Maximum Wheel OD: 20.00 in 508.00 mm
Wheel ID: 12.00 in 305.00 mm
Wheel Width: 4.00 in 102.00 mm
Wheel Dresser: Built-In
Wheel Spindle Speed: 1200 RPM
Wheel Spindle Power: 30.00 HP 22.50 kW
Table Width: 24.00 in 610.00 mm
Table Length: 72.00 in 1829.00 mm
Maximum Longitudinal Travel: 82.00 in 2083.00 mm
Maximum Cross Travel: 24.00 in 610.00 mm
Coolant: Yes
Power: Existing
Additional: Spindle head counterbore (2 sides): 14.25 in(362 mm) x 1 in (25 mm), spindle head housing radius 5 in(127 mm), spindle head vertical speed per minute 5.5 in(140 mm), step feed cross travel 3 in (75 mm) max, power table cross feed, manual downfeed
Machine Length: 128.00 in 3251.20 mm
Machine Width: 216.00 in 5486.40 mm
Machine Height: 120.00 in 3048.00 mm
