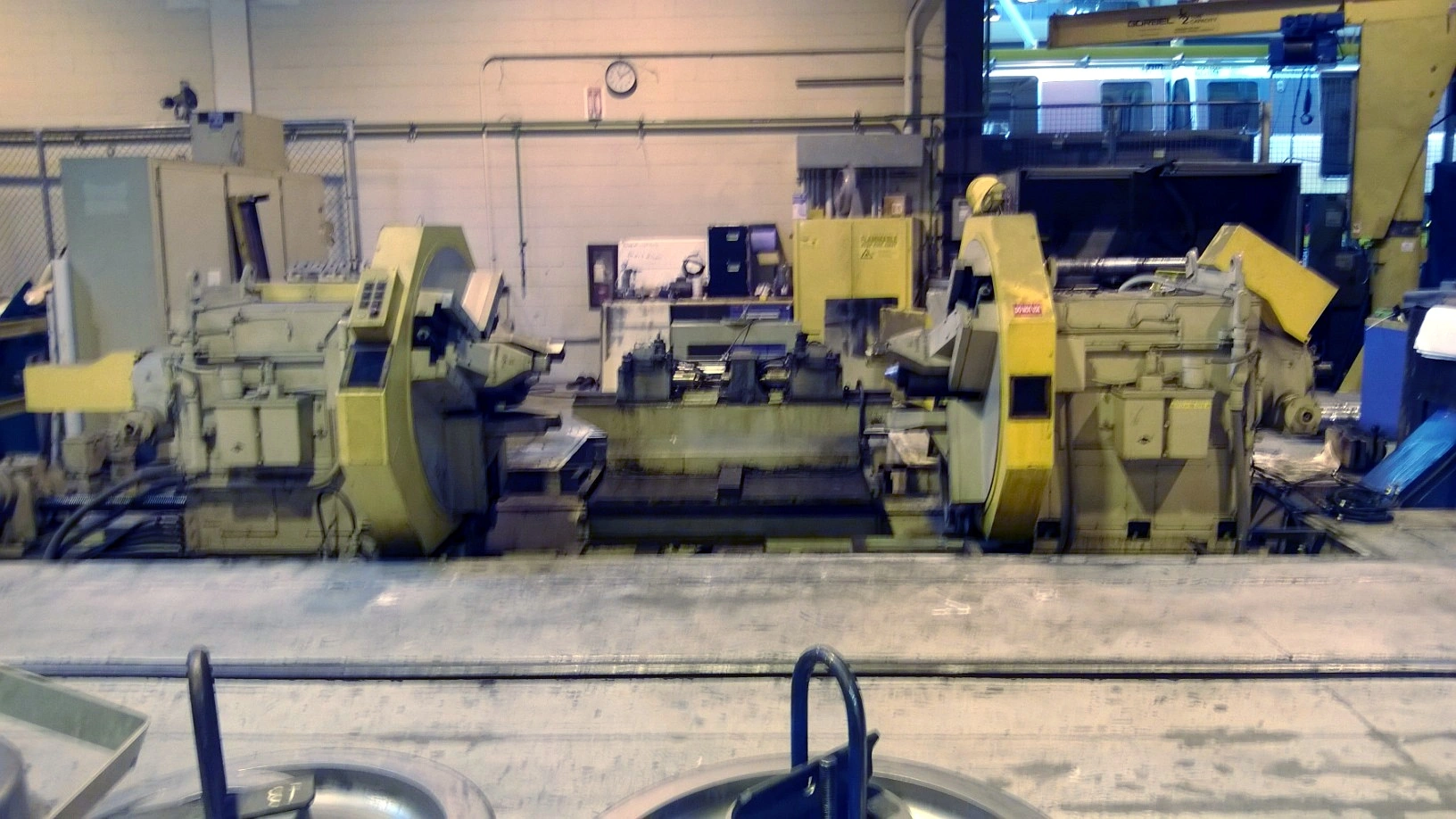

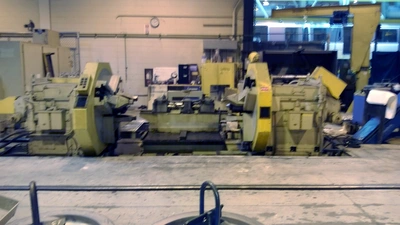

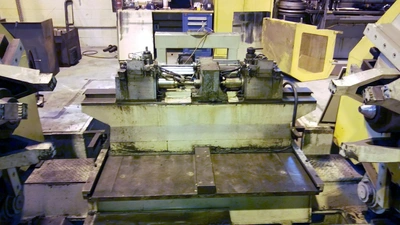

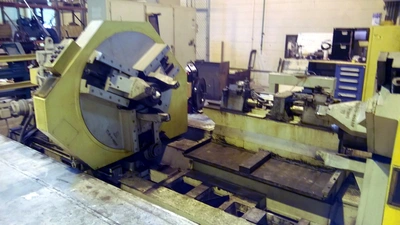

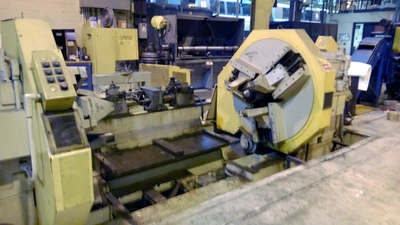

USED ATLAS – DAKE MDII 995010

Rail Gauge: 56.50 in 1435.00 mm
Maximum Wheel Diameter Admitted: 54.00 in 1372.00 mm
Minimum Wheel Diameter Admitted: 24.00 in 610.00 mm
Maximum Axle Length Admitted: 108.00 in 2743.00 mm
Head Traverse Brake Motor Power: 7.50 hp 5.59 kW
Head Lubrication Motor Power (One per head): 0.125 hp 0.09 kW
Main Drive Motor Power(One each head – inverted controlled): 50.00 hp 37.28 kW
Servo Motor Power (X and Z axis): 10.06 hp 7.50 kW
Slide Way and Screw Lubrication: 0.09 hp 0.07 kW
Speed Range: 16 – 32 RPM (Infinitely variable)
Feed Range: 0 – 0.125 / Rev (Infinitely variable)
Additional: Automatic loading
