USED 1988 DROOP & REIN FPV 1250 S 30/15 NW

Control: New Fanuc 32 or Siemens 840D CNC
X – Table Travel: 187.00 in, 4750.00 mm
Y – Saddle Travel: 126.00 in, 3200.00 mm
Z – Spindle Travel: 45.00 in, 1143.00 mm
Distance Between Columns: 89.00 in, 2260.00 mm
Distance from Spindle to Table: 59.00 in, 1500.00 mm
Location: Rail Mounted
Spindle Power: 67.00 HP, 50.00 kW
Spindle Speed: 0 – 1600 RPM Infinitely variable
Table Width: 49.00 in, 1245.00 mm
Table Length: 197.00 in, 5003.00 mm
Tool Changer / Number of Tools: Optional - 100 Tools
Way Covers: Metal Telescopic

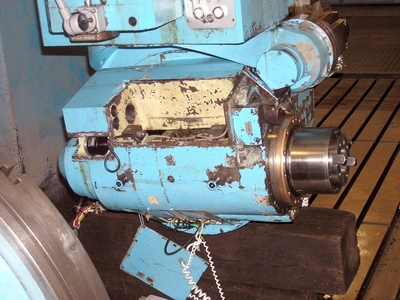

Additional: Auxiliary high-speed head including inclinable spindle A - axis, spindle rotation C - axis, spindle travel within head W - axis 8 in (203 mm), spare ram (Z - axis slide), all new servo motors and drives
