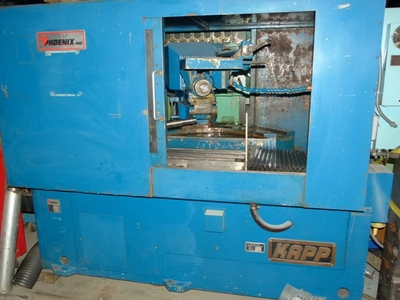

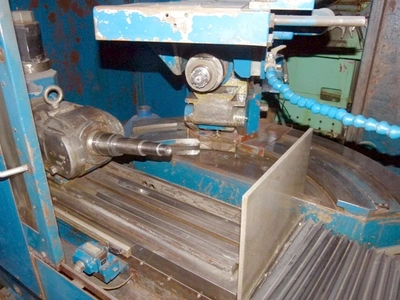

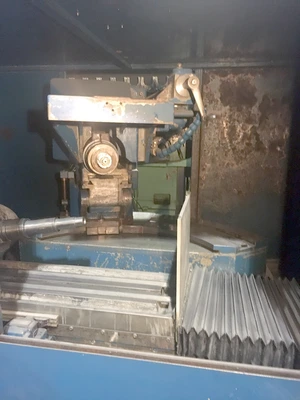

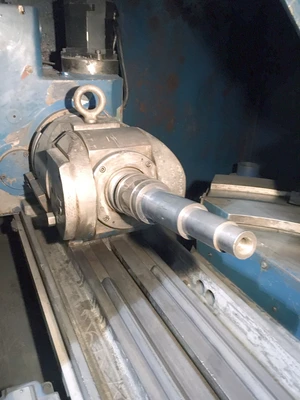

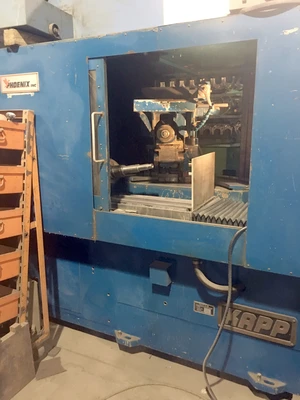

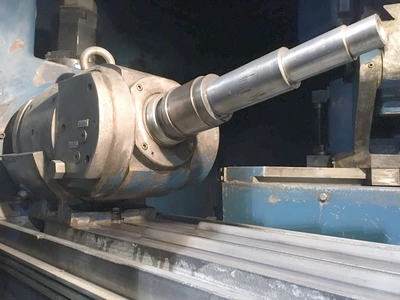

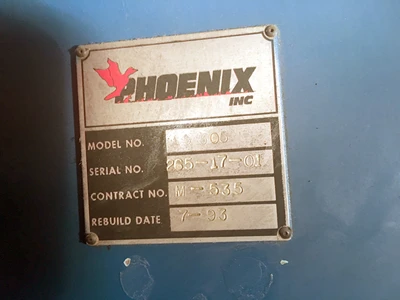

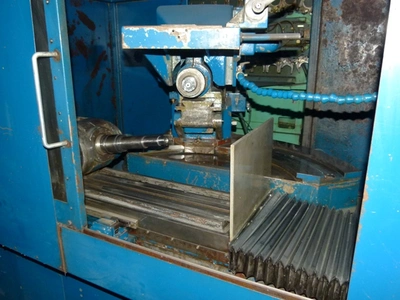

USED 1993 KAPP / PHOENIX AS 305 SPECIAL
Overview
Specs

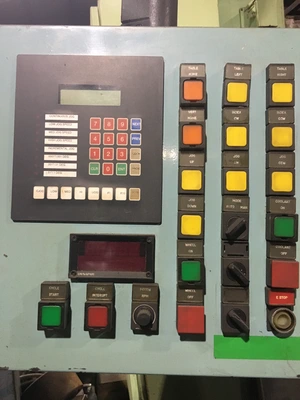

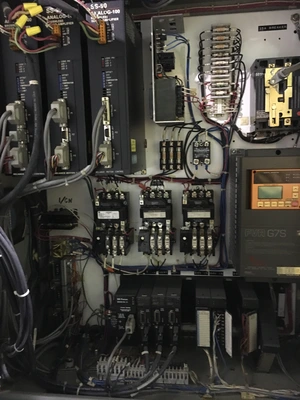

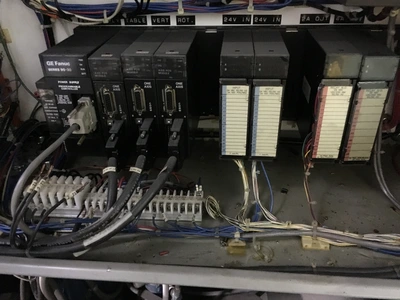

Control: Fanuc Series 90-30 PLC
Maximum Hob Diameter: 12.00 in 304.80 mm
Maximum Hob Length: 24.00 in 609.60 mm
Z Roughing Feed: Infinitely Variable
Z Finishing Feed: Infinitely Variable
Rotary A Index Spacing: MIN. .0050
Rotary A Index Speed: Infinitely Variable
Smallest Resolution Angular: 0.005

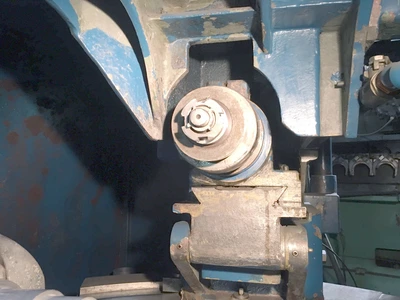

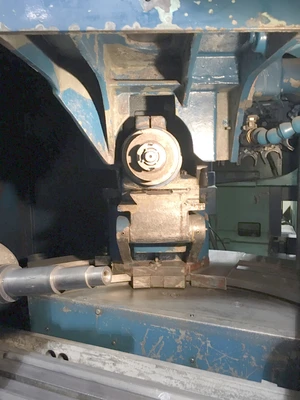

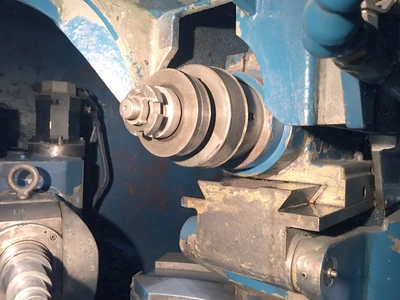

Grinding Sheel Diameter Maximum: 8.00 in 203.20 mm
Grinding Wheel Hole Diameter: 1.25 - 2.00 in 31.75 - 50.80 mm
Grinding Wheel Width: 1.00 in 25.40 mm
Grinding Wheel Speed: 3000 RPM maximum, infinitely variable

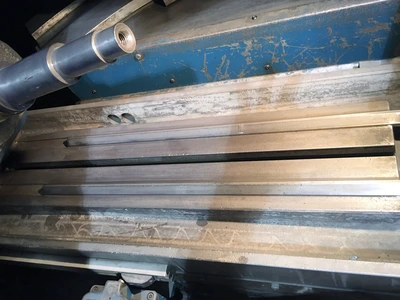

Ways: Cast Iron
Way Covers: Bellows Neoprene
Filtration System: Yes
Sludge Con: None
Coolant: Yes
Power: Existing

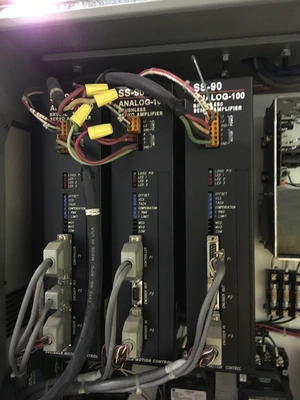

Additional: New CNC controls added 1993, Heidenhain scale or Y-vertical, ball screw on X-axis
Machine Length: 114.00 in 2895.60 mm
Machine Width: 72.00 in 1828.80 mm
Machine Height: 80.00 in 2032.00 mm
