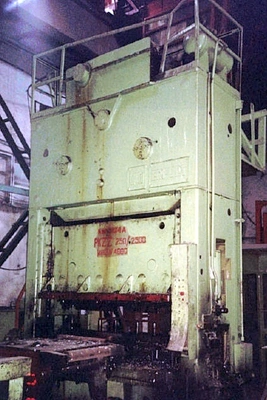

USED 1982 ERFURT PKZZ-250T

Capacity: 250/275 ton 2500/2750 kN
Speed: 12 SPM Continuous
Ram / Slide Stroke: 16.00 in 400.00 mm
Ram / Slide Adjustment: 5.00 in 120.00 mm
Drawing Depth: 6.30 in 160.00 mm
Distance Between Columns: 99.41 in 2525.00 mm
Table Width: 98.43 in 2500.00 mm
Table Depth: 55.12 in 1400.00 mm
Window in Table Width: 90.55 in 2300.00 mm
Window in Table Depth: 33.46 in 850.00 mm
Bolster Thickness: 5.51 in 140.00 mm
Power: Existing
Additional: Force of slide 110 / 121 ton, maximum height of die 23 inches (580 mm)
