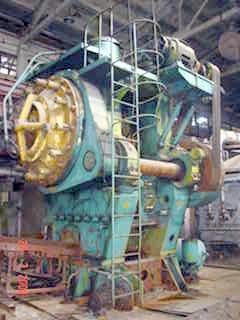

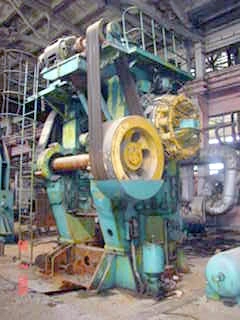

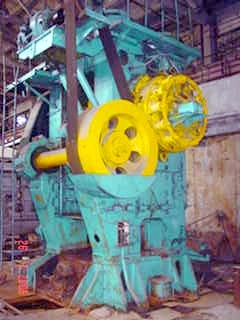

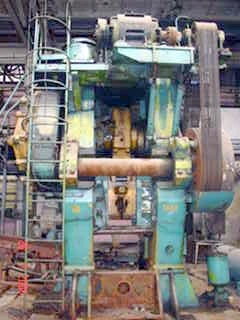

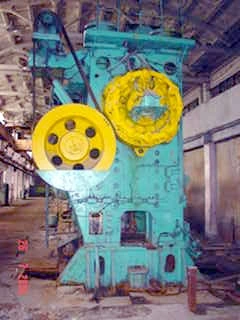

USED 1973 VORONEZH K8542 HOT FORGING PRESS

Capacity: 1600 / 1760 ton 15940 / 17540 kN
Speed: 85 SPM Continuous
Ram / Slide Stroke: 12.00 in 300.00 mm
Ram / Slide Adjustment: 0.40 in 10.00 mm
Stroke of Upper Knockout: 2.00 in 50.00 mm
Stroke of Lower Knockout: 2.00 in 50.00 mm
Ram / Slide Width: 33.50 in 850.00 mm
Ram / Slide Height: 36.00 in 910.00 mm
Bed Width: 37.00 in 940.00 mm
Bed Depth: 47.00 in 1200.00 mm
Power: Existing
Additional: Height shown is above floor level, distance between table and bolster plate 26 in ( 660 mm)Note: Table / Wedge Assembly not Installed on This Machine
Machine Length: 139.00 in 3515.00 mm
Machine Width: 191.00 in 4850.00 mm
Machine Height: 220.00 in 5570.00 mm
