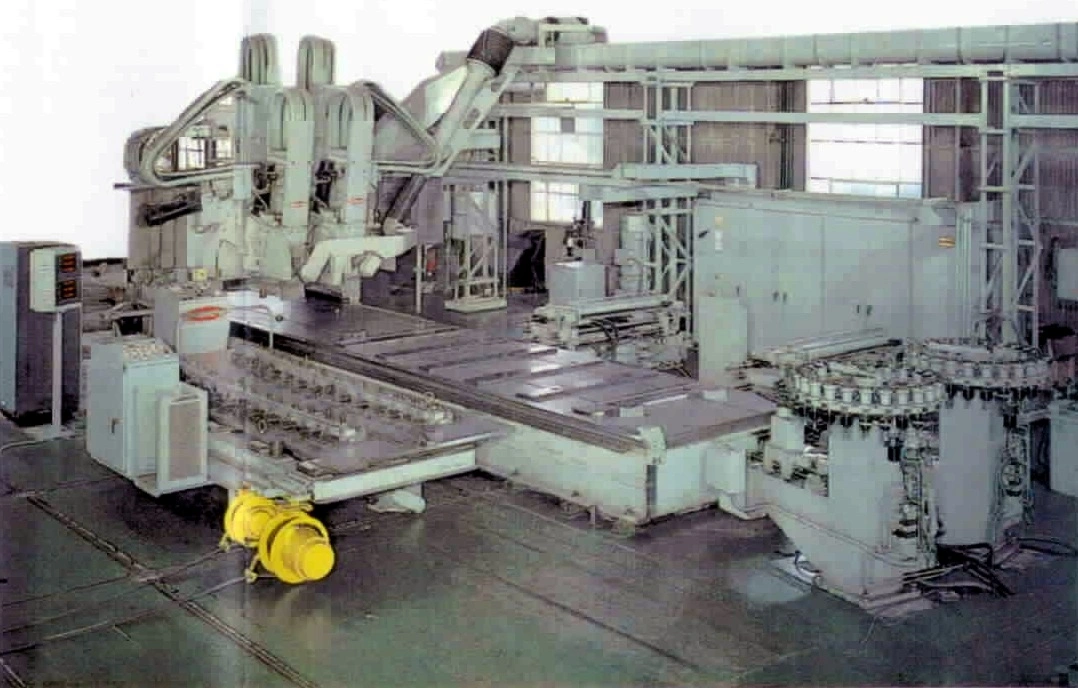

USED 1981 TOSHIBA MFG-16120 5 AXIS GANTRY PROFILER

Control: New Siemens or Fanuc 18imb CNC Customer Choice
X - Gantry Travel: 634 + ATC 47 in 16100 + ATC 1200 mm
Y - Saddle: 73.00 in 1854.20 mm
Z – Spindle Travel: 20.00 in 508.00 mm
W – Crossrail Travel: Fixed Crossrail
Distance Between Columns: 71.00 in 1803.4 mm
Distance from Spindle to Table: 4 - 24 in 100 - 600 mm
Spindle Power: 20.00 HP 15.00 kW
Spindle Speed: 9000 RPM
Spindle Taper: MAS BT 50
Head 2: With A Swivel Axis and B Tilt Axis
Power: 3 PH/50-60 Hz / 200-380-440 V
Additional: A axis swivel (left to right) +/- 30 degrees, b axis tilt (front to back) +/- 30 degrees, optional: other head models available, optional tool changers: 2 independant units 24 tools each, rapid travel rate x axis 394 in/min (10000 mm/min), rapid travel rate y / z axis 197 in/min (5000 mm/min), rapid travel rate a / b axis 180 deg / min, table length can be increased up to 152 ft (50 meters), distance between heads on rail 31.5 in (800 mm)
