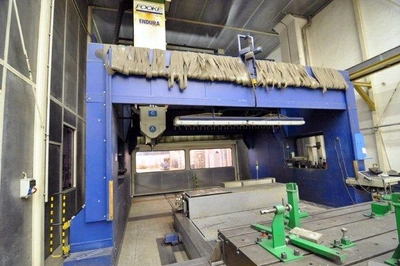

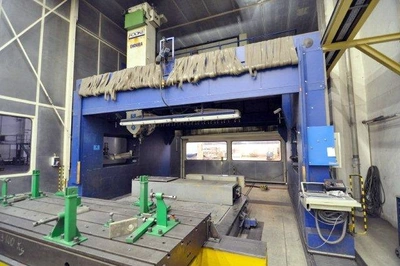

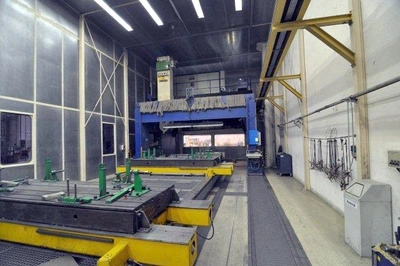

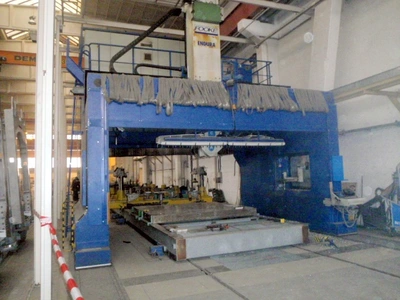

USED 1997 FOOKE ENDURA

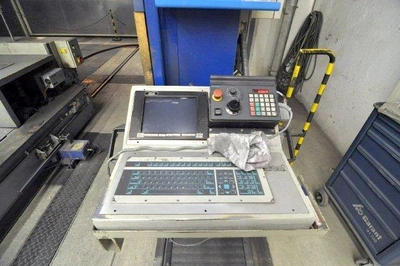

Control: Siemens 840CNC
X - Gantry Travel: 1614.17 in 41000 mm
Y - Saddle: 161.42 in 4100 mm
Z – Spindle Travel: 62.99 in 1600 mm
Distance Between Columns: 216.54 in 5500 mm
Rapid Travel Speed: 1574.80 in/min 40 m/min
Minimum Distance from Spindle to Floor: 13.78 in 350 mm
Maximum Distance from Spindle to Floor: 76.77 in 1950 mm
Spindle Power: 56 hp 42 kW
Spindle Speed: 100 – 16000 RPM (Infinitely Variable)

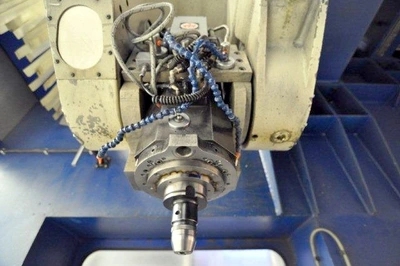

Spindle Taper: HSK 100
Spindle Drawbar: Power Pull Stud

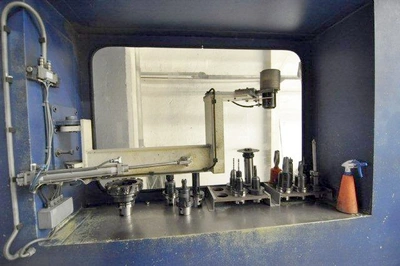

Tool Changer: Yes – 16 Station
Ways: Hardened Linear Ways

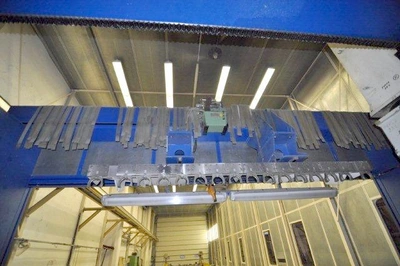

Way Covers: Rail way covers are bellows neoprene, collumn way covers are segmented metal roll-up
Chip Conveyor: Yes
Coolant: Yes
Power: 3 ph / 50-60 Hz / 200 – 600 V as needed

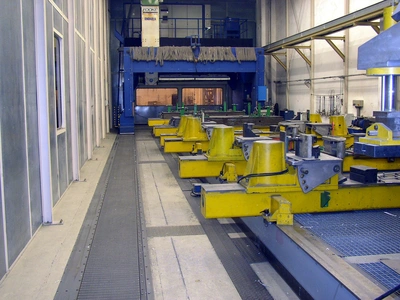

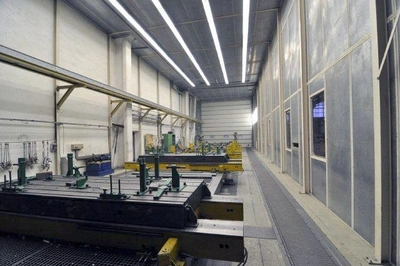

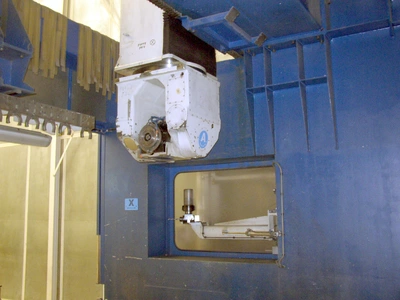

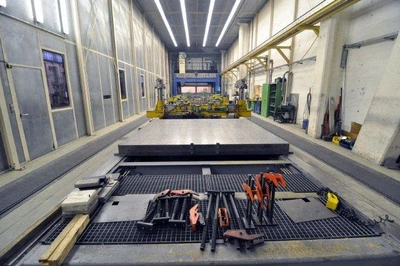

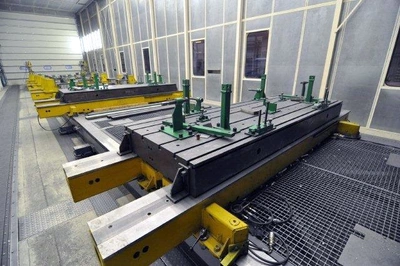

Special Features: 2 – 28 meter long automatic clamping pallet shuttles,inclinable spindle A – axis +/- 100 degrees, spindlerotation C – axis 360 degrees, selection of toolholders,manuals, optional floor plates instead of pallet tables
Machine Width: 262.99 in 6680 mm
Machine Height: 261.81 in 6650 mm
