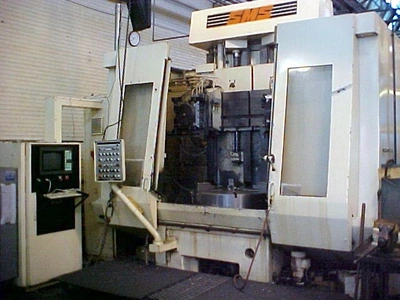

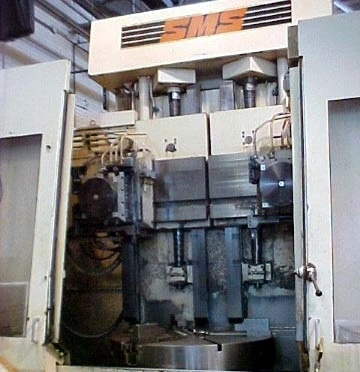

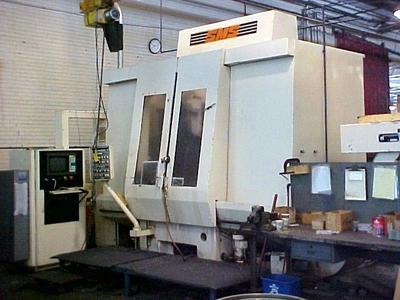

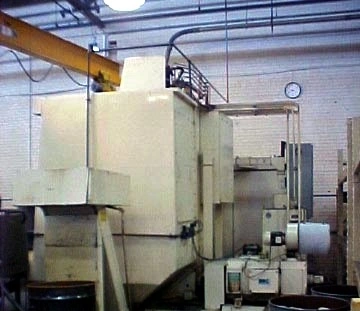

USED SMS V1000 CNC 4-AXIS VERTICAL TURNING CENTER

Table Diameter: 40.00 in 1016.00 mm
Swing: 45.00 in 1143.00 mm
Table Speed: 2 - 1120 RPM Infinitely Variable
Motor Power: 100.00 HP 75.00 kW
Chuck Type: Adjustable Force Power Chuck
X – Horizontal Saddle Travel: 20.25 in 514.35 mm
Head 1 Type: Turret
Number of Sides on Turret: 4
Number of Index Positions: 4
X2 – Horizontal Saddle Travel: 20.25 in 514.35 mm
Location: Right Hand
Head 2 Type: Turret
Location: Left Hand
Turret Number of Sides: 4
Number of Index Positions: 4
Z – Vertical Slide Travel: 31.50 in 800.1 mm
Z2 – Vertical Slide Travel: 31.50 in 800.1 mm
Power: Existing
Additional: Turning diameter can be increased to 60 in (1525 mm), spindle diameter 11.25 in (286 mm), spindle nose 15"-a2
Machine Length: 276.00 in 7010.40 mm
Machine Width: 204.00 in 5181.60 mm
Machine Height: 144.00 in 3657.60 mm
