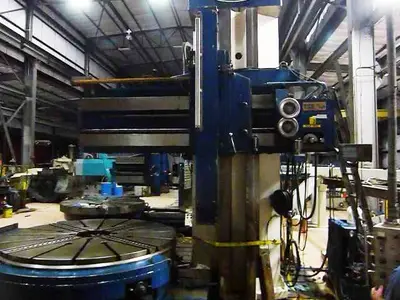

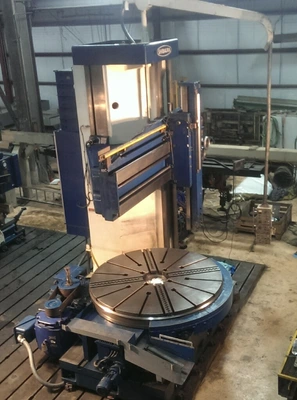

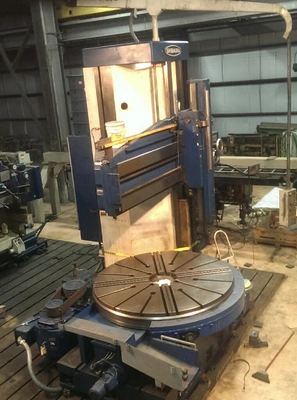

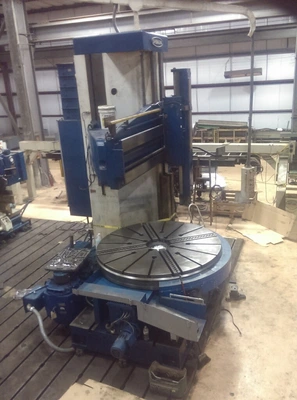

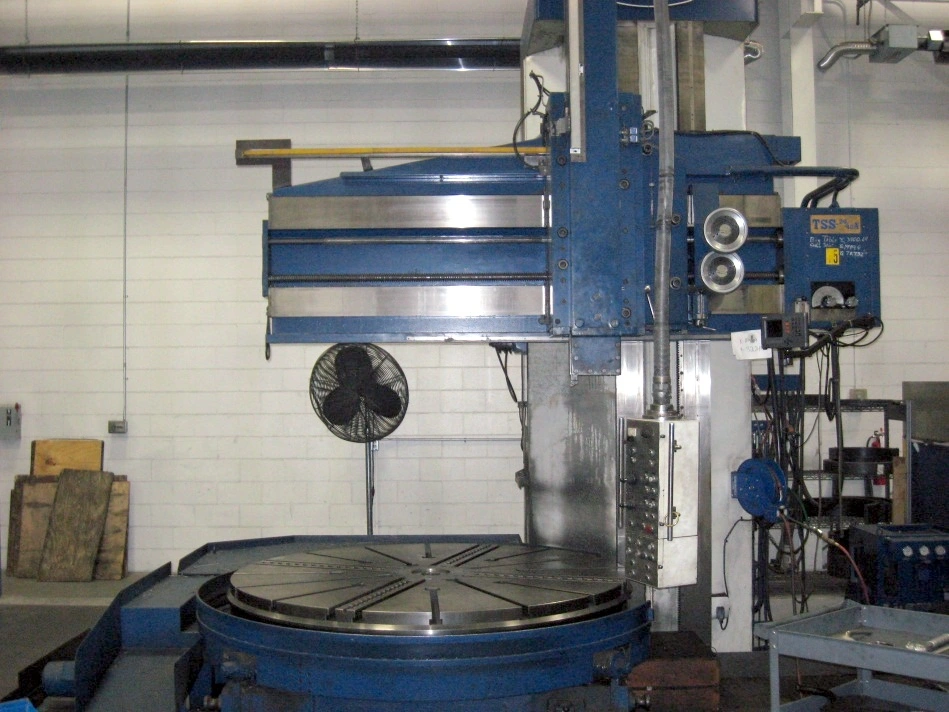

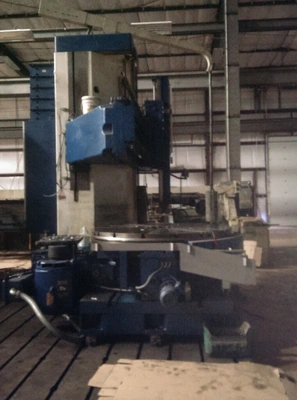

USED 1976 TOSHIBA SHIBAURA TSS 20/40 A SINGLE COLUMN
Specs
Control: Manual Pendant
Table Diameter: 78.70 in 1998.98 mm
Swing: 157.00 in 3987.8 mm
Height Under Rail: 70.50 in 1790.7 mm
Table Speed: 25 – 80 RPM, 16 Steps
Table Capacity: lbs 0 kg
Motor Power: 50.00 HP 37.28 kW
Chuck Type: Faceplate
Jaw System: Independent
Number of Jaws: 4
Hard Jaws: Yes
X – Horizontal Saddle Travel: 70.10 in 1780.54 mm
Rapid Travel Speed: 61.40 in/min 1559.56 mm/min
Head 1 Type: Ram
Feed Range: .0315 – 39.4 in/min / .8 – 1000 mm/min / 32 steps
Location: Crossrail
Rail Positioning: Acme Screw
Additional: Optional sub-tables may be used for larger work surfaces
Machine Length: 264.00 in 6705.6 mm
Machine Width: 205.00 in 5207 mm
Machine Height: 244.00 in 6197.6 mm
