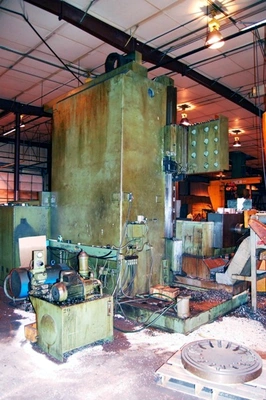

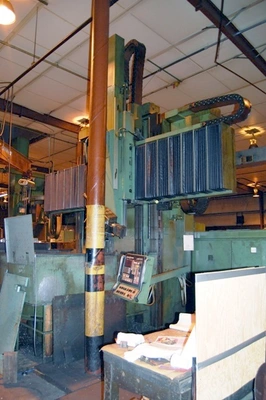

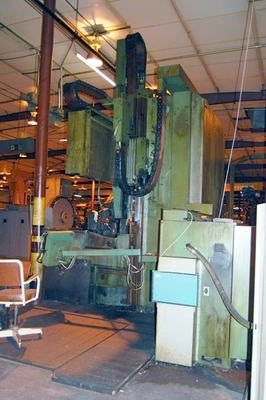

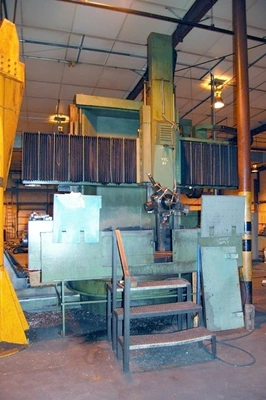

USED 1980 MORANDO 170 CNC VTL
Specs
Table Diameter: 70.75 in 1797.05 mm
Swing: 77.00 in 1955.80 mm
Height Under Rail: 67.00 in 1701.80 mm
Table Speed: 1 - 200 RPM Infinitely Variable
Motor Power: 80.00 HP 60.00 kW
Chuck Type: Manual
Jaw System: Independent Bolt On Top Jaws
Number of Jaws: 4
Number of Sides on Turret: 5
Location: Rail Mounted
Rail Positioning: Locating Pins, 7 Locations by CNC
Ways: Hardened and Ground Replaceable Rail and Ram Ways
Way Covers: Bellows Neoprene on Rail
Coolant: Yes
Chip Conveyor: Yes - Jorgensen
Power: 3 Ph / 60 Hz / 370 - 440 V Existing
Additional: New Fanuc servo motors and drives, new Siemens spindle drive, auto lubrication system, free standing hydraulic system, acme rail elevation screws, 3 table speed ranges, air conditioned cabinet
